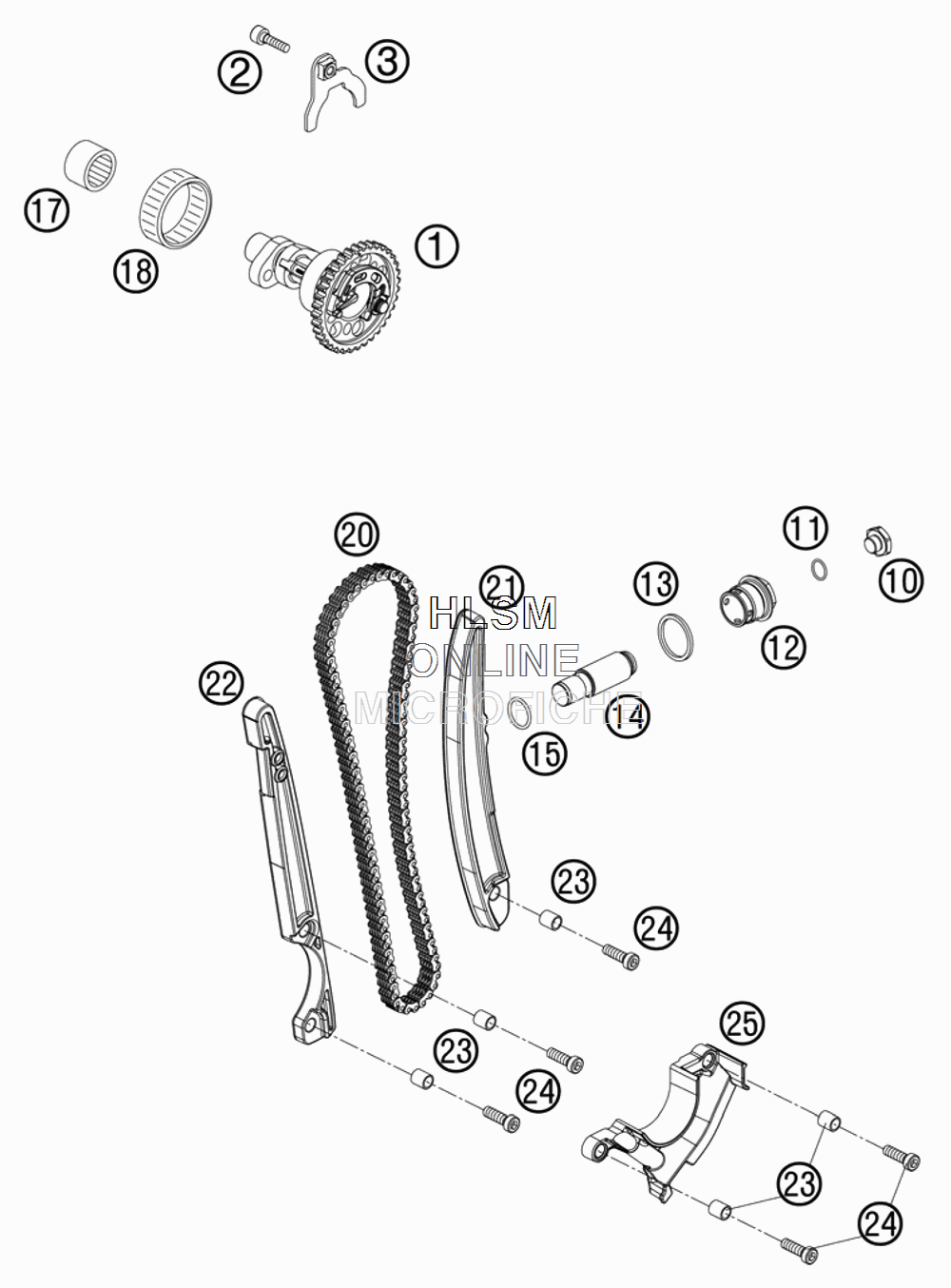

TIMING DRIVE для Ktm 450 XC-W - 2010 года выпуска`
-
№АртикулНазвание
-
178036010333 CAMSHAFT W. AUTODECOCAMSHAFT W. AUTODECO
-
20912060208 AH SCREW DIN0912-M 6X20 SSAH SCREW DIN0912-M 6X20 SS
-
378036012033 RETAINING PLATE CAMSHAFT CPL.RETAINING PLATE CAMSHAFT CPL.
-
1077336008010 HOLDING BOLTHOLDING BOLT
-
110770010010 O-RING 10,00X1,00 NBR 70 SHO-RING 10,00X1,00 NBR 70 SH
-
1278036008000 CHAIN ADJUSTER HOLDING BOLTCHAIN ADJUSTER HOLDING BOLT
-
130603242920 CU SEAL-RING DIN7603 A24X29X2CU SEAL-RING DIN7603 A24X29X2
-
1477036003000 CHAIN ADJUSTER HYD.CHAIN ADJUSTER HYD.
-
150770180020 O-RING 18,00X2,00 NBR 70O-RING 18,00X2,00 NBR 70
-
170618182414 NEEDLE SLEEVE HK1814RS18/24/14NEEDLE SLEEVE HK1814RS18/24/14
-
180618404712 NEEDLE SLEEVE HK4012B40X47X12NEEDLE SLEEVE HK4012B40X47X12
-
2078036013000 TIMING CHAIN 110TTIMING CHAIN 110T
-
2178036002000 TENSIONER RAILTENSIONER RAIL
-
2278036001000 GUIDE RAILGUIDE RAIL
-
2377036001050 SPACER BUSHING 6.1X8.2X9.1SPACER BUSHING 6.1X8.2X9.1
-
240984060203 AH SCREW DIN6912-M 6X20 8.8AH SCREW DIN6912-M 6X20 8.8
-
2578036005100 FAILURE PROTECTIONFAILURE PROTECTION
