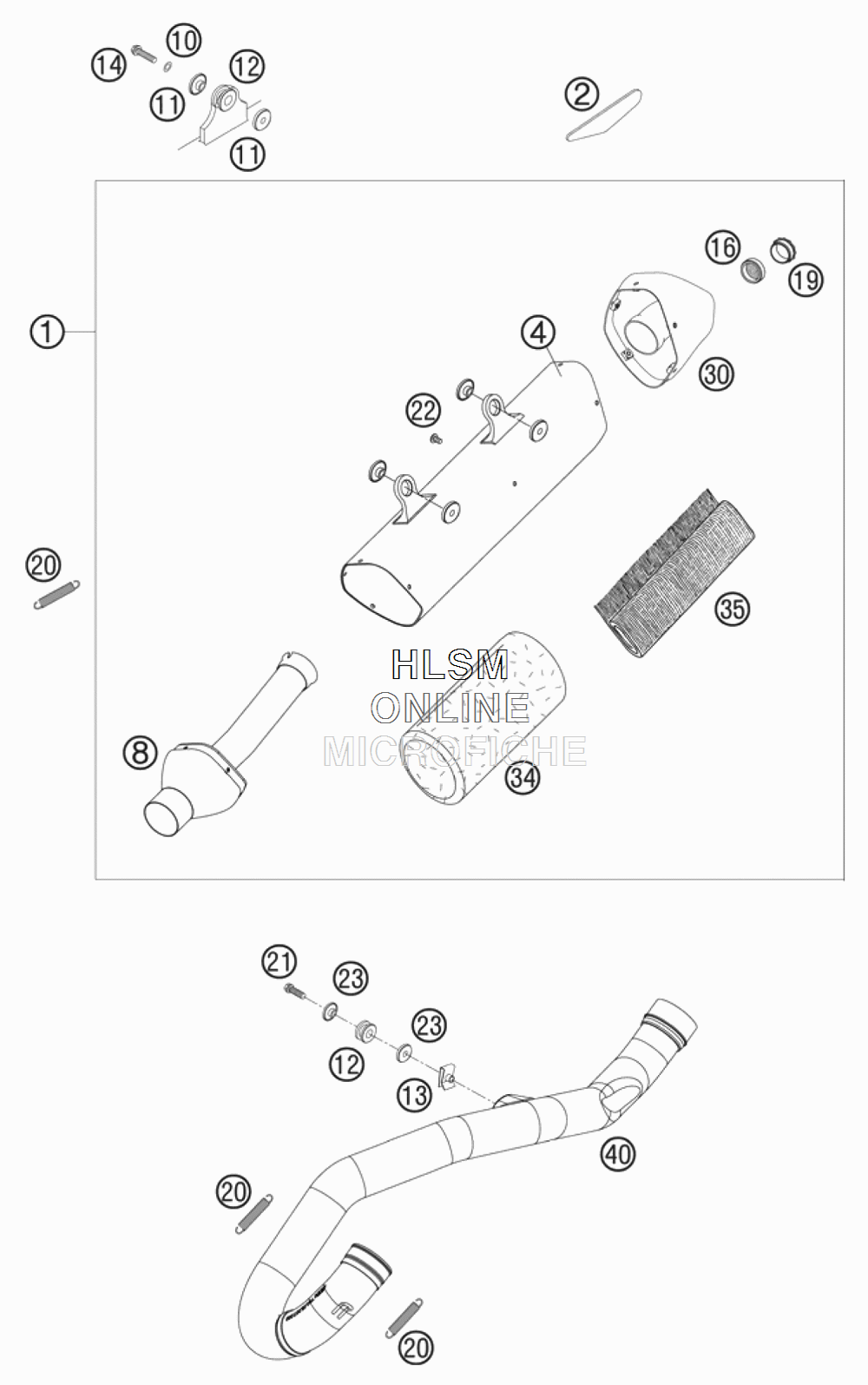

EXHAUST SYSTEM для Ktm 450 XC-W - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    78005082000 EXHAUST SILENCER SPARKY XCF-W
    EXHAUST SILENCER SPARKY XCF-W
  • 2
    77308013050 THERMAL PROTECTION FOIL
    THERMAL PROTECTION FOIL
  • 4
    78005082050 SILENCER HOUSING XC-F USA
    SILENCER HOUSING XC-F USA
  • 8
    77005081009 SIL. CONNECT. CAP CPL.EXC-F
    SIL. CONNECT. CAP CPL.EXC-F
  • 10
    0137060003 SPRING WASHER DIN0137-B 6
    SPRING WASHER DIN0137-B 6
  • 11
    77305069000 BUSHING 7.5X12X28X7.6
    BUSHING 7.5X12X28X7.6
  • 12
    54605068000 EXHAUST BRACKET RUBBER BLACK
    EXHAUST BRACKET RUBBER BLACK
  • 13
    54603048000 RANGE CHANGE METAL NUT M8
    RANGE CHANGE METAL NUT M8
  • 14
    0025060306 HH COLLAR SCREW M6X30 TX30
    HH COLLAR SCREW M6X30 TX30
  • 16
    77005081065 THROTTLE ELEMENT CPL.
    THROTTLE ELEMENT CPL.
  • 19
    77005081055 SIL. ELEMENT EXC-F
    SIL. ELEMENT EXC-F
  • 20
    50305016000 TEN.SPRING L=62MM EY.MOVEABLE
    TEN.SPRING L=62MM EY.MOVEABLE
  • 21
    0025080256 HH COLLAR SCREW M8X25 TX40
    HH COLLAR SCREW M8X25 TX40
  • 22
    58605083010 SCREW TORX M5X10
    SCREW TORX M5X10
  • 23
    59405069000 BUSHING FOR EXHAUST SUPPORT
    BUSHING FOR EXHAUST SUPPORT
  • 30
    83005082070 ENDCAP SPARKY
    ENDCAP SPARKY
  • 34
    77005078315 STUFFINGYARN 315 GRAMS
    STUFFINGYARN 315 GRAMS
  • 35
    77005081016 STUFFING YARN
    STUFFING YARN
  • 40
    78005007000 EXHAUST PIPE
    EXHAUST PIPE
