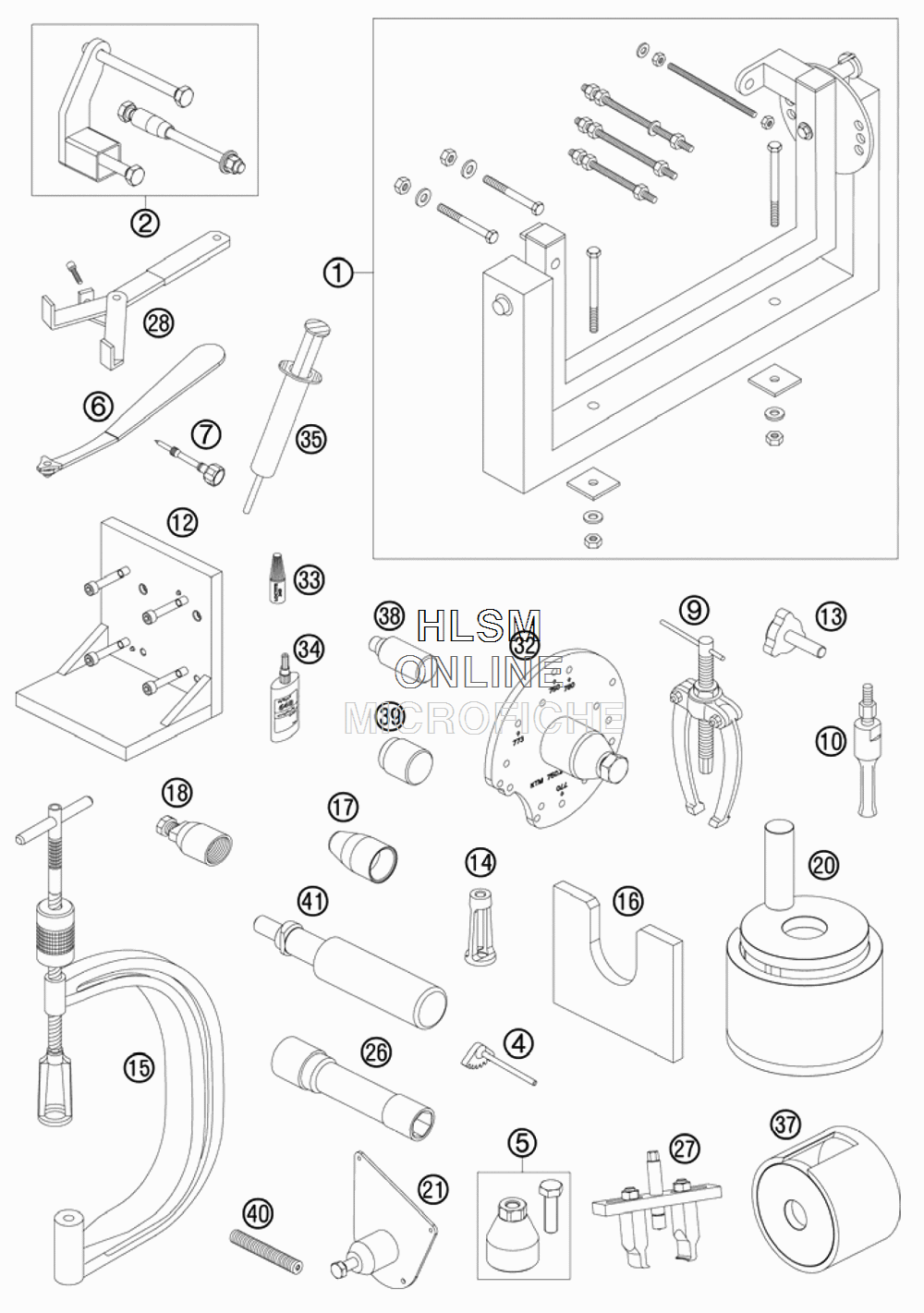

SPECIAL TOOLS для Ktm 450 XC-W - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    56012001000 ASSY SUPPORT (WITHOUT HOLDER)
    ASSY SUPPORT (WITHOUT HOLDER)
  • 2
    78029002000 SUPPORT CPL.
    SUPPORT CPL.
  • 4
    80029004000 GEAR SEGMENT CPL.
    GEAR SEGMENT CPL.
  • 5
    75029021000 EXTRACTOR PRIM. CPL.
    EXTRACTOR PRIM. CPL.
  • 6
    77329034000 WRENCH F.MIXTURE CONTROL SCREW
    WRENCH F.MIXTURE CONTROL SCREW
  • 7
    59031017200 MIXT. CONTROL SCREW FACTORY
    MIXT. CONTROL SCREW FACTORY
  • 9
    15112017000 BUSHING EXTRACTOR
    BUSHING EXTRACTOR
  • 10
    15112018100 INTERN.BEAR.PULLER 18-23 MM
    INTERN.BEAR.PULLER 18-23 MM
  • 10
    60029018000 INTERN.BEAR.PULLER 28 MM
    INTERN.BEAR.PULLER 28 MM
  • 12
    75029050000 ON TENSIONER PL. CYLINDER HEAD
    ON TENSIONER PL. CYLINDER HEAD
  • 13
    75029051000 PRESS OUT PUNCH CPL.
    PRESS OUT PUNCH CPL.
  • 14
    78029060000 VALVE SPRING TENSION APPLICAT.
    VALVE SPRING TENSION APPLICAT.
  • 15
    59029019000 VALVE SPRING LEVER
    VALVE SPRING LEVER
  • 16
    78029009000 SEPARATOR PLATE CRANKSHAFT
    SEPARATOR PLATE CRANKSHAFT
  • 17
    78029005000 MOUNTING SLEEVE SSR CS
    MOUNTING SLEEVE SSR CS
  • 18
    58012009000 FLYWHEEL EXTRACTOR
    FLYWHEEL EXTRACTOR
  • 20
    75029047000 PRESS. TOOL F. CRANKS. CPL.
    PRESS. TOOL F. CRANKS. CPL.
  • 21
    78029049100 PRESS OUT PLATE CS CPL.
    PRESS OUT PLATE CS CPL.
  • 26
    75029172000 SPARK PLUG WRENCH
    SPARK PLUG WRENCH
  • 27
    78029033100 PULLER
    PULLER
  • 28
    51129003000 CLUTCH HOLDER
    CLUTCH HOLDER
  • 32
    75029048000 CASING DISMOUNTING TOOL
    CASING DISMOUNTING TOOL
  • 33
    6899785 LOCTITE 243 BLUE 6CCM
    LOCTITE 243 BLUE 6CCM
  • 34
    58429059000 LOCTITE 648 GREEN 24ML
    LOCTITE 648 GREEN 24ML
  • 35
    58429059200 LOCTITE 5910 50ML
    LOCTITE 5910 50ML
  • 37
    78029008000 PRESS. TOOL F. CRANKSHAFT
    PRESS. TOOL F. CRANKSHAFT
  • 38
    75029044020 PRESS PUNCH CAMSHAFT BEAR. SM.
    PRESS PUNCH CAMSHAFT BEAR. SM.
  • 39
    75029044010 PRESS PUNCH CAMSH. BEAR. LARGE
    PRESS PUNCH CAMSH. BEAR. LARGE
  • 40
    0113080802 ENGINE BLOCKING SCREW
    ENGINE BLOCKING SCREW
  • 41
    77329030100 PLUG IN FUSE PISTON PIN
    PLUG IN FUSE PISTON PIN
