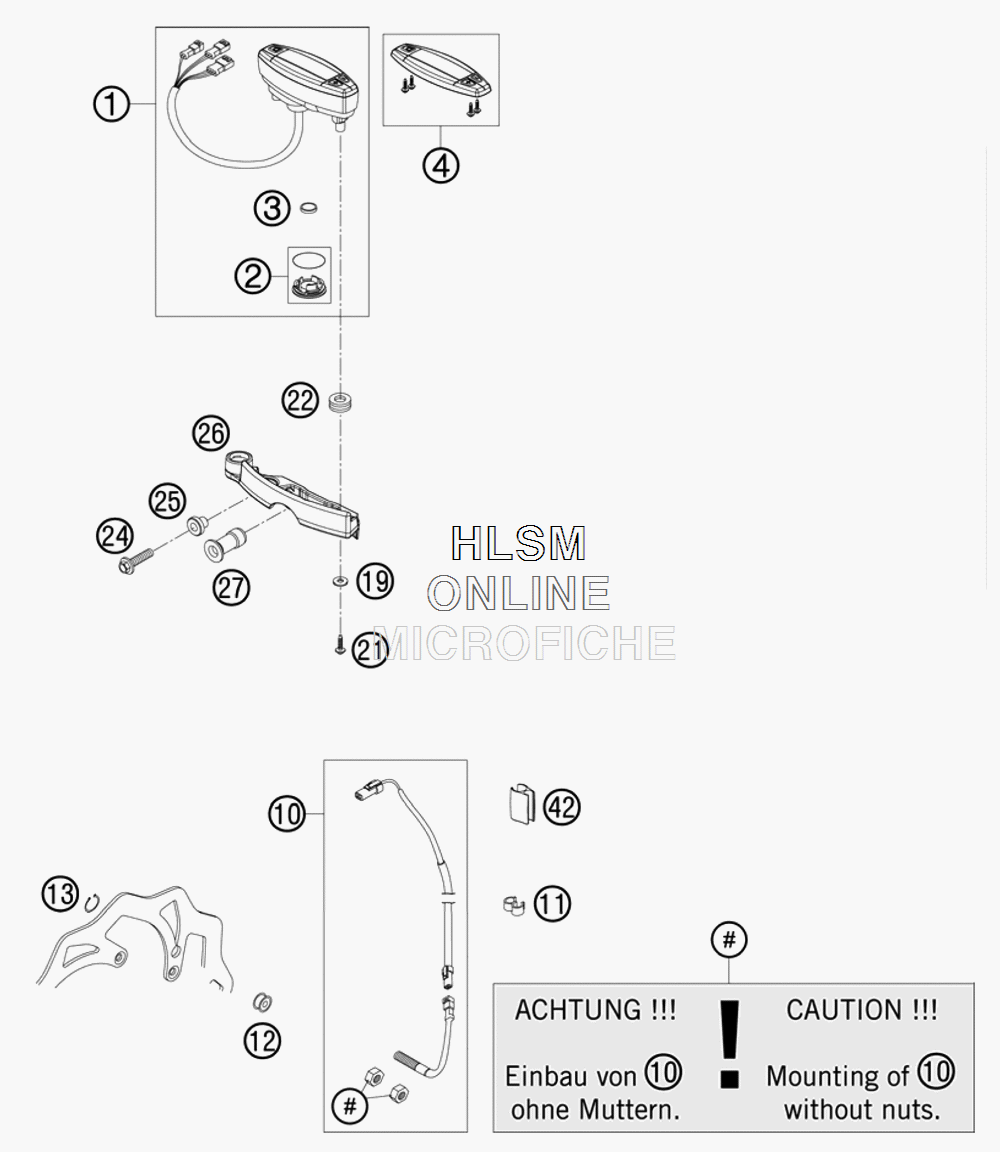

INSTRUMENTS / LOCK SYSTEM для Ktm 300 XC-W - 2010 года выпуска`
-
№АртикулНазвание
-
154814069100 SPEEDOMETER MPH F. 21"SPEEDOMETER MPH F. 21"
-
254814069010 REPROGRAMMABLE: MPH - KM/H BATTERY COVER F. SPEEDOM.REPROGRAMMABLE: MPH - KM/H BATTERY COVER F. SPEEDOM.
-
358314068000 BATTERY F. SPEEDOM. M.A.E. 02BATTERY F. SPEEDOM. M.A.E. 02
-
454814069020 SPEEDOMETER TOP PARTSPEEDOMETER TOP PART
-
1054814068100 CABLE FOR DIGITAL SPEEDOM.CABLE FOR DIGITAL SPEEDOM.
-
1155011022100 CLAMP D=6/8MM, BLACKCLAMP D=6/8MM, BLACK
-
1254814069050 MAGNET FOR DIGITAL SPEEDOM.MAGNET FOR DIGITAL SPEEDOM.
-
13471009104 CIRCLIP DIN0471- 9X1 INOXCIRCLIP DIN0471- 9X1 INOX
-
190021050003 WASHER DIN9021-A 5,3WASHER DIN9021-A 5,3
-
210081050121 SCREW FOR PLASTIC K50X12 T20SCREW FOR PLASTIC K50X12 T20
-
2258214069051 RUBBER GROMMET 16X10,8X3RUBBER GROMMET 16X10,8X3
-
240024060206 HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
2559030060050 BUSHING F. SPROCKET COVER RAC.BUSHING F. SPROCKET COVER RAC.
-
2654814060100 SPEEDOMETER BRACKET XC-WSPEEDOMETER BRACKET XC-W
-
2754814060051 SPACER TUBE SPEEDOM. XC-WSPACER TUBE SPEEDOM. XC-W
-
4254813026000 CABLE SUPPORT 10/6MMCABLE SUPPORT 10/6MM
