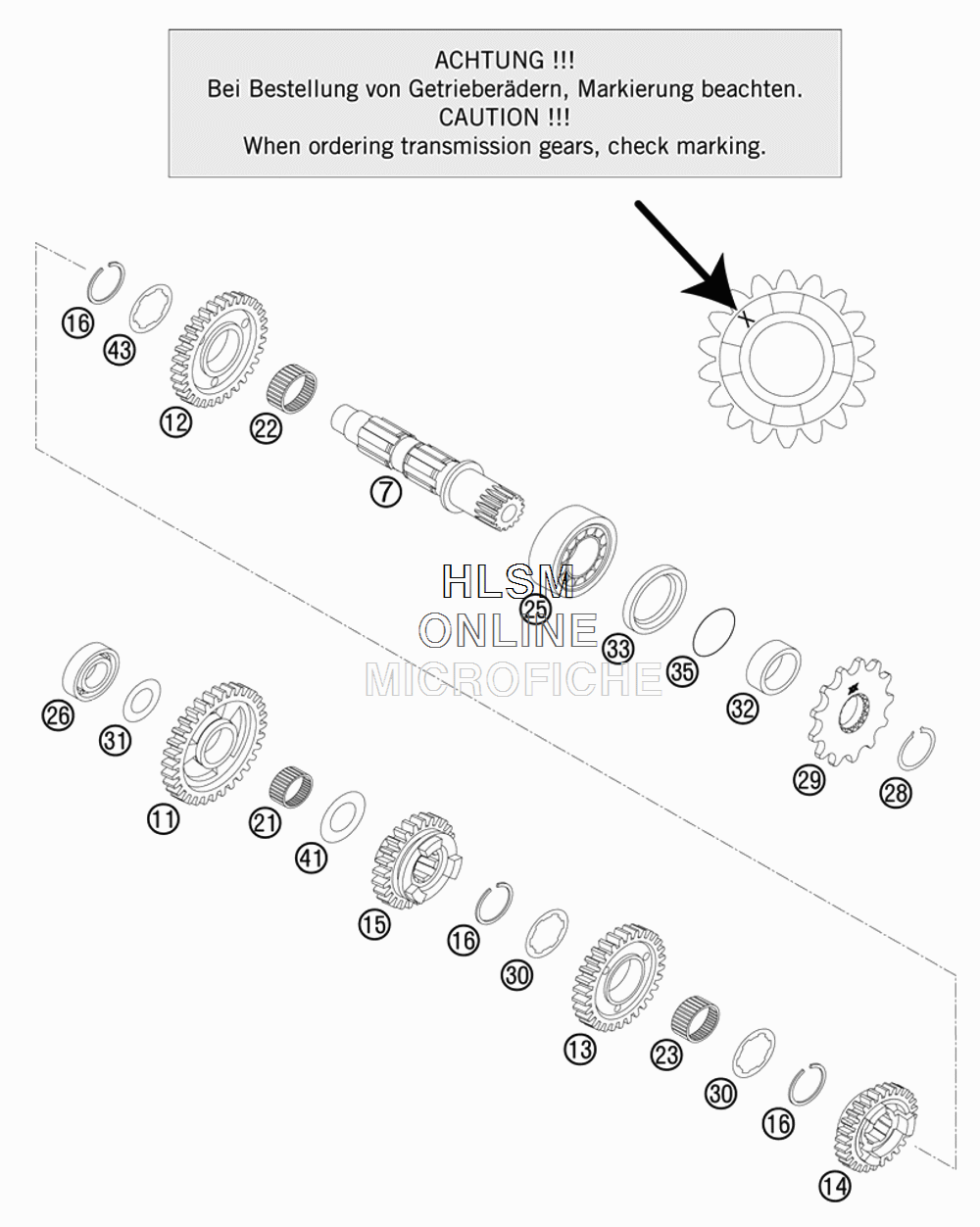

TRANSMISSION II - COUNTERSHAFT для Ktm 300 XC-W - 2010 года выпуска

  • №
    Артикул
    Название
  • 7
    54833007000 COUNTERSHAFT
    COUNTERSHAFT
  • 11
    54833111000 IDLER GEAR 1ST G. 30-T "1E30"
    IDLER GEAR 1ST G. 30-T "1E30"
  • 12
    54833112000 IDLER GEAR 2ND G. 26-T "2E26"
    IDLER GEAR 2ND G. 26-T "2E26"
  • 13
    54833113000 IDLER GEAR 3RD G. 23-T "3E23"
    IDLER GEAR 3RD G. 23-T "3E23"
  • 14
    54833114000 SLIDING GEAR 4TH G.20-T "4E20"
    SLIDING GEAR 4TH G.20-T "4E20"
  • 15
    54833115000 SLIDING GEAR 5TH G.23-T "5E23"
    SLIDING GEAR 5TH G.23-T "5E23"
  • 16
    77033022000 AXIAL-CIRCLIP 25X1,65
    AXIAL-CIRCLIP 25X1,65
  • 21
    405202413 NEEDLE BEAR. K20X24X13
    NEEDLE BEAR. K20X24X13
  • 22
    405242812 NEDDLE BEAR. K24X28X11,9 DIV.
    NEDDLE BEAR. K24X28X11,9 DIV.
  • 23
    405222613 NEEDLE BEAR. K 22X26X13 TN
    NEEDLE BEAR. K 22X26X13 TN
  • 25
    54833025000 BALL BEARING TM-SC05C20C4 NTN
    BALL BEARING TM-SC05C20C4 NTN
  • 26
    625062035 BALL BEARING 6203 JR2 C3
    BALL BEARING 6203 JR2 C3
  • 28
    52033096000 LOCK RING DIN0471-25X1,64SD
    LOCK RING DIN0471-25X1,64SD
  • 29
    50033029013 FRONT SPROCKET 13-T
    FRONT SPROCKET 13-T
  • 29
    50033029014 FRONT SPROCKET 14-T
    FRONT SPROCKET 14-T
  • 30
    59033030000 STOP DISC 25,2X32X1,5
    STOP DISC 25,2X32X1,5
  • 31
    56033030000 STOP DISC 17,2X30X1
    STOP DISC 17,2X30X1
  • 32
    54833032011 SPACER SLEEVE DRIVE END
    SPACER SLEEVE DRIVE END
  • 33
    760324565 SHAFT SEAL RING 32X45X6,5 BTSL
    SHAFT SEAL RING 32X45X6,5 BTSL
  • 35
    770250020 O-RING 25,00X2,00 NBR 70
    O-RING 25,00X2,00 NBR 70
  • 41
    59033080000 SHIM 20X32X1
    SHIM 20X32X1
  • 43
    50333043000 STOP DISC 25,2X32X1
    STOP DISC 25,2X32X1
