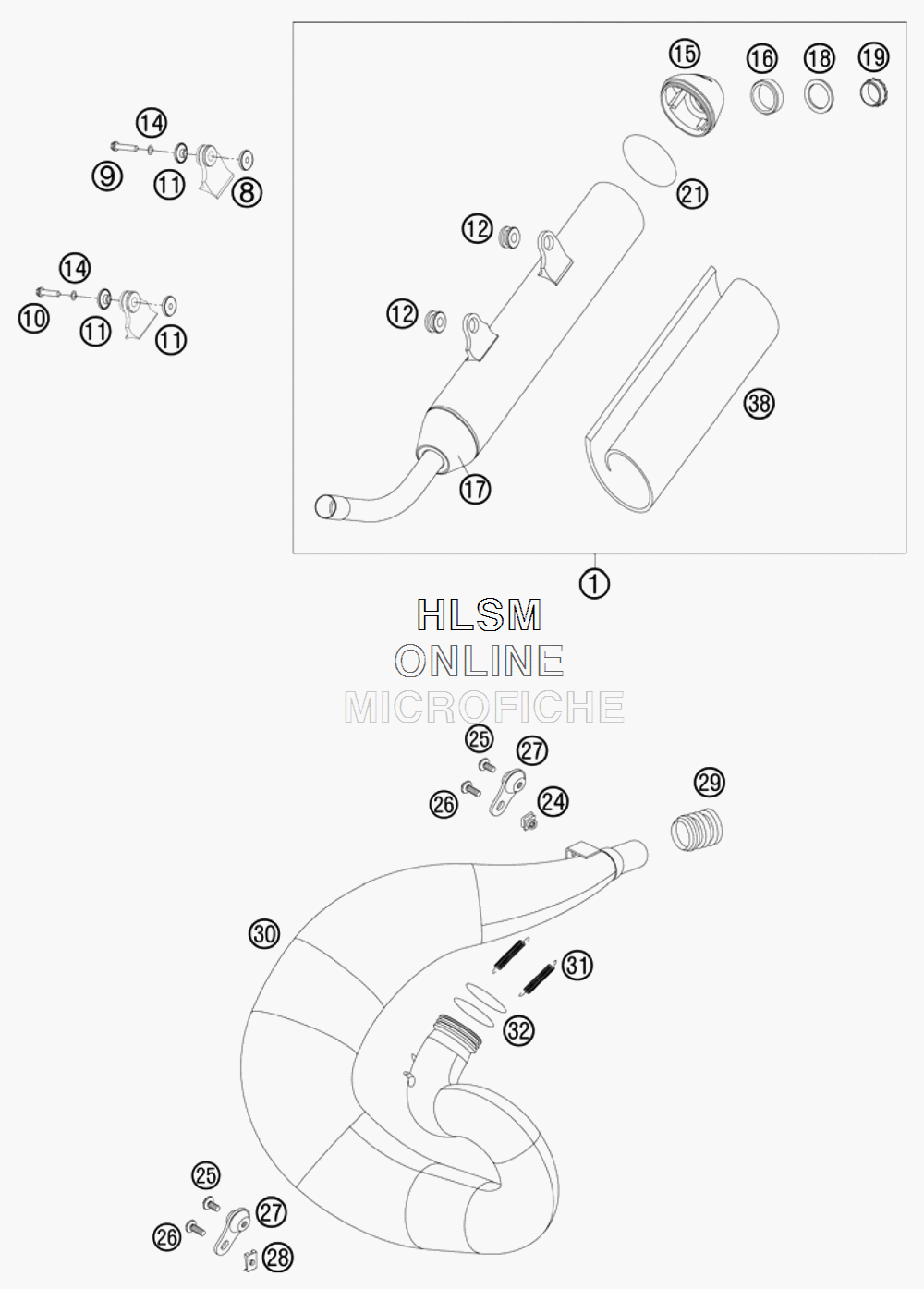

EXHAUST SYSTEM для Ktm 300 XC-W - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    54805083100 EXH. SILENCER CPL. EXC
    EXH. SILENCER CPL. EXC
  • 8
    59405169000 BUSHING SIL.-SMR REAR
    BUSHING SIL.-SMR REAR
  • 9
    25060356 HH COLLAR SCREW M6X35 TX30
    HH COLLAR SCREW M6X35 TX30
  • 10
    25060306 HH COLLAR SCREW M6X30 TX30
    HH COLLAR SCREW M6X30 TX30
  • 11
    77305069000 BUSHING 7.5X12X28X7.6
    BUSHING 7.5X12X28X7.6
  • 12
    54605068000 EXHAUST BRACKET RUBBER BLACK
    EXHAUST BRACKET RUBBER BLACK
  • 14
    137060003 SPRING WASHER DIN0137-B 6
    SPRING WASHER DIN0137-B 6
  • 15
    54805079052 SILENCER ENDCAP 2-STROKE
    SILENCER ENDCAP 2-STROKE
  • 16
    54805079150 SILCENCER RUBBER 2-STROKE
    SILCENCER RUBBER 2-STROKE
  • 17
    54805079060 SILENCER CONNECTING-CAP
    SILENCER CONNECTING-CAP
  • 18
    54805083060 SILENCER DISC
    SILENCER DISC
  • 19
    54805079058 SILENCER SCREW 2-STROKE
    SILENCER SCREW 2-STROKE
  • 21
    770055020 0-RING 55,00X2,00 NBR70
    0-RING 55,00X2,00 NBR70
  • 24
    50235033200 SNAP-NUT HOLDER M6 KP 134
    SNAP-NUT HOLDER M6 KP 134
  • 25
    24060106 HH COLLAR SCREW M6X10 TX30
    HH COLLAR SCREW M6X10 TX30
  • 26
    24060156 HH COLLAR SCREW M6X15 TX30
    HH COLLAR SCREW M6X15 TX30
  • 27
    50305012000 SWINGELEMENT FOR EXHAUST PIPE
    SWINGELEMENT FOR EXHAUST PIPE
  • 28
    54603048100 RANGE CHANGE METAL NUT M6
    RANGE CHANGE METAL NUT M6
  • 29
    54605157000 SILICON SLEEVE D=25/27MM
    SILICON SLEEVE D=25/27MM
  • 30*
    54805007300 EXHAUST MANIFOLD
    EXHAUST MANIFOLD
  • 31
    50305016000 TEN.SPRING L=62MM EY.MOVEABLE
    TEN.SPRING L=62MM EY.MOVEABLE
  • 32
    770440030 O-RING 44,00X3,00 VITON
    O-RING 44,00X3,00 VITON
  • 38
    54805078450 STUFFING YARN-SET 450 GRAM
    STUFFING YARN-SET 450 GRAM
