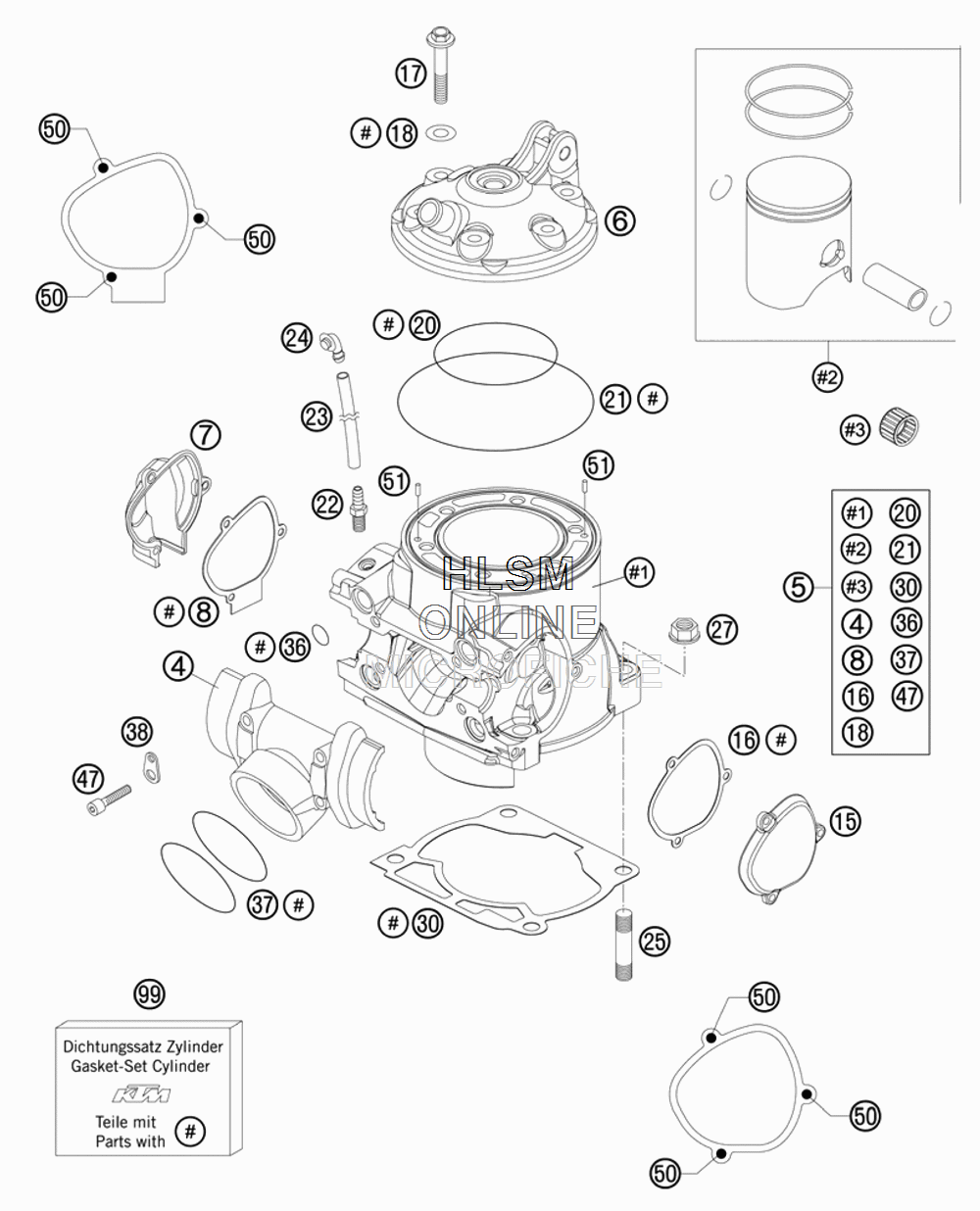

CYLINDER CYLINDER HEAD для Ktm 300 XC-W - 2010 года выпуска

  • №
    Артикул
    Название
  • 4
    54837001200 INTERMEDIATE FLANGE 250/300
    INTERMEDIATE FLANGE 250/300
  • 5
    50001300 CYL.+PISTON 300
    CYL.+PISTON 300
  • 6
    54830306500 CYLINDERHEAD 300 XC/EXC
    CYLINDERHEAD 300 XC/EXC
  • 7
    5483700700015 CONTROL COVER R/S
    CONTROL COVER R/S
  • 8
    54837008000 GASKET FOR CONTROL COVER R/S
    GASKET FOR CONTROL COVER R/S
  • 15
    5483700500015 CONTROL COVER L/S
    CONTROL COVER L/S
  • 16
    54837006000 GASKET FOR CONTROL COVER L/S
    GASKET FOR CONTROL COVER L/S
  • 17
    54830079000 COLLAR SCREW M 8X35 WS=13
    COLLAR SCREW M 8X35 WS=13
  • 18
    56530080000 CU-SEAL RING 8 X 16 X 1
    CU-SEAL RING 8 X 16 X 1
  • 20
    770078020 O-RING 78,00X2,00 VIT. BLACK
    O-RING 78,00X2,00 VIT. BLACK
  • 21
    770105020 O-RING 105,00X2,00
    O-RING 105,00X2,00
  • 22
    58336020090 VACUUM CONNECTION M 6X1
    VACUUM CONNECTION M 6X1
  • 23
    31007107001 PVC-HOSE 6X9 MM PER METER
    PVC-HOSE 6X9 MM PER METER
  • 24
    50303089000 ANGEL PIECE
    ANGEL PIECE
  • 25
    835100351 STUD DIN0835-M10X35
    STUD DIN0835-M10X35
  • 27
    54630044000 COLLAR NUT M10 WS=13
    COLLAR NUT M10 WS=13
  • 30
    54830030002 GASKET CYLINDER BASE 0,2MM
    GASKET CYLINDER BASE 0,2MM
  • 30
    54830030004 GASKET CYLINDER BASE 0,4MM
    GASKET CYLINDER BASE 0,4MM
  • 30
    54830030005 GASKET CYLINDER BASE 0,5MM
    GASKET CYLINDER BASE 0,5MM
  • 30
    54830030075 GASKET CYLINDER BASE 0,75MM
    GASKET CYLINDER BASE 0,75MM
  • 36
    770116241 O-RING 11,3 X2,4 SILICON
    O-RING 11,3 X2,4 SILICON
  • 37
    770440030 O-RING 44,00X3,00 VITON
    O-RING 44,00X3,00 VITON
  • 38
    51005074000 RETAINING PLATE
    RETAINING PLATE
  • 47
    912060303 AH SCREW DIN0912-M 6X30
    AH SCREW DIN0912-M 6X30
  • 50
    58605083014 SCREW M5X14 TORX 25 07
    SCREW M5X14 TORX 25 07
  • 51
    402040980 NEEDLE ROL.DIN5402 NRB 4X9,8
    NEEDLE ROL.DIN5402 NRB 4X9,8
  • 99
    54830097300 GASKET SET CYL. 300 EXC-E
    GASKET SET CYL. 300 EXC-E
