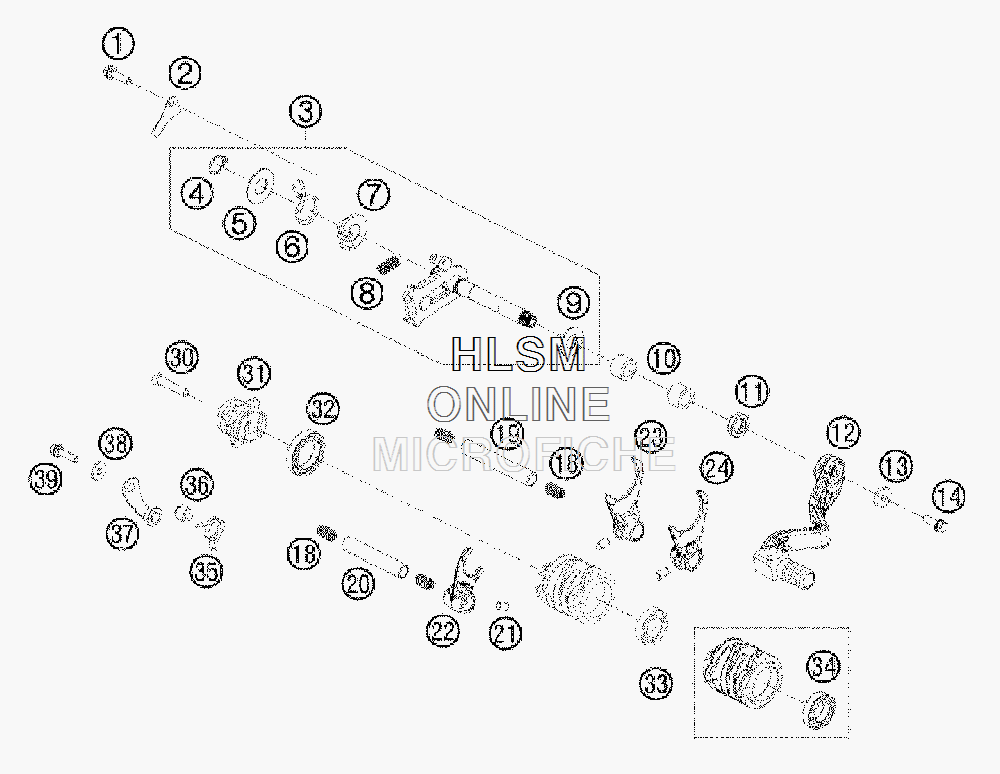

SHIFTING MECHANISM для Ktm 65 XC - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    0025050126 HH COLLAR SCREW M5X12
    HH COLLAR SCREW M5X12
  • 2
    46234005010 SHIFT SHAFTSPRING RETAIN.PLATE
    SHIFT SHAFTSPRING RETAIN.PLATE
  • 3
    46234005044 SHIFT SHAFT CPL.
    SHIFT SHAFT CPL.
  • 4
    0471140100 LOCK WASHER DIN0471-14X1
    LOCK WASHER DIN0471-14X1
  • 5
    54634050000 STOP DISK 14X30X1
    STOP DISK 14X30X1
  • 6
    54834014000 RETURN SPRING
    RETURN SPRING
  • 7
    54634020000 SPRING GUIDE
    SPRING GUIDE
  • 8
    56534013100 TENSIONING SPRING 0,8MM
    TENSIONING SPRING 0,8MM
  • 9
    49033013000 STOP DISK 12,1X25X1
    STOP DISK 12,1X25X1
  • 10
    46034027000 NEEDLE BEARING 12X18X12
    NEEDLE BEARING 12X18X12
  • 11
    0760122050 SHAFT SEAL RING 12X20X5 B
    SHAFT SEAL RING 12X20X5 B
  • 12
    46234031044 SHIFTING LEVER CPL.
    SHIFTING LEVER CPL.
  • 13
    50232050001 STEEL WASHER 6,4X17X3
    STEEL WASHER 6,4X17X3
  • 14
    59009062016 SPECIAL SCREW M6X16 WS=8 10.9
    SPECIAL SCREW M6X16 WS=8 10.9
  • 18
    58038023200 PRESSURE SPRING 0,9MM
    PRESSURE SPRING 0,9MM
  • 19
    46234019000 SHIFTING RAIL COUNTER SHAFT
    SHIFTING RAIL COUNTER SHAFT
  • 20
    46234020000 SHIFTING RAIL MAIN SHAFT
    SHIFTING RAIL MAIN SHAFT
  • 21
    0402061000 NEEDLE ROLLER ZRB 6X10
    NEEDLE ROLLER ZRB 6X10
  • 22
    46234001000 SHIFT FORK MAIN SHAFT
    SHIFT FORK MAIN SHAFT
  • 23
    46234002000 SHIFT FORK COUNTERSHAFT R/S
    SHIFT FORK COUNTERSHAFT R/S
  • 24
    46234003000 SHIFT FORK COUNTERSHAFT LL/S
    SHIFT FORK COUNTERSHAFT LL/S
  • 30
    0012060303 AH SCREW DIN6912 M6X30 8.8
    AH SCREW DIN6912 M6X30 8.8
  • 31
    46234015044 SHIFT DRUM LOCATING CPL.
    SHIFT DRUM LOCATING CPL.
  • 32
    0625068050 BALL BEARING 6805 C4 NTN JAPAN
    BALL BEARING 6805 C4 NTN JAPAN
  • 33
    46234012033 SHIFT ROLLER CPL.
    SHIFT ROLLER CPL.
  • 34
    0625069034 BALL BEARING 6903 C4
    BALL BEARING 6903 C4
  • 35
    54834023000 LOCKING LEVER SPRING
    LOCKING LEVER SPRING
  • 36
    54634052300 SLEEVE FOR LOCKING LEVER
    SLEEVE FOR LOCKING LEVER
  • 37
    50334024144 LOCATING LEVER CPL.
    LOCATING LEVER CPL.
  • 38
    0349000050 WASHER DIN7349-5X15X2
    WASHER DIN7349-5X15X2
  • 39
    0025050206 HH COLLAR SCREW M5X20
    HH COLLAR SCREW M5X20
