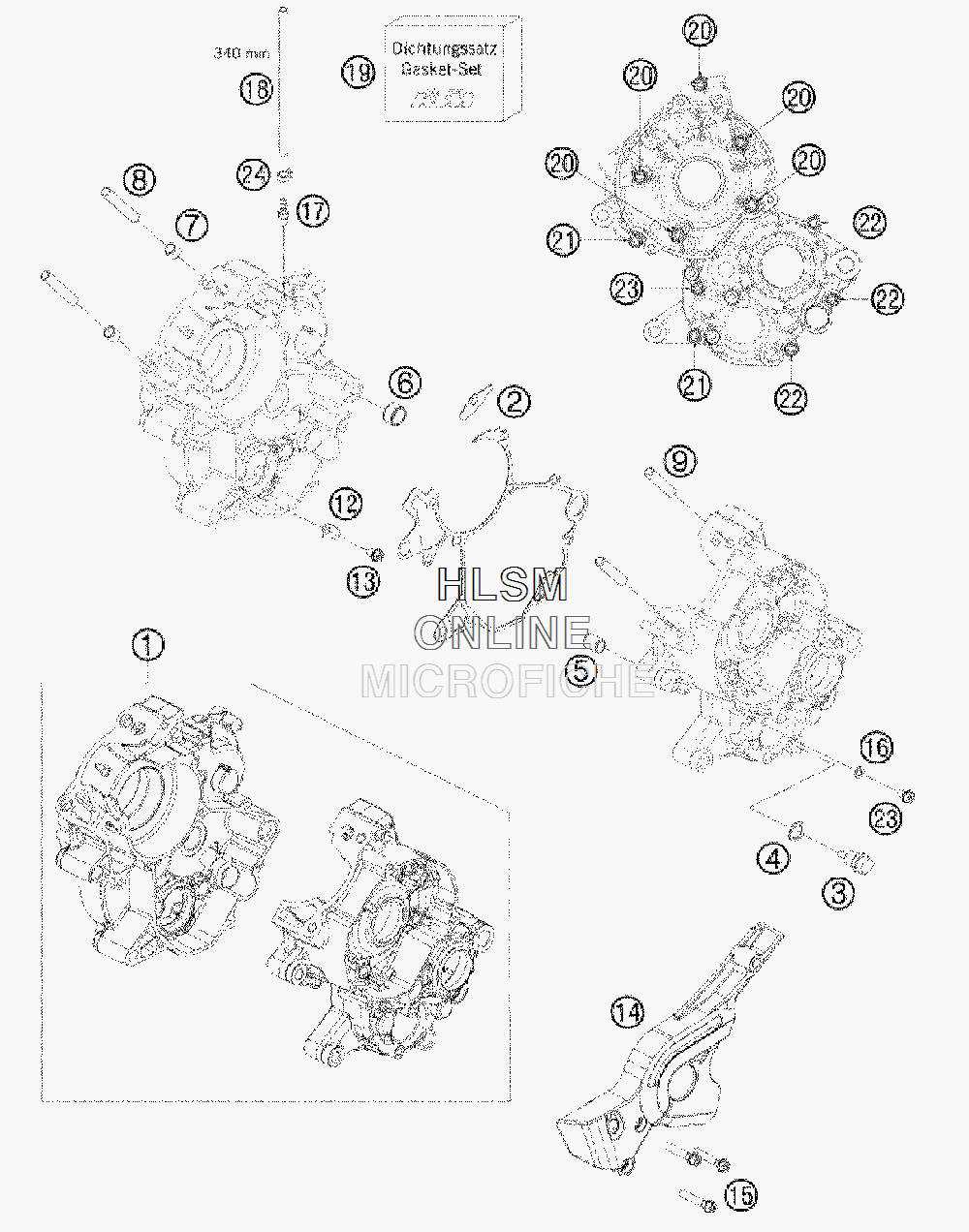

ENGINE CASE для Ktm 65 XC - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    46230000033 ENGINE CASE CPL. WITH BEARING
    ENGINE CASE CPL. WITH BEARING
  • 2
    46230039000 ENGINE CASE GASKET
    ENGINE CASE GASKET
  • 3
    58030021000 OILDRAIN PLUG W.MAG. M 12X1,5
    OILDRAIN PLUG W.MAG. M 12X1,5
  • 4
    58038022000 CU-SEAL RING DIN7603-12X18X1,5
    CU-SEAL RING DIN7603-12X18X1,5
  • 5
    46230024000 DOWEL 12X9X14,5
    DOWEL 12X9X14,5
  • 6
    58330023000 DOWEL 17 X 14 X 9,5
    DOWEL 17 X 14 X 9,5
  • 7
    46230023000 DOWEL 10X8,2X10
    DOWEL 10X8,2X10
  • 8
    0835080355 STUD DIN0835-M 8X35
    STUD DIN0835-M 8X35
  • 9
    46030043000 STUD M8X41
    STUD M8X41
  • 12
    54634049000 RETAINING PLATE
    RETAINING PLATE
  • 13
    0025060086 HH COLLAR SCREW M6X8
    HH COLLAR SCREW M6X8
  • 14
    46230060000 CHAIN SPROCKET GUARD
    CHAIN SPROCKET GUARD
  • 15
    0025060306 HH COLLAR SCREW M6X30
    HH COLLAR SCREW M6X30
  • 16
    0603061001 CU-SEAL RING DIN7603-6X10X1
    CU-SEAL RING DIN7603-6X10X1
  • 17
    58336020190 VACUUM CONECTION M6/3MM
    VACUUM CONECTION M6/3MM
  • 18
    31007007101 PVC-HOSE 4X6MM
    PVC-HOSE 4X6MM
  • 19
    46230099000 GASKET SET 65 SX
    GASKET SET 65 SX
  • 20
    0025060556 HH COLLAR SCREW M6X55
    HH COLLAR SCREW M6X55
  • 21
    0025060406 HH COLLAR SCREW M6X40
    HH COLLAR SCREW M6X40
  • 22
    0025060306 HH COLLAR SCREW M6X30
    HH COLLAR SCREW M6X30
  • 23
    0025060086 HH COLLAR SCREW M6X8
    HH COLLAR SCREW M6X8
  • 24
    45230089000 YDNAC-CLAMP 10068 (6,8MM)
    YDNAC-CLAMP 10068 (6,8MM)
