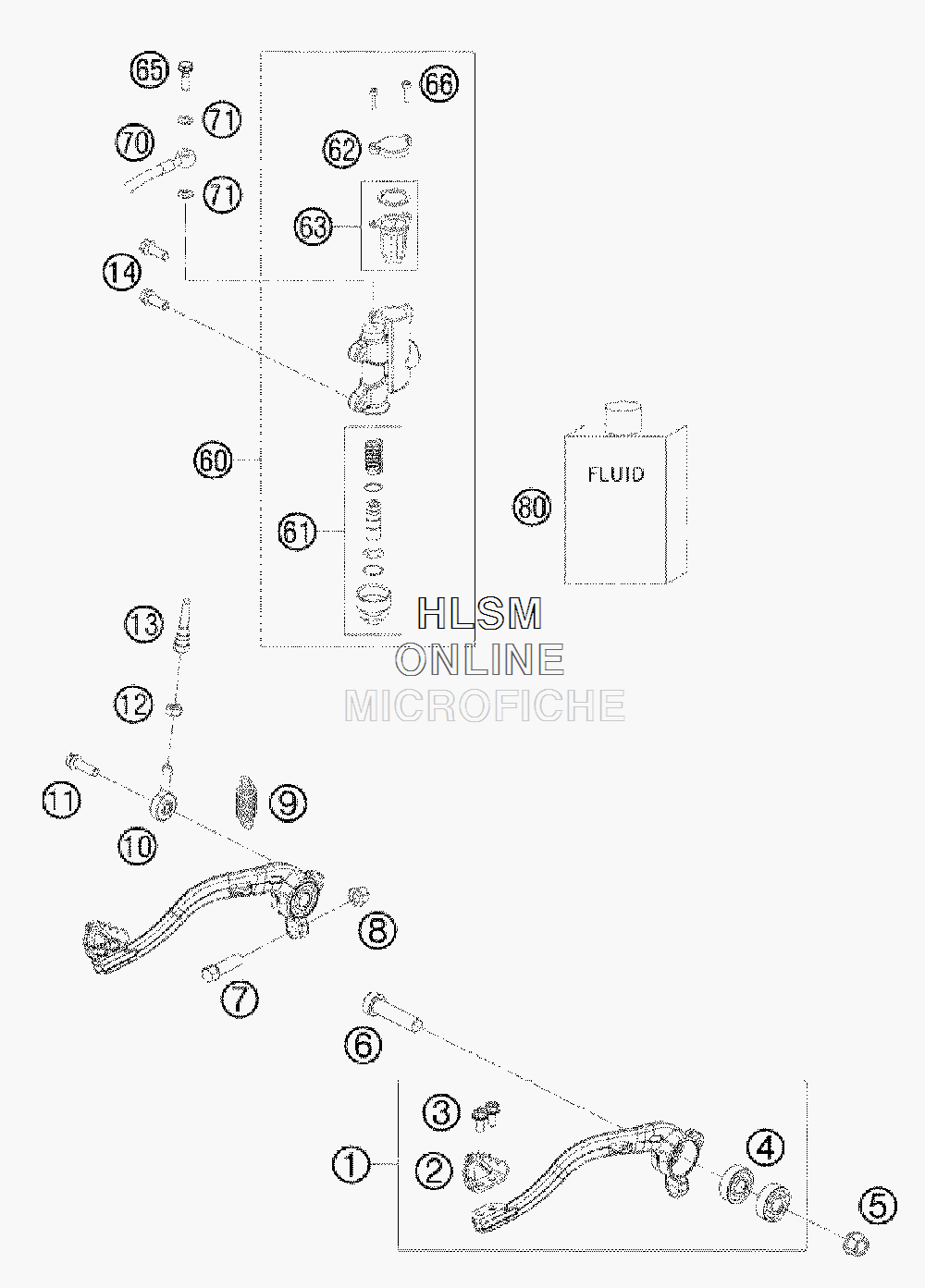

REAR BRAKE CONTROL для Ktm 65 XC - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    46213050044 FOOT BRAKE LEVER 65SX CPL.
    FOOT BRAKE LEVER 65SX CPL.
  • 2
    54813051000 STEP PLATE FOR BRAKE LEVER
    STEP PLATE FOR BRAKE LEVER
  • 3
    0025050126 HH COLLAR SCREW M5X12
    HH COLLAR SCREW M5X12
  • 4
    0625060001 BALL BEARING 6000/C3
    BALL BEARING 6000/C3
  • 5
    54630044000 COLLAR NUT M10
    COLLAR NUT M10
  • 6
    0912100406 AH SCREW DIN6912 M10X40
    AH SCREW DIN6912 M10X40
  • 7
    59001037000 SPECIAL SCREW M8X26 WS=10
    SPECIAL SCREW M8X26 WS=10
  • 8
    46030045000 COLLAR NUT M8 WS=10
    COLLAR NUT M8 WS=10
  • 9
    54603062000 RETURN SPRING FOR BRAKE LEVER
    RETURN SPRING FOR BRAKE LEVER
  • 10
    54813055000 SWIVEL HEAD KA6
    SWIVEL HEAD KA6
  • 11
    0015060203 HH COLLAR SCREW M 6X20
    HH COLLAR SCREW M 6X20
  • 12
    0934060003 HEXAGON NUT DIN0934-M 6
    HEXAGON NUT DIN0934-M 6
  • 13
    47013056100 PRESSURE ROD 85 SX
    PRESSURE ROD 85 SX
  • 14
    0025060166 HH COLLAR SCREW M6X16
    HH COLLAR SCREW M6X16
  • 60
    47013060300 FOOT BRAKE CYL.R. CPL. D=12
    FOOT BRAKE CYL.R. CPL. D=12
  • 61
    47013061100 REP. SET PISTON REAR D=12
    REP. SET PISTON REAR D=12
  • 62
    47013062000 CYLINDER COVER REAR 85 SX
    CYLINDER COVER REAR 85 SX
  • 63
    47013063000 GASKET CYLINDER COVER REAR
    GASKET CYLINDER COVER REAR
  • 65
    47013025000 HOLLOW SCREW BRAKE CYLINDER
    HOLLOW SCREW BRAKE CYLINDER
  • 66
    0912040103 AH.SCREW DIN0912-M 4X10
    AH.SCREW DIN0912-M 4X10
  • 70
    46213070000 BRAKE HOSE REAR 65 SX
    BRAKE HOSE REAR 65 SX
  • 71
    0770080019 O-RING 8,00X1,00 FORMULA
    O-RING 8,00X1,00 FORMULA
  • 80
    00062030000 BRAKE FLUID DOT5.1 0,25L
    BRAKE FLUID DOT5.1 0,25L
