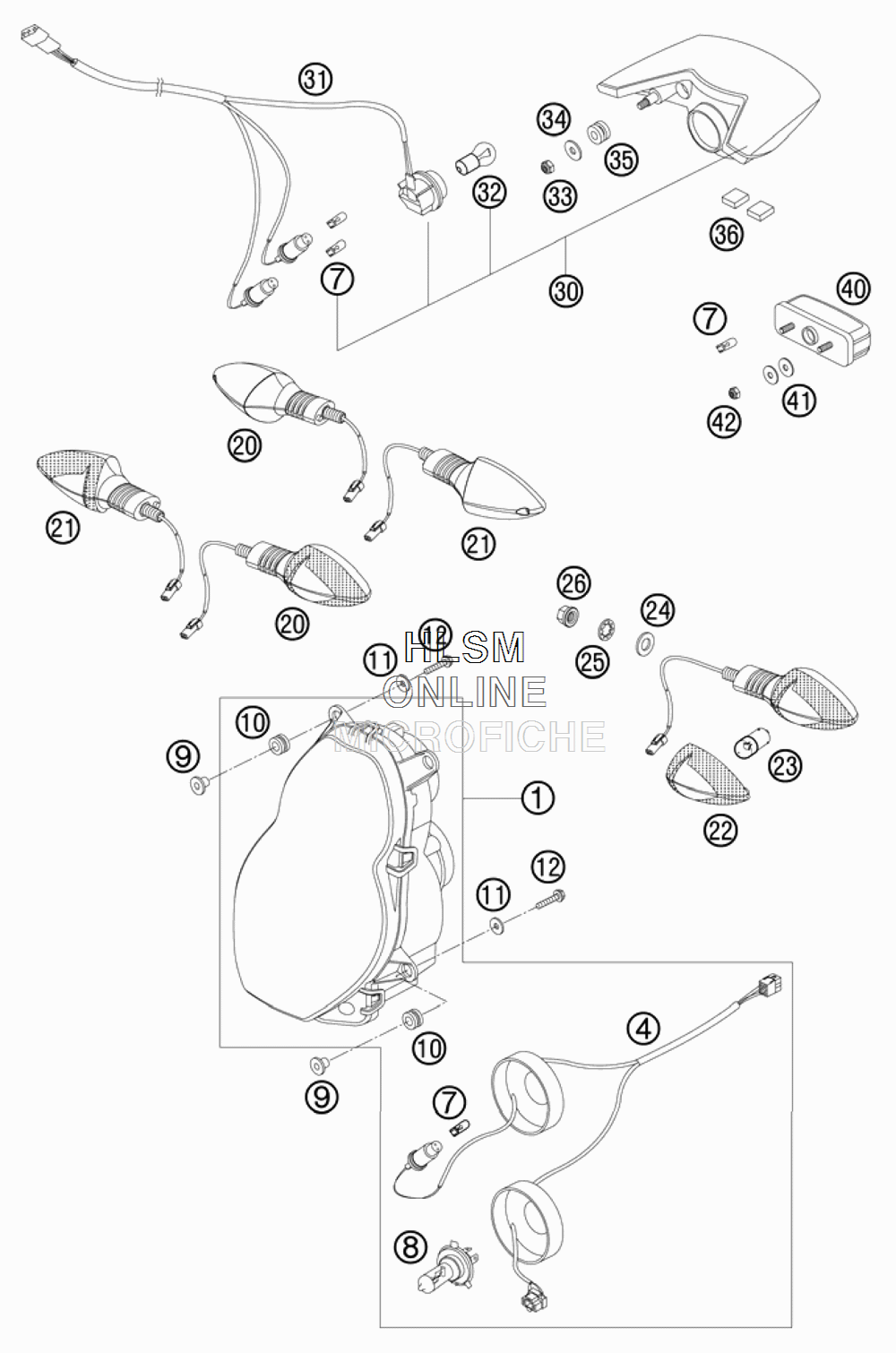

LIGHTING SYSTEM для Ktm 990 Adventure Orange - 2008 года выпуска`
-
№АртикулНазвание
-
160014801000 HEAD LIGHT RIGHT TR. USAHEAD LIGHT RIGHT TR. USA
-
460014801050 HEAD LIGHT WIRING HARN. USAHEAD LIGHT WIRING HARN. USA
-
749011435100 BULB 12V 5W PHIL.BULB 12V 5W PHIL.
-
857111038000 BULB H4 12V 60/55WBULB H4 12V 60/55W
-
960014007000 SPACER BUSHING HEAD LIGHTSPACER BUSHING HEAD LIGHT
-
1031008008000 RUBBER GROMMIT BLACKRUBBER GROMMIT BLACK
-
110021050003 WASHER DIN9021-A 5,3WASHER DIN9021-A 5,3
-
120016050253 SCREW FOR PLASTICSCREW FOR PLASTIC
-
2060114025000 FLASHER CPL.FRONT L/S REAR R/SFLASHER CPL.FRONT L/S REAR R/S
-
2160114026000 FLASHER CPL.FRONT R/S REAR L/SFLASHER CPL.FRONT R/S REAR L/S
-
2260114028000 FLASHER LENS L/S R/S TRANSP.FLASHER LENS L/S R/S TRANSP.
-
2360114027000 BULB 12V ORANGEBULB 12V ORANGE
-
240125100003 WASHER DIN0125-A10,5WASHER DIN0125-A10,5
-
250797100003 LOCK WASHER DIN6797-J10,5 ZILOCK WASHER DIN6797-J10,5 ZI
-
2658414030000 HH COLLAR NUT M10X1,25HH COLLAR NUT M10X1,25
-
3060014040000 REAR LIGHT CPL.REAR LIGHT CPL.
-
3160011077000 WIRING HARNESS REAR LIGHTWIRING HARNESS REAR LIGHT
-
3260014048000 BULB 12V 21WBULB 12V 21W
-
330985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
340021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
3558214069051 RUBBER GROMMET 16X10,8X3RUBBER GROMMET 16X10,8X3
-
3660014040050 BUMP RUBBER 20X20X6 MMBUMP RUBBER 20X20X6 MM
-
4058414047000 LICENSE-PLATE ILLUMINATIONLICENSE-PLATE ILLUMINATION
-
410021050003 WASHER DIN9021-A 5,3WASHER DIN9021-A 5,3
-
420985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
