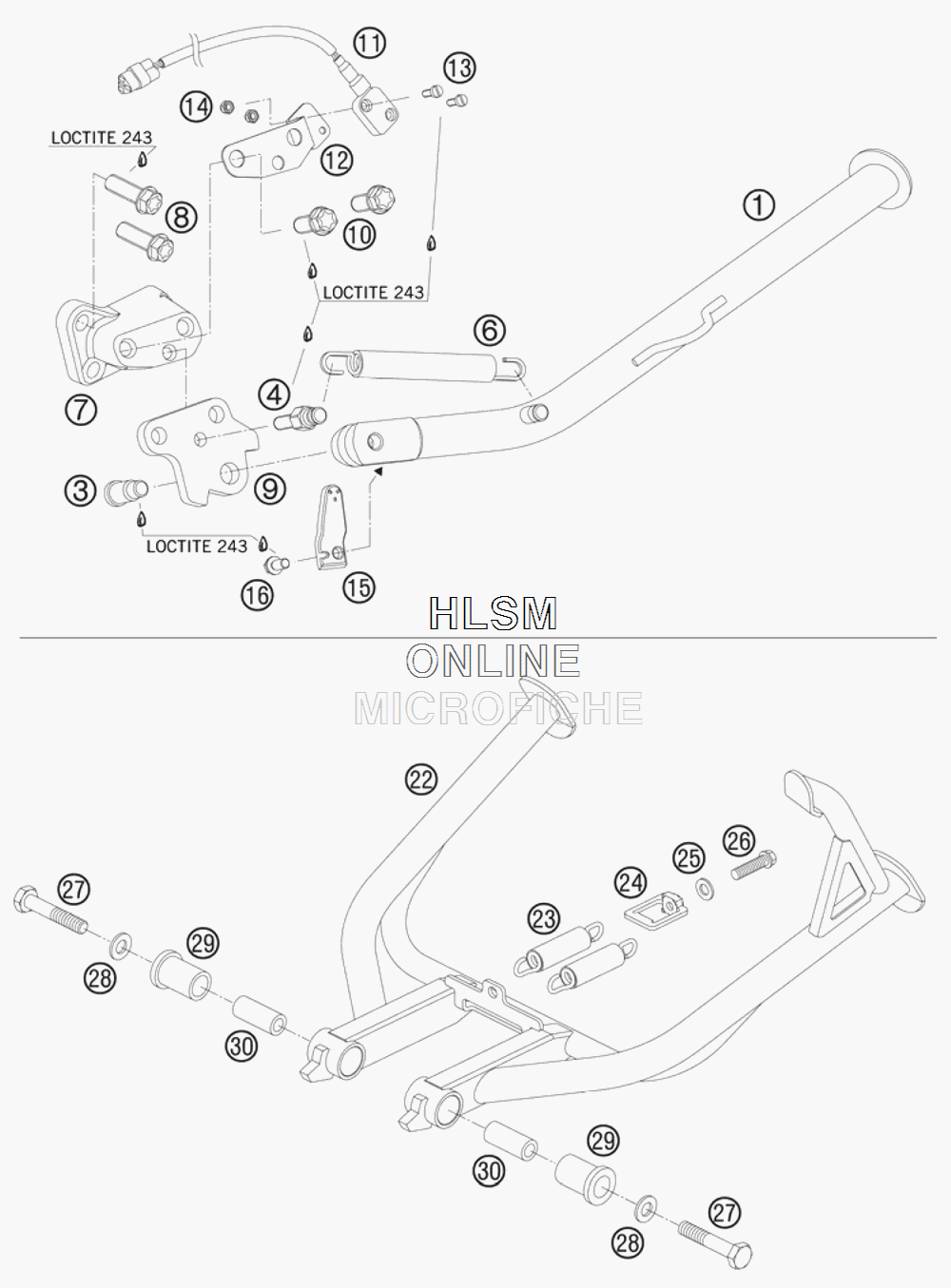

SIDE/CENTER STAND для Ktm 990 Adventure Orange - 2008 года выпуска`
-
№АртикулНазвание
-
16010302310030 SIDE STAND L=302MMSIDE STAND L=302MM
-
362503027100 SCREW F. SIDE STAND M10X31,2SCREW F. SIDE STAND M10X31,2
-
461003028001 SCREW SIDE STAND SPRINGSCREW SIDE STAND SPRING
-
661003024000 SPRING L=116 MMSPRING L=116 MM
-
760003026000 SIDE STAND BRACKETSIDE STAND BRACKET
-
80025100306 COLLAR SCREW M10X30COLLAR SCREW M10X30
-
960103028000 SIDE STAND PICKUPSIDE STAND PICKUP
-
100025100246 % COLLAR SCREW M10X24% COLLAR SCREW M10X24
-
1161011045000 SIDE STAND SENSORSIDE STAND SENSOR
-
1260103029000 SUPPORT F.SIDE STAND SWITCHSUPPORT F.SIDE STAND SWITCH
-
130084040123 CYL.HEAD SCREW DIN84A M4X12CYL.HEAD SCREW DIN84A M4X12
-
140985040003 SELF LOCKING NUT DIN0985-M 4SELF LOCKING NUT DIN0985-M 4
-
1560103029050 MAGNET HOLDER ADV.MAGNET HOLDER ADV.
-
160025060126 HH COLLAR SCREW M6X12HH COLLAR SCREW M6X12
-
226000302240030 CENTER STAND L=333MMCENTER STAND L=333MM
-
2360003030000 SPRING FOR CENTER STANDSPRING FOR CENTER STAND
-
2460003022115 SPRING TENSIONERSPRING TENSIONER
-
250125080003 WASHER DIN0125-A 8,4WASHER DIN0125-A 8,4
-
260025080306 HH COLLAR SCREW M8X30HH COLLAR SCREW M8X30
-
2756503093000 SPECIAL SCREW M10X55SPECIAL SCREW M10X55
-
280125100003 WASHER DIN0125-A10,5WASHER DIN0125-A10,5
-
2960003022020 BEARING BUSH CENTER STANDBEARING BUSH CENTER STAND
-
3060003022021 SPACER 10X16X38 MMSPACER 10X16X38 MM
