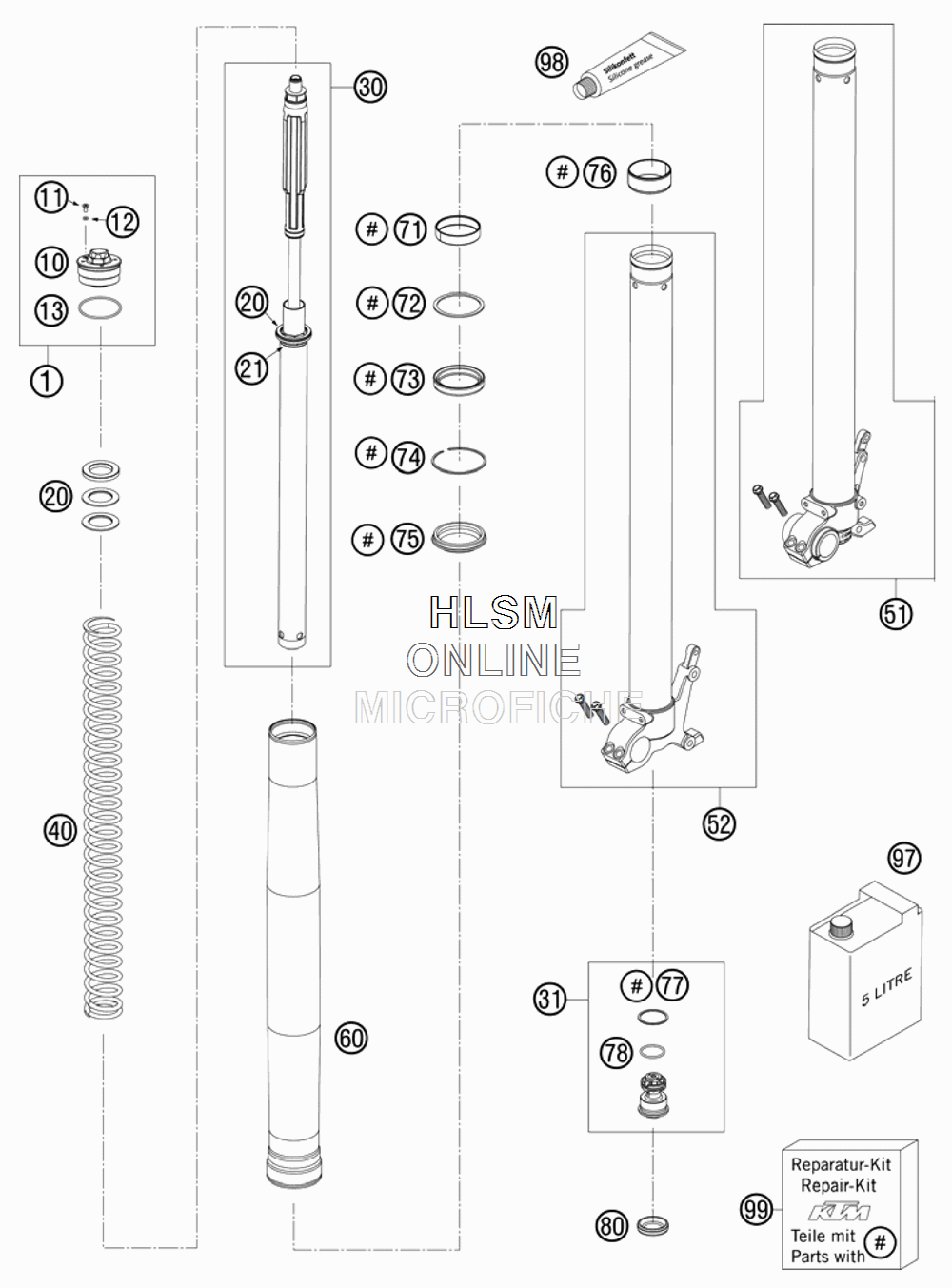

FRONT FORK DISASSEMBLED для Ktm 990 Adventure Orange - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    48600431S PRE-LOAD ADJ. CPL. M51X1,5
    PRE-LOAD ADJ. CPL. M51X1,5
  • 10
    48600431 SCREW CAP M51X1,5
    SCREW CAP M51X1,5
  • 11
    48600481 VENT SCREW M4X8
    VENT SCREW M4X8
  • 12
    48600046 O-RING NBR 3X1,5
    O-RING NBR 3X1,5
  • 13
    46810340 O-RING NBR 45X2
    O-RING NBR 45X2
  • 20
    48600036 SPACER 42X26,5X2,5
    SPACER 42X26,5X2,5
  • 20
    48600037 SPACER 42X26,5X5
    SPACER 42X26,5X5
  • 20
    48600053 SPACER 42X26,5X1,5
    SPACER 42X26,5X1,5
  • 21
    48600021 INTERM. RING 26,2 X 43 X 3
    INTERM. RING 26,2 X 43 X 3
  • 30
    48600140S CARDRIDGE CPL. ADV ABS
    CARDRIDGE CPL. ADV ABS
  • 31
    48600586S1 TAP COMPRESSION CPL.
    TAP COMPRESSION CPL.
  • 40
    91410040S SPRING 4,8N/MM SET D=5,25MM
    SPRING 4,8N/MM SET D=5,25MM
  • 51
    48600499S1 AXLE CLAMP LEFT ADV. CPL.
    AXLE CLAMP LEFT ADV. CPL.
  • 52
    48600500S1 AXLE CLAMP RIGHT ADV. CPL.
    AXLE CLAMP RIGHT ADV. CPL.
  • 60
    48600422E OUTER TUBE 610/54/60DARKGREY
    OUTER TUBE 610/54/60DARKGREY
  • 71
    48600429 DU-BUSH D48XD52X12DDL02
    DU-BUSH D48XD52X12DDL02
  • 72
    48600013 SUPPORT RING 50 X 57,6 X 1,5
    SUPPORT RING 50 X 57,6 X 1,5
  • 73
    48600399 OIL SEAL RING 48X57,8X9,5
    OIL SEAL RING 48X57,8X9,5
  • 74
    48600070 LOCK WASHER SB58
    LOCK WASHER SB58
  • 75
    48600400 DUST CAP D=48 58,4X11,8
    DUST CAP D=48 58,4X11,8
  • 76
    48600428 DU-BUSH D47XD49X20DDL02
    DU-BUSH D47XD49X20DDL02
  • 77
    48600004 COPPER WASHER 29,5X33,5X1
    COPPER WASHER 29,5X33,5X1
  • 78
    35480320 O-RING NBR 24X2
    O-RING NBR 24X2
  • 80
    48600141 RUBBER CAP D=35MM
    RUBBER CAP D=35MM
  • 97
    48600401S1 FORK OIL SAE5 5L
    FORK OIL SAE5 5L
  • 98
    T511 SILICONE GREASE F. DUST STRI
    SILICONE GREASE F. DUST STRI
  • 99
    R14013 REPAIR-KIT EXC FRONT FORK06/07
    REPAIR-KIT EXC FRONT FORK06/07
