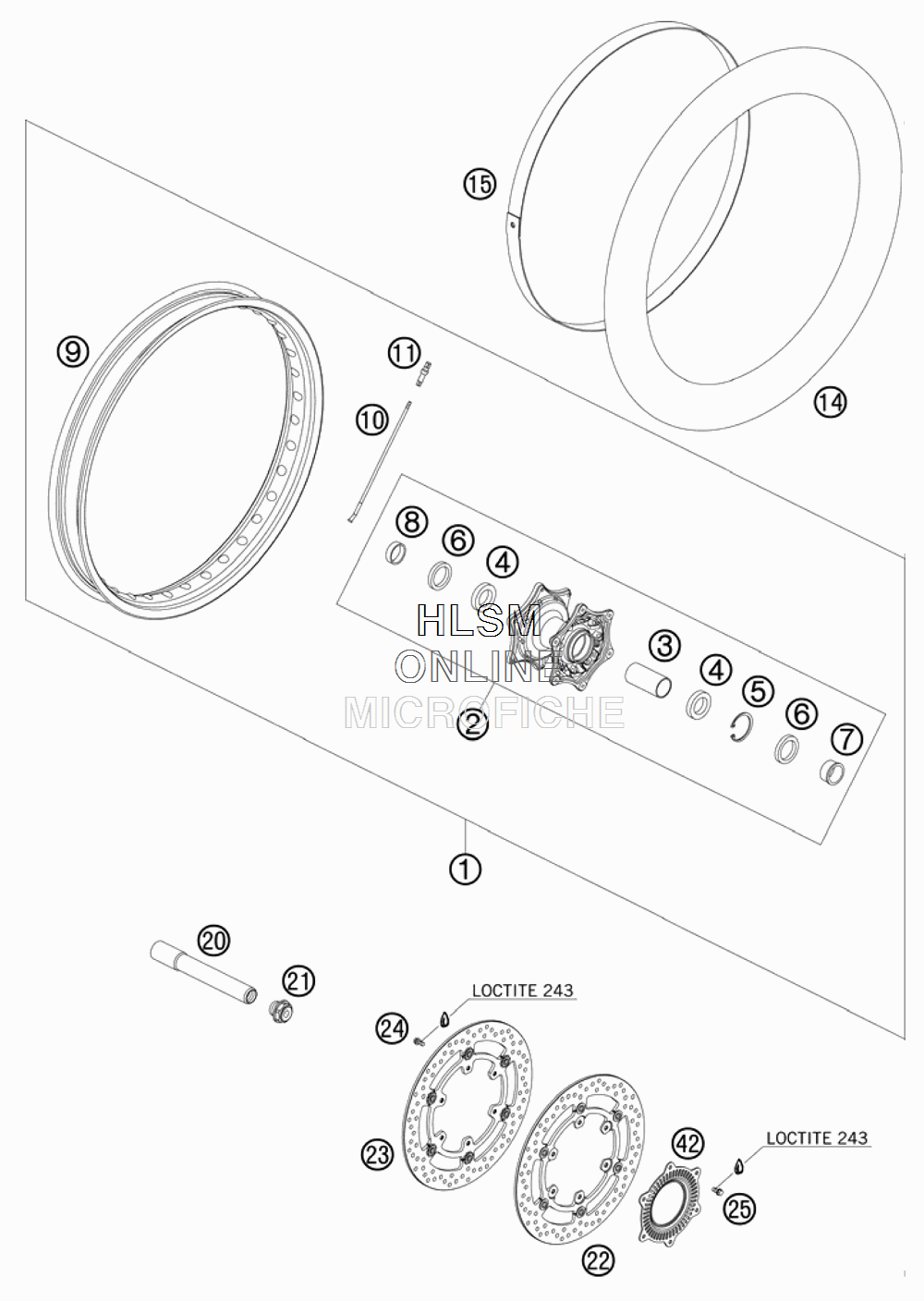

FRONT WHEEL для Ktm 990 Adventure Orange - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    6000900114430 FR. WHEEL CPL 2,15X21 BLACK
    FR. WHEEL CPL 2,15X21 BLACK
  • 2
    60009010044 FRONT HUB CPL.
    FRONT HUB CPL.
  • 3
    60009014000 BEAR. SPACERTUBE FRONT
    BEAR. SPACERTUBE FRONT
  • 4
    0625069068 GR.BALL BEAR.6906 DDU2CG23S6NM
    GR.BALL BEAR.6906 DDU2CG23S6NM
  • 5
    0472047175 CIRCLIP DIN0472-47X1,75
    CIRCLIP DIN0472-47X1,75
  • 6
    0760354771 SHAFT SEAL RING 35X47X7 TC
    SHAFT SEAL RING 35X47X7 TC
  • 7
    60009012000 SPACER BUSH. FR. WHEEL L/S
    SPACER BUSH. FR. WHEEL L/S
  • 8
    60009013000 SPACER BUSH. FR. WHEEL R/S
    SPACER BUSH. FR. WHEEL R/S
  • 9
    6000907010030 RIM FRONT 2,15X21'' BLACK
    RIM FRONT 2,15X21'' BLACK
  • 10
    60009071000 SPOKE M5X230,5 13,5 DEG
    SPOKE M5X230,5 13,5 DEG
  • 11
    58309072000 SPOKE NIPPLE M5-TA
    SPOKE NIPPLE M5-TA
  • 14
    50309075000 HOSE 21''
    HOSE 21''
  • 15
    60009073000 RIM TAPE 21'' 28/ 2MM
    RIM TAPE 21'' 28/ 2MM
  • 20
    60009081000 WHEEL SPINDEL FRONT
    WHEEL SPINDEL FRONT
  • 21
    60009082000 COLLAR SCREW FRONT AXLE
    COLLAR SCREW FRONT AXLE
  • 22
    60109060100 BRAKE DISK FRONT 300MM ABS
    BRAKE DISK FRONT 300MM ABS
  • 23
    60109060000 BRAKE DISK FRONT 300MM
    BRAKE DISK FRONT 300MM
  • 24
    59009062013 SPECIAL SCREW M6X13 WS=8 10.9
    SPECIAL SCREW M6X13 WS=8 10.9
  • 25
    59009062016 SPECIAL SCREW M6X16 WS=8 10.9
    SPECIAL SCREW M6X16 WS=8 10.9
  • 42
    60142020000 SENSOR WHEEL FRONT
    SENSOR WHEEL FRONT
