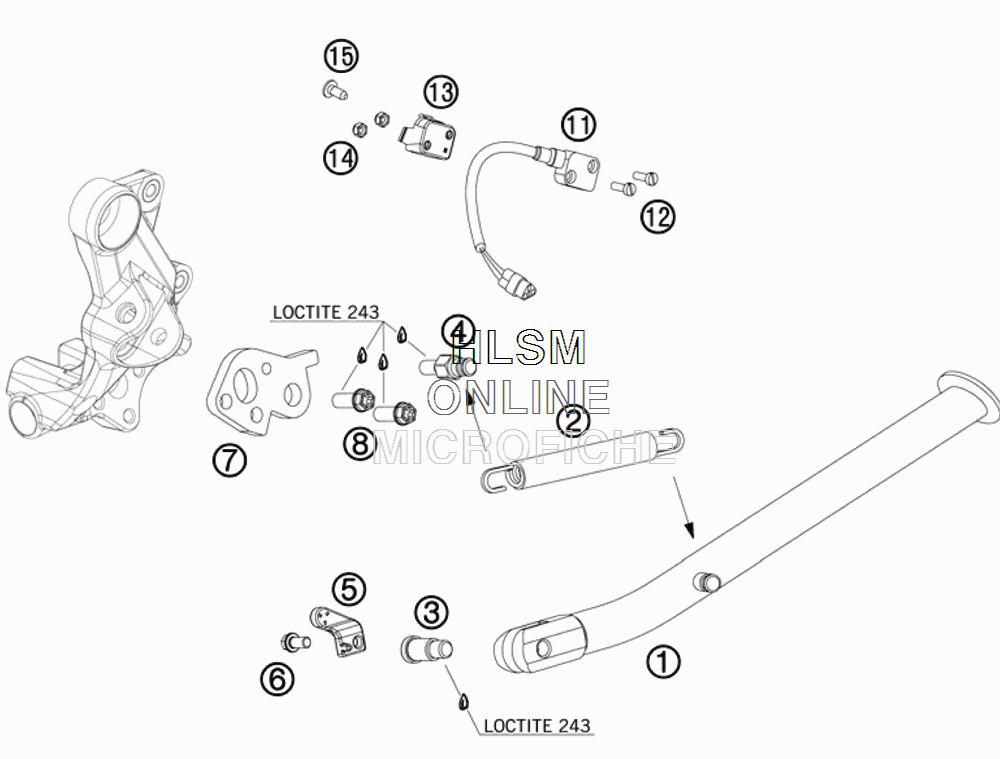

SIDE/CENTER STAND для Ktm 690 SMC - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    7650302300033 SIDE STAND L=275MM SMC
    SIDE STAND L=275MM SMC
  • 2
    61003024000 SPRING L=116 MM
    SPRING L=116 MM
  • 3
    62503027100 SCREW F. SIDE STAND M10X31,2
    SCREW F. SIDE STAND M10X31,2
  • 4
    76503028001 SPECIAL SCR. SIDE STAND SPRING
    SPECIAL SCR. SIDE STAND SPRING
  • 5
    76503029000 MAGNET HOLDER
    MAGNET HOLDER
  • 6
    0025060126 HH COLLAR SCREW M6X12 TX30
    HH COLLAR SCREW M6X12 TX30
  • 7
    76503026000 SIDE STAND BRACKET
    SIDE STAND BRACKET
  • 8
    0025080206 HH COLLAR SCREW M8X20 TX40
    HH COLLAR SCREW M8X20 TX40
  • 11
    61011045000 SIDE STAND SENSOR
    SIDE STAND SENSOR
  • 12
    0084040123 CYL.HEAD SCREW DIN84A M4X12
    CYL.HEAD SCREW DIN84A M4X12
  • 13
    76511045050 HOLDER FOR SIDESTAND SWITCH
    HOLDER FOR SIDESTAND SWITCH
  • 14
    0985040003 SELF LOCKING NUT DIN0985-M 4
    SELF LOCKING NUT DIN0985-M 4
  • 15
    0016050121 SCREW FOR PLASTIC 50X12
    SCREW FOR PLASTIC 50X12
