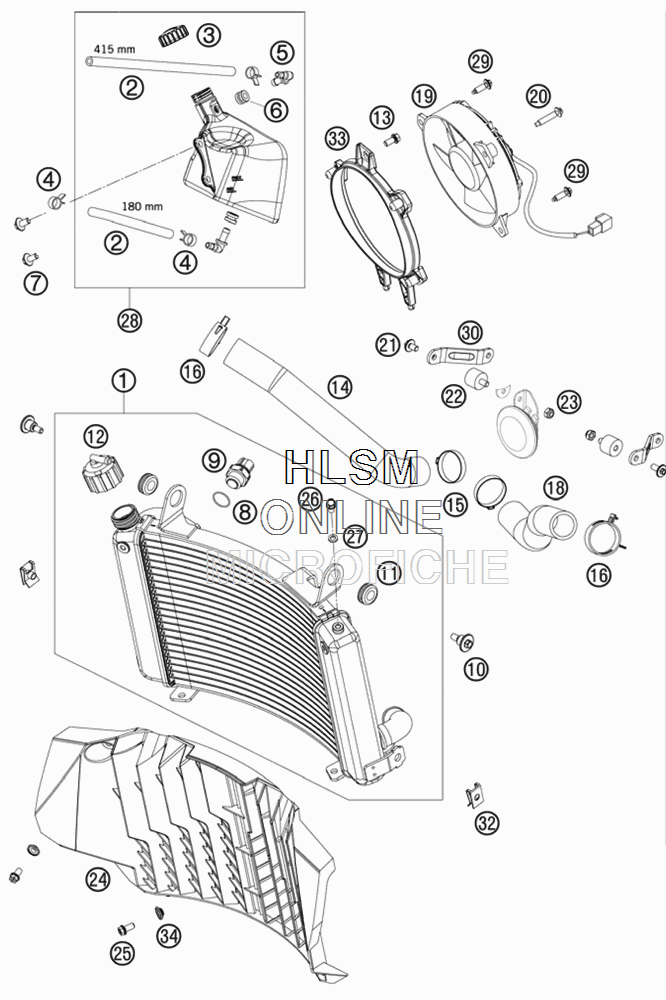

COOLING SYSTEM для Ktm 690 SMC - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    76535010000 RADIATOR
    RADIATOR
  • 2
    60035067001 HOSE 6X10 EPDM
    HOSE 6X10 EPDM
  • 3
    60035066000 PLUG F. EXPANSION TANK
    PLUG F. EXPANSION TANK
  • 4
    58007117000 YDNAC-CLAMP 10107 10MM
    YDNAC-CLAMP 10107 10MM
  • 5
    60035068000 ANGLE CONNECTION EXPANS. TANK
    ANGLE CONNECTION EXPANS. TANK
  • 6
    60035069000 RUBBER GROMMET 6X9X13MM
    RUBBER GROMMET 6X9X13MM
  • 7
    0023060123 COLLAR SCREW M6X12 TX
    COLLAR SCREW M6X12 TX
  • 8
    0770017015 O-RING 17X1,5 NB75
    O-RING 17X1,5 NB75
  • 9
    60035045000 THERMOSWITCH LC8 102DG
    THERMOSWITCH LC8 102DG
  • 10
    60038083000 SCREW OIL TANK FIXING
    SCREW OIL TANK FIXING
  • 11
    41001052000 RUBBER SLEEVE D=12MM
    RUBBER SLEEVE D=12MM
  • 12
    62535009000 RADIATOR CAP 1,4 BAR
    RADIATOR CAP 1,4 BAR
  • 13
    0025060126 HH COLLAR SCREW M6X12 TX30
    HH COLLAR SCREW M6X12 TX30
  • 14
    76535025000 RADIATOR HOSE
    RADIATOR HOSE
  • 15
    00050331706 VARIABLE ONE-EAR CLAMP 33,1MM
    VARIABLE ONE-EAR CLAMP 33,1MM
  • 16
    00049320121 CLAMP STD DN32
    CLAMP STD DN32
  • 18
    76535024000 RADIATOR HOSE
    RADIATOR HOSE
  • 19
    60035041000 FAN L/S
    FAN L/S
  • 20
    0017060303 SPECIAL SCREW T60 6X30 WS=6
    SPECIAL SCREW T60 6X30 WS=6
  • 21
    0024060106 HH COLLAR SCREW M6X10 TX30
    HH COLLAR SCREW M6X10 TX30
  • 22
    43205062100 RUBBER GROMMET 20X15-M6X10 (1)
    RUBBER GROMMET 20X15-M6X10 (1)
  • 23
    0985060003 SELF LOCK. NUT DIN0985-M 6
    SELF LOCK. NUT DIN0985-M 6
  • 24
    76535040000 RADIATOR PROTECTOR
    RADIATOR PROTECTOR
  • 25
    0025060126 HH COLLAR SCREW M6X12 TX30
    HH COLLAR SCREW M6X12 TX30
  • 26
    0015060103 HH COLLAR SCREW M 6X10 WS=8
    HH COLLAR SCREW M 6X10 WS=8
  • 27
    0125060003 WASHER DIN0125-A 6,4
    WASHER DIN0125-A 6,4
  • 28
    76535065000 EXPANSION TANK CPL.
    EXPANSION TANK CPL.
  • 29
    0017060203 EJOT PT SCREW K60X20 WS=6
    EJOT PT SCREW K60X20 WS=6
  • 30
    76535001000 RETAINING PLATE RADIATOR
    RETAINING PLATE RADIATOR
  • 32
    54603048100 RANGE CHANGE METAL NUT M6
    RANGE CHANGE METAL NUT M6
  • 33
    76535044000 FAN COWL
    FAN COWL
  • 34
    76508043050 COLLAR BUSHING
    COLLAR BUSHING
