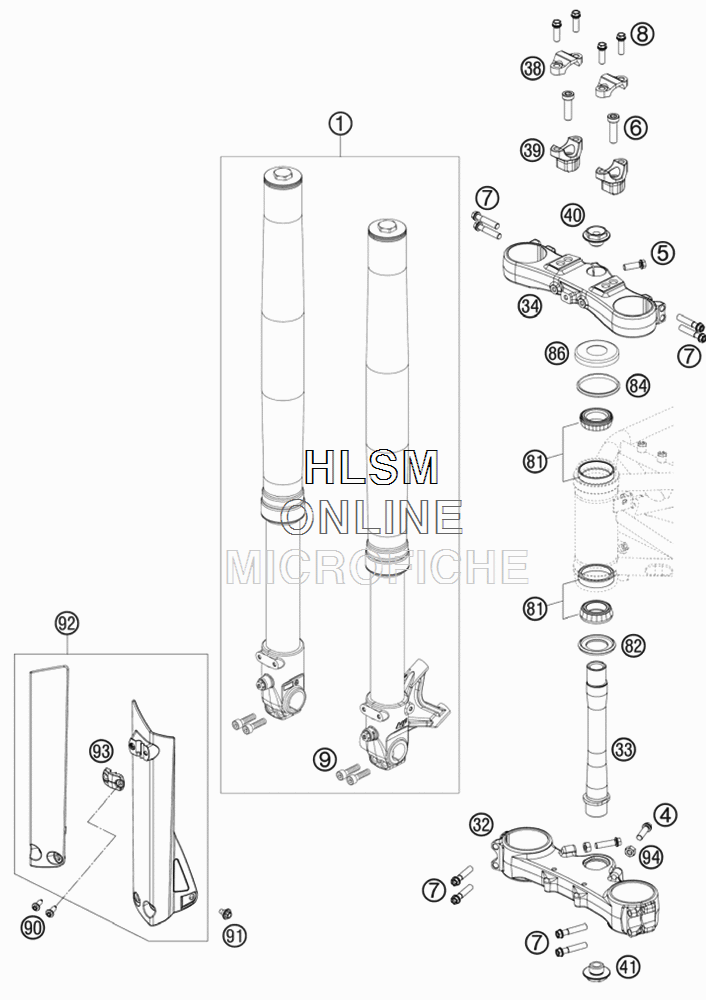

FRONT FORK TRIPLE CLAMP для Ktm 690 SMC - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    14187D12 KTM 690 SMC
    KTM 690 SMC
  • 4
    0025080353 COLLAR SCREW M8X35 TX
    COLLAR SCREW M8X35 TX
  • 5
    0025080303 COLLAR SCREW M8X30 TX
    COLLAR SCREW M8X30 TX
  • 6
    0912100356 AH SCREW DIN6912-M10X35 10.9
    AH SCREW DIN6912-M10X35 10.9
  • 7
    0025080406 HH COLLAR SCREW M8X40 TX40
    HH COLLAR SCREW M8X40 TX40
  • 8
    0025080256 HH COLLAR SCREW M8X25 TX40
    HH COLLAR SCREW M8X25 TX40
  • 9
    0912080303 AH SCREW DIN0912-M 8X30
    AH SCREW DIN0912-M 8X30
  • 32
    7650113103301 BOT.TRIPLE CLAMP 32-34 OFFSET
    BOT.TRIPLE CLAMP 32-34 OFFSET
  • 33
    76501033000 FORK TUBE L=237MM
    FORK TUBE L=237MM
  • 34
    7650113403301 TRIPLE CLAMP TOP 32-34 ADJUST.
    TRIPLE CLAMP TOP 32-34 ADJUST.
  • 38
    59401038000 HANDLEBAR CLAMP 28MM
    HANDLEBAR CLAMP 28MM
  • 39
    59401039042 HANDLEB.SUPP. D=28MM H=42MM
    HANDLEB.SUPP. D=28MM H=42MM
  • 40
    54801036000 STEER.HEAD SCREW M20X1,5 WS=27
    STEER.HEAD SCREW M20X1,5 WS=27
  • 41
    54801036100 STE.HEAD SCR. M20X1,5 WS=27 SL
    STE.HEAD SCR. M20X1,5 WS=27 SL
  • 81
    54201081100 TAPERED ROLLER BEARING CPL.
    TAPERED ROLLER BEARING CPL.
  • 82
    54601084100 O-RING SUPPORT W. SEALING LIP
    O-RING SUPPORT W. SEALING LIP
  • 84
    54601184000 STEARING HEAD GASKET TOP
    STEARING HEAD GASKET TOP
  • 86
    54201086000 STEERING HEAD COVER
    STEERING HEAD COVER
  • 90
    0017060204 EJOT PT SCREW K60X20 ALU WS=6
    EJOT PT SCREW K60X20 ALU WS=6
  • 91
    59001092050 SPECIAL SCREW M6X12,5 WS=8
    SPECIAL SCREW M6X12,5 WS=8
  • 92
    7650109400030 FORK PROTECT. L/S+R/S BLACK
    FORK PROTECT. L/S+R/S BLACK
  • 93
    7650109201030 FORK PROTECTOR CLAMP
    FORK PROTECTOR CLAMP
  • 94
    0934080003 HEXAGON NUT DIN0934-M 8
    HEXAGON NUT DIN0934-M 8
