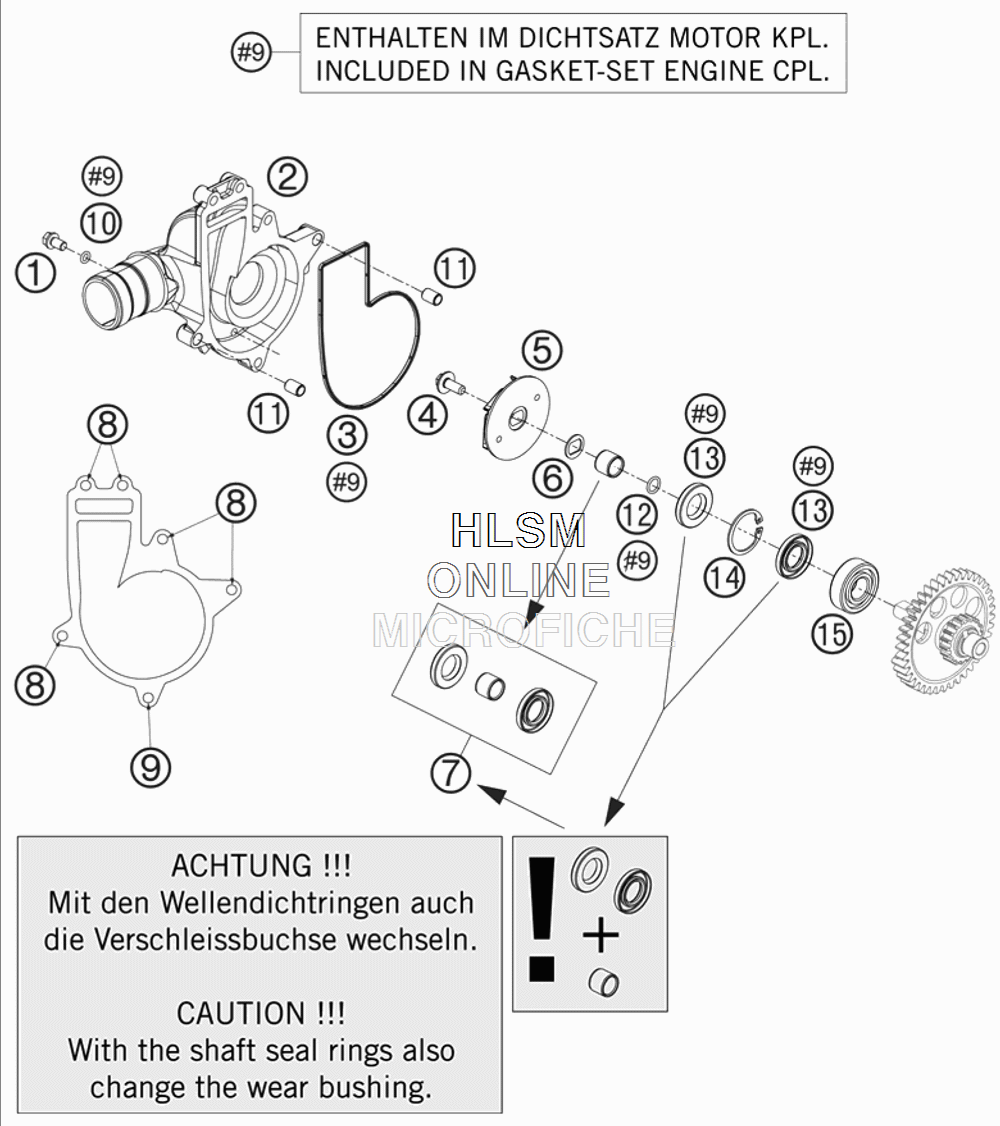

WATER PUMP для Ktm 1190 RC8 - 2008 года выпуска
-
№АртикулНазвание
-
10015060103 HH COLLAR SCREW M 6X10HH COLLAR SCREW M 6X10
-
261235052000 WATER PUMP COVERWATER PUMP COVER
-
361235061000 MOLDED RING WATER PUMP COV.MOLDED RING WATER PUMP COV.
-
40014060133 HH COLLAR SCREW M 6X13HH COLLAR SCREW M 6X13
-
561235055000 WATER PUMP ROTORWATER PUMP ROTOR
-
660035055150 FORM WASHER 16X1 NIROFORM WASHER 16X1 NIRO
-
761235065044 WEAR BUSHING WITH SEAL RINGWEAR BUSHING WITH SEAL RING
-
80015060453 HH COLLAR SCREW M 6X45HH COLLAR SCREW M 6X45
-
90015060253 HH COLLAR SCREW M 6X25HH COLLAR SCREW M 6X25
-
100770050012 O-RING 5,0X1,2 NBR 70O-RING 5,0X1,2 NBR 70
-
1159030023000 DOWEL 6X8X11,5DOWEL 6X8X11,5
-
120770090015 O-RING 9X1,5 NBRO-RING 9X1,5 NBR
-
130760153045 SHAFT SEAL RING 15/30/4,5 BAUDSHAFT SEAL RING 15/30/4,5 BAUD
-
1404720300121 CIRCLIP DIN0472-30X1,2 NIROCIRCLIP DIN0472-30X1,2 NIRO
-
150412153511 CYL.ROLLER BEAR. NJ202 ECP C3CYL.ROLLER BEAR. NJ202 ECP C3
