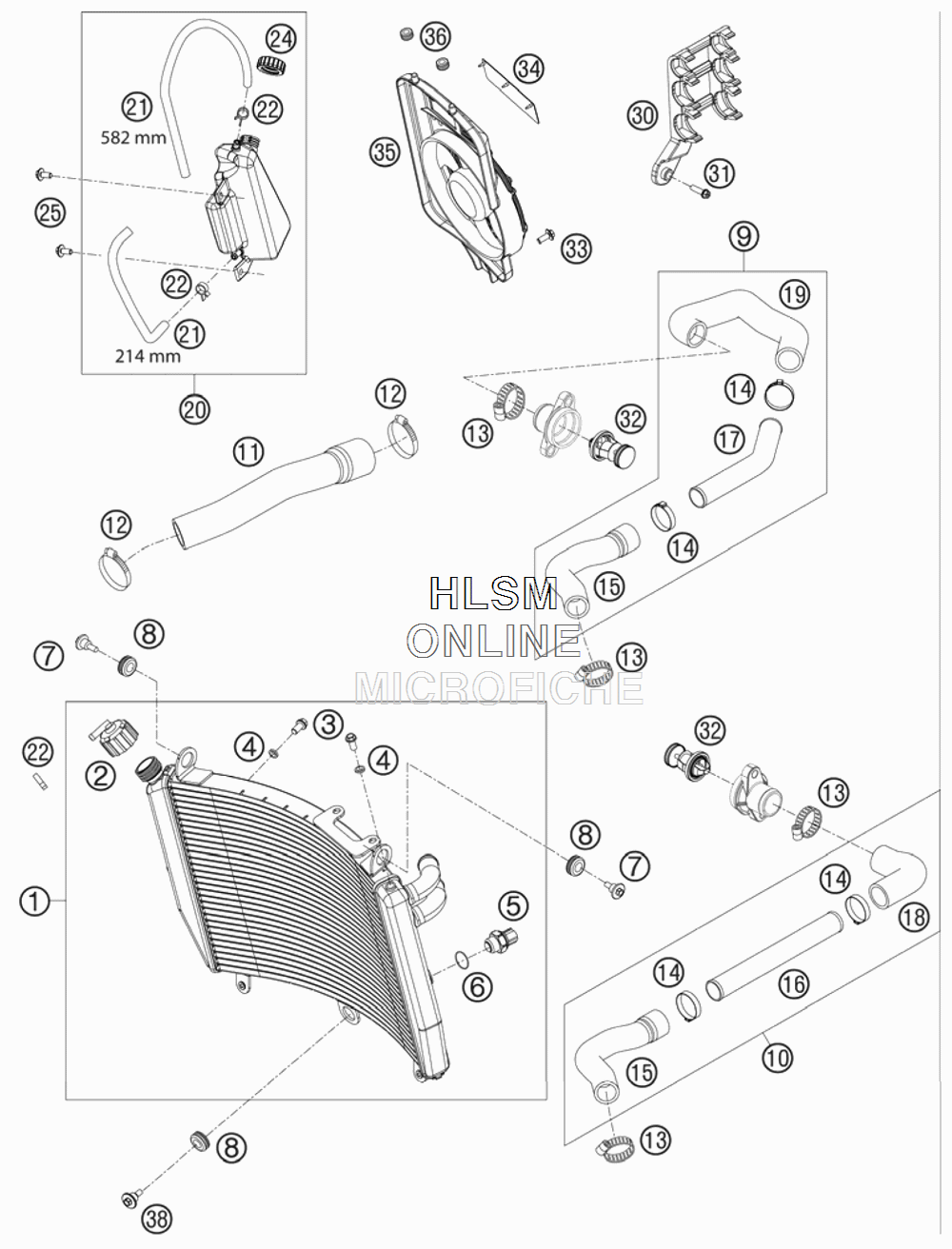

COOLING SYSTEM для Ktm 1190 RC8 - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    69035010000 COOLER "VW1585" CPL.
    COOLER "VW1585" CPL.
  • 2
    62535009000 RADIATOR CAP 1,4 BAR
    RADIATOR CAP 1,4 BAR
  • 3
    0025060126 HH COLLAR SCREW M6X12
    HH COLLAR SCREW M6X12
  • 4
    60035048000 ALU-GASKET 6X10X1.5
    ALU-GASKET 6X10X1.5
  • 5
    60035045000 THERMOSWITCH LC8 102DG
    THERMOSWITCH LC8 102DG
  • 6
    0770017015 O-RING 17X1,5 NB75
    O-RING 17X1,5 NB75
  • 7
    60035001000 SPECIAL SCREW M6X21 WS=8
    SPECIAL SCREW M6X21 WS=8
  • 8
    41001052000 RUBBER SLEEVE D=12MM
    RUBBER SLEEVE D=12MM
  • 9
    69035091000 RADIATOR HOSE CPL. CYL.-FRONT
    RADIATOR HOSE CPL. CYL.-FRONT
  • 10
    69035092000 RADIATOR HOSE CPL. CYL.-REAR
    RADIATOR HOSE CPL. CYL.-REAR
  • 11
    69035023000 PREFORMED HOSE COOLER/WAPU
    PREFORMED HOSE COOLER/WAPU
  • 12
    54305058000 HOSE CLAMP 30-45 SGT
    HOSE CLAMP 30-45 SGT
  • 13
    76235028000 HOSE CLAMP GEMI 20-32 MM
    HOSE CLAMP GEMI 20-32 MM
  • 14
    00050331706 VARIABLE ONE-EAR CLAMP 33,1MM
    VARIABLE ONE-EAR CLAMP 33,1MM
  • 15
    69035024000 PREFORMED HOSE COOLER INLET
    PREFORMED HOSE COOLER INLET
  • 16
    69035028000 WATER PIPE CYL. REAR
    WATER PIPE CYL. REAR
  • 17
    69035027000 WATER PIPE CYL. FRONT
    WATER PIPE CYL. FRONT
  • 18
    69035026000 PREFORMED HOSE CYL. REAR
    PREFORMED HOSE CYL. REAR
  • 19
    69035025000 PREFORMED HOSE CYL. FRONT
    PREFORMED HOSE CYL. FRONT
  • 20
    69035065000 EXPANSION TANK CPL.
    EXPANSION TANK CPL.
  • 21
    60035067001 HOSE 6X10 EPDM
    HOSE 6X10 EPDM
  • 22
    58007117000 YDNAC-CLAMP
    YDNAC-CLAMP
  • 24
    60035066000 PLUG F. EXPANSION TANK
    PLUG F. EXPANSION TANK
  • 25
    0024060136 HH COLLAR SCREW M6X13
    HH COLLAR SCREW M6X13
  • 30
    69035030000 HOSE CLAMP 19/25 CPL.
    HOSE CLAMP 19/25 CPL.
  • 31
    0014060253 HH COLLAR SCREW M 6X25
    HH COLLAR SCREW M 6X25
  • 32
    61235017000 THERMOSTAT 70 DEGREE
    THERMOSTAT 70 DEGREE
  • 33
    0024060156 HH COLLAR SCREW M6X15
    HH COLLAR SCREW M6X15
  • 34
    62635044050 FAN CLACK RUBBER
    FAN CLACK RUBBER
  • 35
    69035044000 FAN COWL WITH FAN
    FAN COWL WITH FAN
  • 36
    31008060000 RUBBER SLEEVE D=8MM OPEN
    RUBBER SLEEVE D=8MM OPEN
  • 38
    69008021060 SPECIAL SCREW M5X17
    SPECIAL SCREW M5X17
