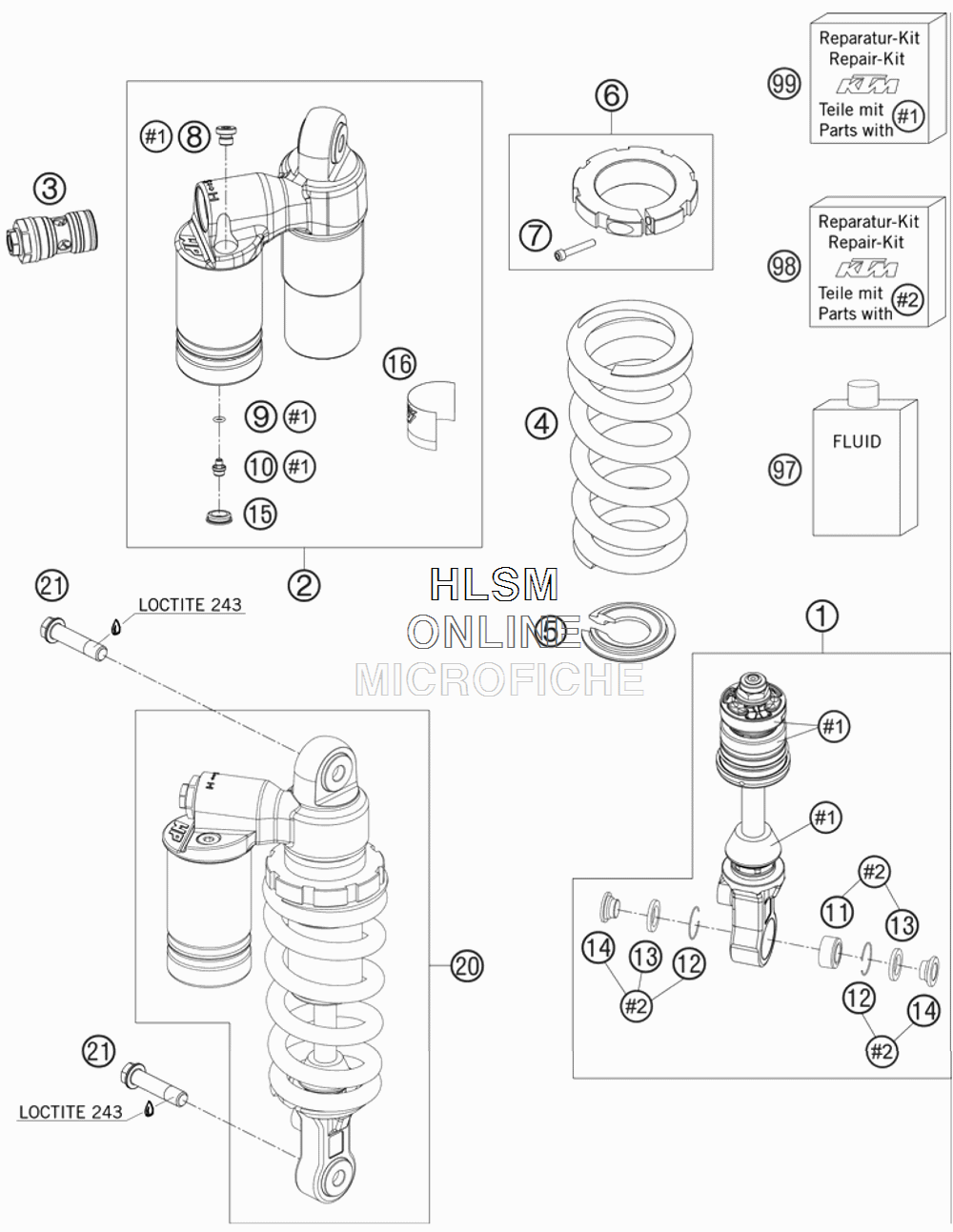

MONOSHOCK для Ktm 1190 RC8 - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    40140329S1 MONOSHOCK LOWER PART CPL.
    MONOSHOCK LOWER PART CPL.
  • 2
    40140331S1 MONOSHOCK TOP PART CPL.
    MONOSHOCK TOP PART CPL.
  • 3
    46180533S DCC-COMPR.DAMP.CONTROL CPL.
    DCC-COMPR.DAMP.CONTROL CPL.
  • 4
    91750001 SPRING (55) 110 - 160 D=11,5
    SPRING (55) 110 - 160 D=11,5
  • 5
    36120559 SPRING RETAINER
    SPRING RETAINER
  • 6
    40140342S ADJUSTING RING + SCREW M5
    ADJUSTING RING + SCREW M5
  • 7
    0912050203 AH SCREW DIN0912-M 5X20
    AH SCREW DIN0912-M 5X20
  • 8
    50180095 BLEED PLUG R 1/8
    BLEED PLUG R 1/8
  • 9
    46810893 O-RING NBR 5,28X1,78
    O-RING NBR 5,28X1,78
  • 10
    36120151 SCREW PLUG M5X6
    SCREW PLUG M5X6
  • 11
    50180005 BUSHING KGW 1525 HD
    BUSHING KGW 1525 HD
  • 12
    50180168 WASHER KGW D=25
    WASHER KGW D=25
  • 13
    46180003 OIL SEAL KGW D=25
    OIL SEAL KGW D=25
  • 14
    40140337 ADAPTER BUSHING 10X24
    ADAPTER BUSHING 10X24
  • 15
    46811208 RUBBER CAP "DO NOT OPEN"
    RUBBER CAP "DO NOT OPEN"
  • 16
    52000044 STICKER WP KTM
    STICKER WP KTM
  • 20
    17187D07 MONOSHOCK RC8
    MONOSHOCK RC8
  • 21
    69004089000 HH COLLAR SCREW M10X42 WS13
    HH COLLAR SCREW M10X42 WS13
  • 97
    50180342S1 SHOCK ABSORBER FLUID 5 LT
    SHOCK ABSORBER FLUID 5 LT
  • 98
    R17004 REP. KIT BEARINGS
    REP. KIT BEARINGS
  • 99
    R17003 REP. KIT GASKET
    REP. KIT GASKET
