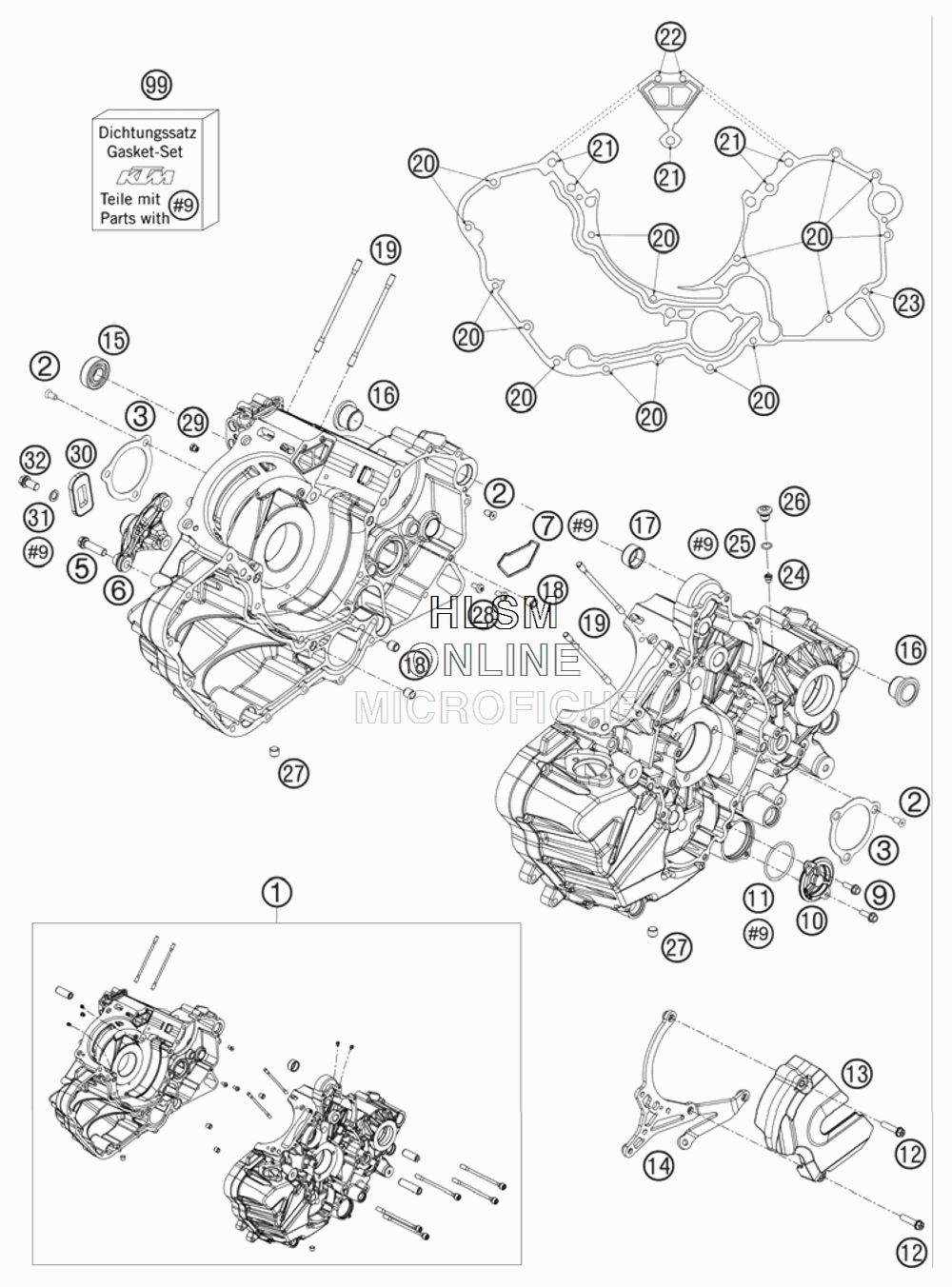

ENGINE CASE для Ktm 1190 RC8 - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    61230000044 ENGINE CASE CPL. WITH BEARINGS
    ENGINE CASE CPL. WITH BEARINGS
  • 2
    0019050103 INT. TORX FLAT HEAD M 5X10 8.8
    INT. TORX FLAT HEAD M 5X10 8.8
  • 3
    61230084000 BRACKET FOR BEARING INSERT
    BRACKET FOR BEARING INSERT
  • 5
    0025080306 HH COLLAR SCREW M8X30
    HH COLLAR SCREW M8X30
  • 6
    61230066100 ENGINE BRACKET R/S
    ENGINE BRACKET R/S
  • 7
    61230039100 MOLDED RING CASE CENTER
    MOLDED RING CASE CENTER
  • 9
    0015050163 HH COLLAR SCREW M 5X16
    HH COLLAR SCREW M 5X16
  • 10
    75038041200 OILFILTER CAP
    OILFILTER CAP
  • 11
    0770039026 O-RING 39,34X2,62 NBR 70 SH
    O-RING 39,34X2,62 NBR 70 SH
  • 12
    0025060256 HH COLLAR SCREW M6X25
    HH COLLAR SCREW M6X25
  • 13
    69030060044 PINION COVER CPL.
    PINION COVER CPL.
  • 14
    61230047044 CHAIN FAIL. PROTECTION CPL.
    CHAIN FAIL. PROTECTION CPL.
  • 15
    0412153511 CYL.ROLLER BEAR. NJ202 ECP C3
    CYL.ROLLER BEAR. NJ202 ECP C3
  • 16
    60030010000 SWING BEARING OUTSIDE LC8
    SWING BEARING OUTSIDE LC8
  • 17
    60030023000 DOWEL 20,1X24X12
    DOWEL 20,1X24X12
  • 18
    49030090000 DOWEL 9,8 X 7 X 10
    DOWEL 9,8 X 7 X 10
  • 19
    61230044000 STUD M6X110
    STUD M6X110
  • 20
    0015060803 HH COLLAR SCREW M 6X80
    HH COLLAR SCREW M 6X80
  • 21
    61230043000 CASE SCREW M8X125 AS
    CASE SCREW M8X125 AS
  • 22
    0015060903 HH COLLAR SCREW M 6X90
    HH COLLAR SCREW M 6X90
  • 23
    0015060503 HH COLLAR SCREW M 6X50
    HH COLLAR SCREW M 6X50
  • 24
    60038029200 REDUCING JET "30" M6X0,75
    REDUCING JET "30" M6X0,75
  • 25
    0770090015 O-RING 9X1,5 NBR
    O-RING 9X1,5 NBR
  • 26
    77336056095 SCREW PLUG
    SCREW PLUG
  • 27
    0906200100 PLUG DIN0913-M10X1X8
    PLUG DIN0913-M10X1X8
  • 28
    0018050103 INT. TORX OVAL HEAD M 5X10 8.8
    INT. TORX OVAL HEAD M 5X10 8.8
  • 29
    57031523140 MAIN JET 140
    MAIN JET 140
  • 30
    60005026000 SLS-VALVE
    SLS-VALVE
  • 31
    0603082131 COPPER GASK.DIN7603- 8,2X13X1
    COPPER GASK.DIN7603- 8,2X13X1
  • 32
    0025080166 HH COLLAR SCREW M8X16
    HH COLLAR SCREW M8X16
  • 99
    61230099000 GASKET SET ENGINE CPL.
    GASKET SET ENGINE CPL.
