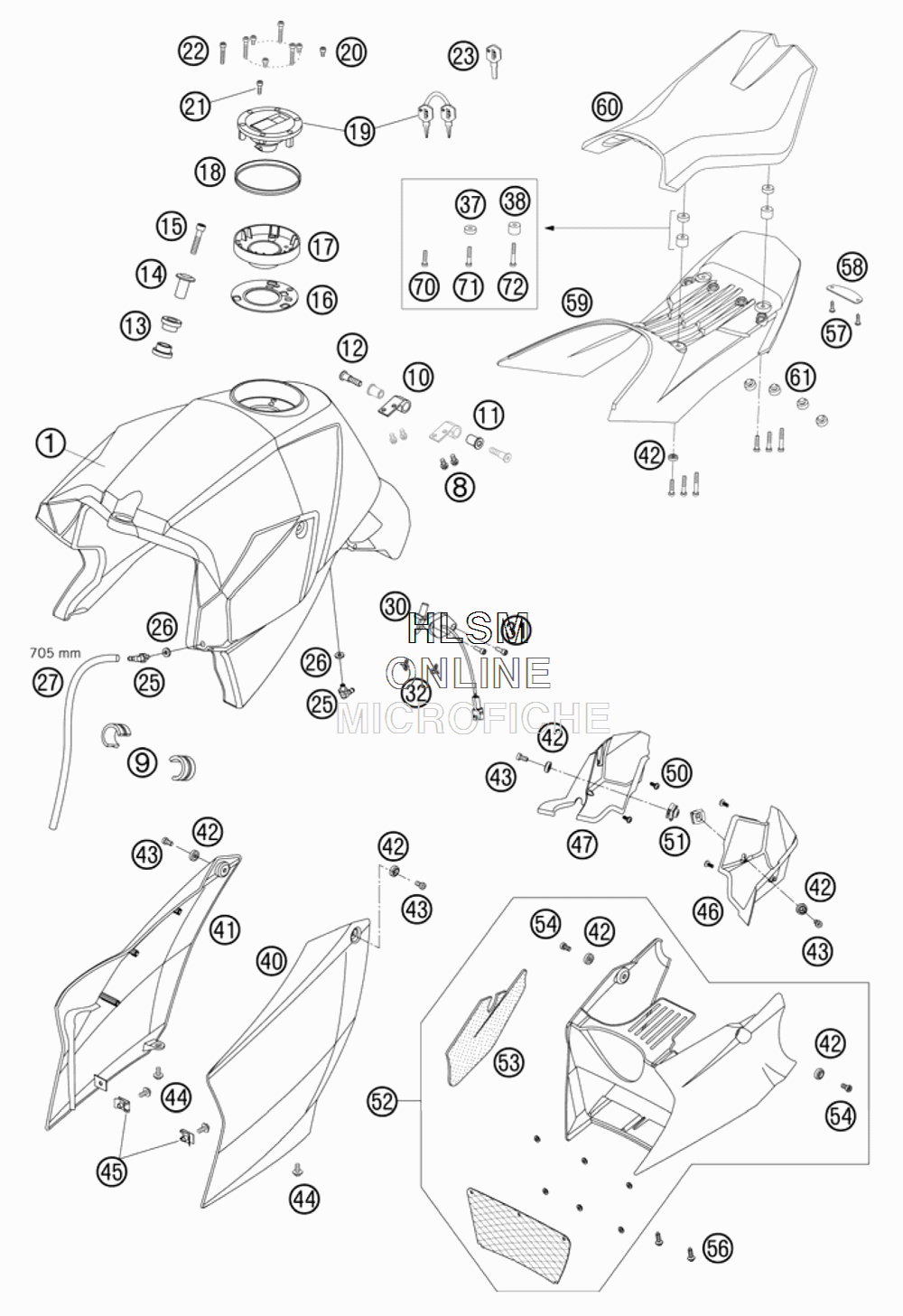

TANK SEAT COVER для Ktm 990 Superduke R - 2007 года выпуска`
-
№АртикулНазвание
-
16110701300033A FUEL TANK SD-RFUEL TANK SD-R
-
80015060123 HH COLLAR SCREW M 6X12 WS=8HH COLLAR SCREW M 6X12 WS=8
-
961007014000 SPACER FUEL TANKSPACER FUEL TANK
-
1061007025000 BRACKET FUEL TANKBRACKET FUEL TANK
-
1161007027000 RUBBER BEARING FUEL TANKRUBBER BEARING FUEL TANK
-
1261007026000 SPECIAL SCREW M10X36 AHSPECIAL SCREW M10X36 AH
-
1361007065000 TANK RUBBER BUSHING FRONTTANK RUBBER BUSHING FRONT
-
1461007060000 BEARING BUSHING OUTSIDEBEARING BUSHING OUTSIDE
-
150912080403 AH SCREW DIN912 M8X40AH SCREW DIN912 M8X40
-
1660007008051 SEAL. FLANGE F.TANK INSERTSEAL. FLANGE F.TANK INSERT
-
1760007008150 TANK INSERTTANK INSERT
-
1860007008052 SEAL. RING F. TANK INSERTSEAL. RING F. TANK INSERT
-
1961007008000 TANK PLUG CPL.TANK PLUG CPL.
-
200912050083 AH SCREW DIN 912 M 5X8AH SCREW DIN 912 M 5X8
-
210912050123 AH SCREW DIN0912-M 5X12AH SCREW DIN0912-M 5X12
-
220912050303 AH SCREW DIN0912-M 5X30AH SCREW DIN0912-M 5X30
-
2340011166100 KEY BLANK LC4/DUKE/LC8KEY BLANK LC4/DUKE/LC8
-
2560007024000 CONNECT.PIECE F.OVERFLOW M7CONNECT.PIECE F.OVERFLOW M7
-
2660007024050 GASKET FOR CONNECTING PIECEGASKET FOR CONNECTING PIECE
-
2760007026001 HOSE NBR 5,4X9,4 PER METERHOSE NBR 5,4X9,4 PER METER
-
3058207080200 GAS LEVEL SENSORGAS LEVEL SENSOR
-
310912050163 AH SCREW DIN0912-M 5X16AH SCREW DIN0912-M 5X16
-
3261011094000 CABLE TIE WITH PLUG M6CABLE TIE WITH PLUG M6
-
3761107148007 SPACER BUSHING SEAT 7MMSPACER BUSHING SEAT 7MM
-
3861107148015 SPACER BUSHING SEAT 15MMSPACER BUSHING SEAT 15MM
-
406110805000033A SPOILER L/S BLACK MATT WITH DECALSPOILER L/S BLACK MATT WITH DECAL
-
416110805100033A SPOILER R/S BLACK MATT WITH DECALSPOILER R/S BLACK MATT WITH DECAL
-
4260008045000 SPECIAL WASHER D=16,5MMSPECIAL WASHER D=16,5MM
-
430012060123 AH SCREW DIN6912 M6X12AH SCREW DIN6912 M6X12
-
440014060133 HH COLLAR SCREW M 6X13 WS=8HH COLLAR SCREW M 6X13 WS=8
-
4554603048100 RANGE CHANGE METAL NUT M6RANGE CHANGE METAL NUT M6
-
4661108050050 INNER COVER SPOILER LEFTINNER COVER SPOILER LEFT
-
4761108051050 INNER COVER SPOILER RIGHTINNER COVER SPOILER RIGHT
-
500016050121 SCREW FOR PLASTIC 50X12SCREW FOR PLASTIC 50X12
-
5150235033300 SNAP-NUT HOLDER M6 KP142SNAP-NUT HOLDER M6 KP142
-
526100802014430A FRONT-END SPOILER CPL. BL. WITH DECALFRONT-END SPOILER CPL. BL. WITH DECAL
-
5361008020150 THERMAL PROTECTION FOILTHERMAL PROTECTION FOIL
-
540012060164 AH SCREW DIN6912 M6X16 SLAH SCREW DIN6912 M6X16 SL
-
560017060203 EJOT PT SCREW K60X20 WS=6EJOT PT SCREW K60X20 WS=6
-
570081500181 SCREW FOR PLASTIC D=5X18SCREW FOR PLASTIC D=5X18
-
5861107147060 LATCH SEAT SUPPORTLATCH SEAT SUPPORT
-
5961107147000 SEAT SUPPORTSEAT SUPPORT
-
6061107140000 SEATSEAT
-
6161007040010 DISTANCE RUBBER SEATDISTANCE RUBBER SEAT
-
700984060163 AH SCREW DIN6912-M 6X16AH SCREW DIN6912-M 6X16
-
710984060203 AH SCREW DIN6912-M 6X20 8.8AH SCREW DIN6912-M 6X20 8.8
-
720012060303 AH SCREW DIN6912 M6X30 8.8AH SCREW DIN6912 M6X30 8.8
