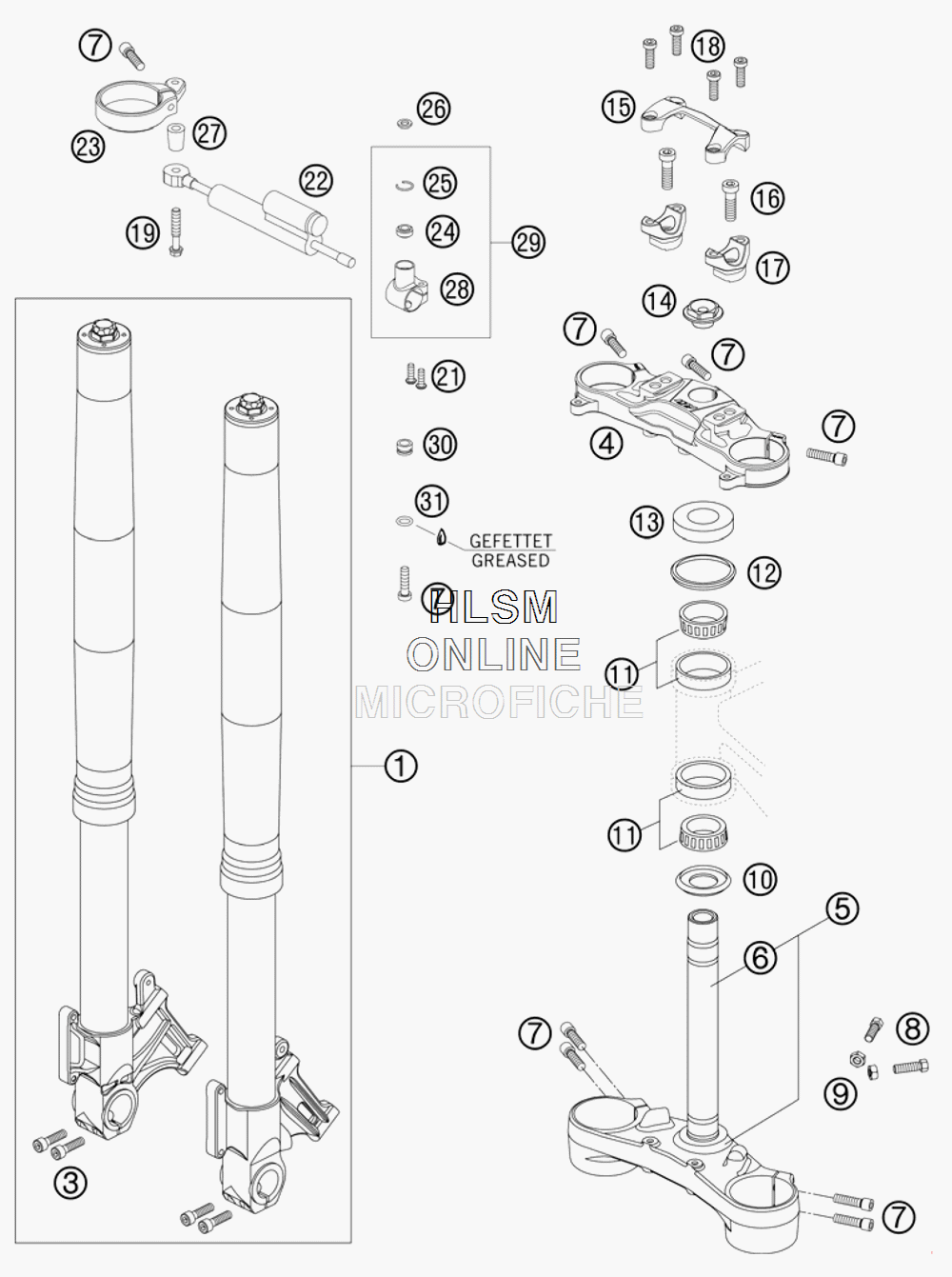

FRONT FORK для Ktm 990 Superduke R - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    14187C31 FORK 4860 ROMA 990 SD-R
    FORK 4860 ROMA 990 SD-R
  • 3
    0912080303 AH SCREW DIN0912-M 8X30
    AH SCREW DIN0912-M 8X30
  • 4
    6110113402930 TOP TRIPLE CLAMP 990SD 29MM
    TOP TRIPLE CLAMP 990SD 29MM
  • 5
    6110103202933S BOTTOM TRIPLE CLAMP
    BOTTOM TRIPLE CLAMP
  • 6
    60001033000 FORK TUBE LC8 ADV
    FORK TUBE LC8 ADV
  • 7
    0012080303 AH SCREW DIN6912-M 8X30
    AH SCREW DIN6912-M 8X30
  • 8
    59001037000 SPECIAL SCREW M8X26 WS=10
    SPECIAL SCREW M8X26 WS=10
  • 9
    0934080003 HEXAGON NUT DIN0934-M 8
    HEXAGON NUT DIN0934-M 8
  • 10
    54601084100 O-RING SUPPORT W. SEALING LIP
    O-RING SUPPORT W. SEALING LIP
  • 11
    54201081100 TAPERED ROLLER BEARING CPL.
    TAPERED ROLLER BEARING CPL.
  • 12
    54601184000 STEARING HEAD GASKET TOP
    STEARING HEAD GASKET TOP
  • 13
    61001086000 STEERING HEAD COVER
    STEERING HEAD COVER
  • 14
    54801036200 STEER.HEAD SCREW M20X1,5 SW=27
    STEER.HEAD SCREW M20X1,5 SW=27
  • 15
    6110103800030 HANDLEBAR CLAMP BLACK
    HANDLEBAR CLAMP BLACK
  • 16
    0912100356 AH SCREW DIN6912-M10X35 10.9
    AH SCREW DIN6912-M10X35 10.9
  • 17
    5940103903230 HANDLEBAR SUPPORT D=28 H=32 BL
    HANDLEBAR SUPPORT D=28 H=32 BL
  • 18
    0012080253 CYL.HEAD SCREW DIN6912-M 8X25
    CYL.HEAD SCREW DIN6912-M 8X25
  • 19
    0015080453 HH COLLAR SCREW M 8X45 WS=10
    HH COLLAR SCREW M 8X45 WS=10
  • 21
    0738060181 COU.SUNK SCR. AH ISO7380 M6X18
    COU.SUNK SCR. AH ISO7380 M6X18
  • 22
    61012005000 STEERING DAMPER
    STEERING DAMPER
  • 23
    61112006000 BRACKET STEERING DAMPER
    BRACKET STEERING DAMPER
  • 24
    0648080168 SWIVEL HEAD 8MM DIN648
    SWIVEL HEAD 8MM DIN648
  • 25
    0993016016 CIRCLIP DIN7993-RB16
    CIRCLIP DIN7993-RB16
  • 26
    61112006080 WASHER 8,3X14X2
    WASHER 8,3X14X2
  • 27
    61112006060 BUSHING 8,3X14X17X22,5
    BUSHING 8,3X14X17X22,5
  • 28
    61112006050 CLAMP STEERING DAMPER
    CLAMP STEERING DAMPER
  • 29
    61112006033 CLAMP STEERING DAMPER CPL.
    CLAMP STEERING DAMPER CPL.
  • 30
    61112006070 SPACER BUSHING 8,3X12X8
    SPACER BUSHING 8,3X12X8
  • 31
    0770090021 O-RING 9X2 VITON
    O-RING 9X2 VITON
