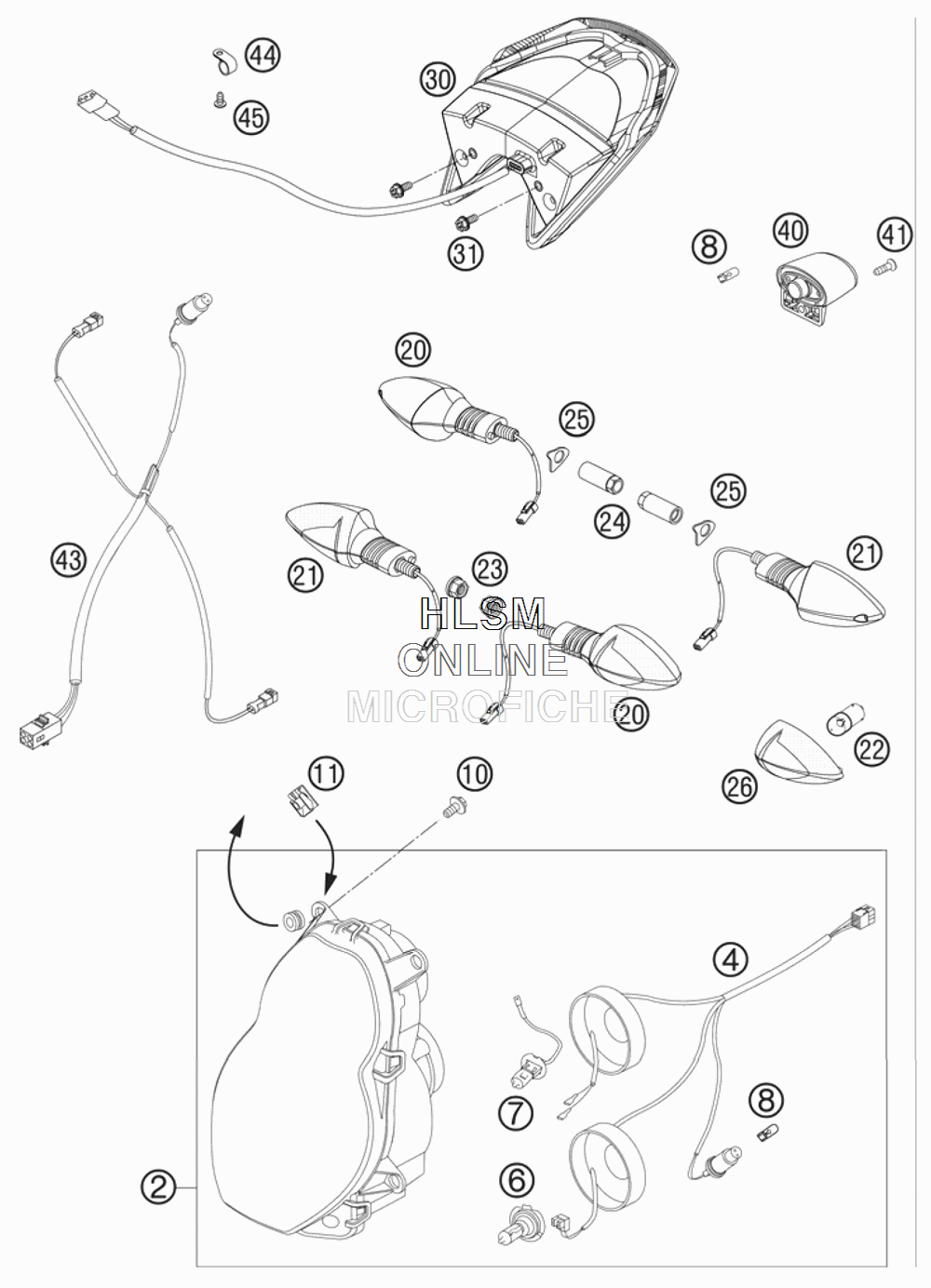

LIGHTING SYSTEM для Ktm 990 Superduke R - 2007 года выпуска

  • №
    Артикул
    Название
  • 2
    60014001000 HEAD LIGHT RIGHT TR.
    HEAD LIGHT RIGHT TR.
  • 4
    60014001050 HEAD LIGHT WIRING HARN. EU/GB
    HEAD LIGHT WIRING HARN. EU/GB
  • 6
    60014003100 BULB H7 12V 55W
    BULB H7 12V 55W
  • 7
    60014003000 BULB H3 12V 55W
    BULB H3 12V 55W
  • 8
    49011435100 BULB 12V 5W (W2,1X9,5D) PHIL.
    BULB 12V 5W (W2,1X9,5D) PHIL.
  • 10
    0014060133 HH COLLAR SCREW M 6X13 WS=8
    HH COLLAR SCREW M 6X13 WS=8
  • 11
    54603048300 RANGE CHANGE METAL NUT M6 INOX
    RANGE CHANGE METAL NUT M6 INOX
  • 20
    60114025000 FLASHER CPL.FRONT L/S REAR R/S
    FLASHER CPL.FRONT L/S REAR R/S
  • 21
    60114026000 FLASHER CPL.FRONT R/S REAR L/S
    FLASHER CPL.FRONT R/S REAR L/S
  • 22
    60114027000 BULB 12V ORANGE (RY10W)
    BULB 12V ORANGE (RY10W)
  • 23
    58414030000 HH COLLAR NUT M10X1,25 WS=13
    HH COLLAR NUT M10X1,25 WS=13
  • 24
    61014030000 FLASHER NUT M10X1,25 WS=12
    FLASHER NUT M10X1,25 WS=12
  • 25
    61014031000 FLASHER WASHER
    FLASHER WASHER
  • 26
    60114028000 FLASHER LENS L/S R/S TRANSP.
    FLASHER LENS L/S R/S TRANSP.
  • 30
    75014040000 REAR LIGHT LED
    REAR LIGHT LED
  • 31
    0015050123 HH COLLAR SCREW M 5X12 WS=8
    HH COLLAR SCREW M 5X12 WS=8
  • 40
    75014047000 LICENSE PLATE ILLUMINATION
    LICENSE PLATE ILLUMINATION
  • 41
    0081250181 SCREW FOR PLASTIC 50X18 T20
    SCREW FOR PLASTIC 50X18 T20
  • 43
    61111076000 WIRING HARNESS REAR
    WIRING HARNESS REAR
  • 44
    57013070100 PVC-CLAMP 7,9 MM HEYCO 3355
    PVC-CLAMP 7,9 MM HEYCO 3355
  • 45
    0016050121 SCREW FOR PLASTIC 50X12
    SCREW FOR PLASTIC 50X12
