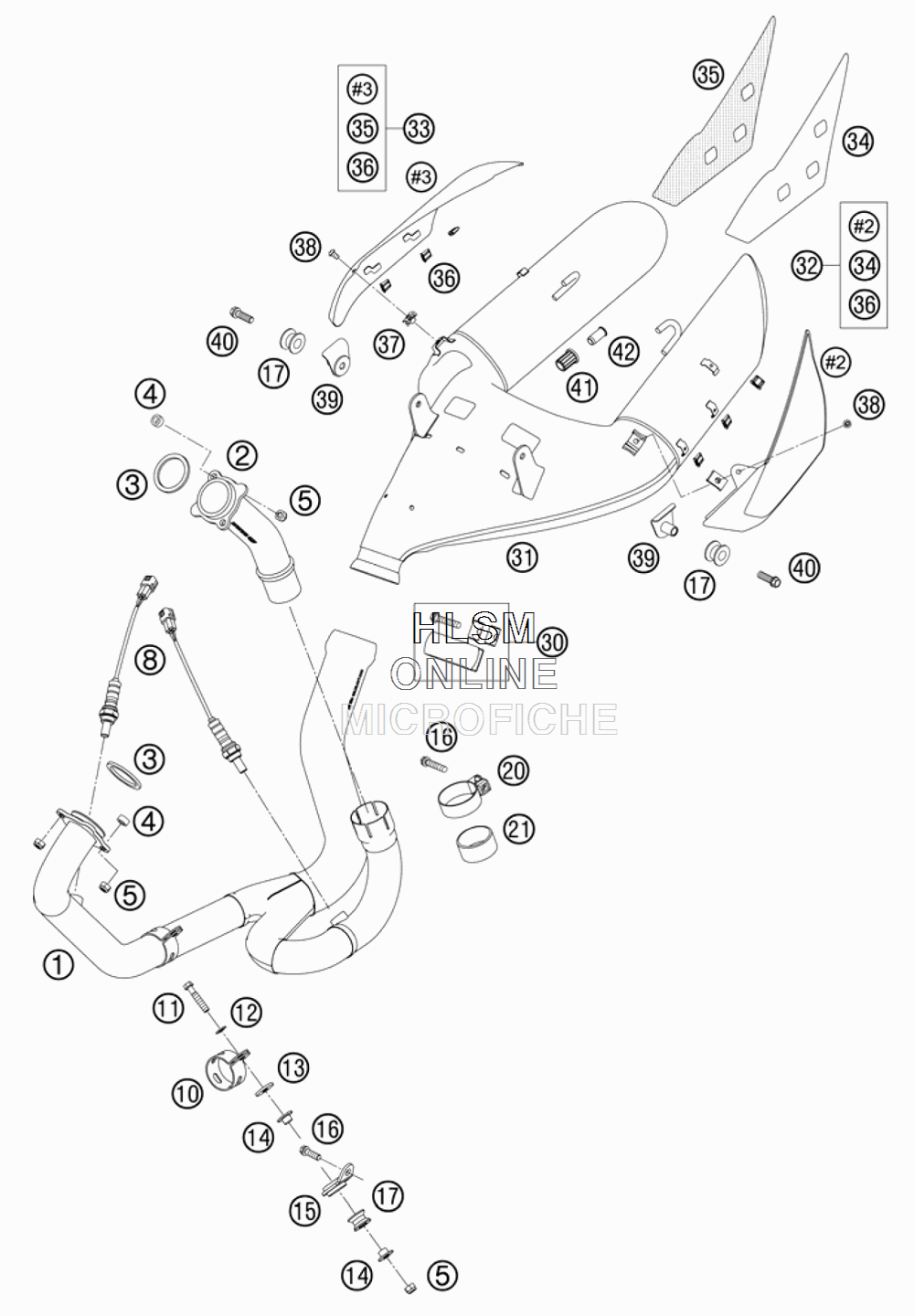

MANIFOLD SILENCER для Ktm 990 Superduke R - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    61105007000 EXHAUST PIPE FRONT
    EXHAUST PIPE FRONT
  • 2
    61105008000 EXHAUST PIPE REAR
    EXHAUST PIPE REAR
  • 3
    61005005000 EXHAUST GASKET
    EXHAUST GASKET
  • 4
    61005009000 SPACER BUSH. 8,5X15X7,5
    SPACER BUSH. 8,5X15X7,5
  • 5
    51010086100 SELF LOCKING NUT M 8 CU
    SELF LOCKING NUT M 8 CU
  • 8
    61041090000 LAMBDA SENSOR
    LAMBDA SENSOR
  • 10
    61005007049 CLAMP EXHAUST PIPE
    CLAMP EXHAUST PIPE
  • 11
    0015080403 HH COLLAR SCREW M 8X40 WS=10
    HH COLLAR SCREW M 8X40 WS=10
  • 12
    0021080003 WASHER DIN9021-A 8,4
    WASHER DIN9021-A 8,4
  • 13
    51005067000 INSOLATE WASHER 8,5X28X3
    INSOLATE WASHER 8,5X28X3
  • 14
    58405050065 COLLAR BUSH 8,5X12X23,5X10
    COLLAR BUSH 8,5X12X23,5X10
  • 15
    62505015150 EXHAUST PIPE BRACKET FRONT
    EXHAUST PIPE BRACKET FRONT
  • 16
    0015080353 HH COLLAR SCREW M 8X35 WS=10
    HH COLLAR SCREW M 8X35 WS=10
  • 17
    54305068100 DAMP. COMPONENT SILICONE GREY
    DAMP. COMPONENT SILICONE GREY
  • 20
    61105051000 EXHAUST CLAMP 52,2MM
    EXHAUST CLAMP 52,2MM
  • 21
    58405005001 GRAPHITRING 45X50X25
    GRAPHITRING 45X50X25
  • 30
    61005052000 EXHAUST CLAMP CPL.
    EXHAUST CLAMP CPL.
  • 31
    61105083000 SILENCER
    SILENCER
  • 32
    6110519002049 HEAT PROTECTOR L/S CARBON
    HEAT PROTECTOR L/S CARBON
  • 33
    6110519003049 HEAT PROTECTOR CARBON R/S
    HEAT PROTECTOR CARBON R/S
  • 34
    61105190022 THER.PROT.FOIL SILENCER L/S
    THER.PROT.FOIL SILENCER L/S
  • 35
    61105190032 THER.PROT.FOIL SILENCER R/S
    THER.PROT.FOIL SILENCER R/S
  • 36
    61005091000 DAMP. COMPON. SILICONE GREY
    DAMP. COMPON. SILICONE GREY
  • 37
    54603048100 RANGE CHANGE METAL NUT M6
    RANGE CHANGE METAL NUT M6
  • 38
    0738060101 COU.SUNK SCR. AH ISO7380 M6X10
    COU.SUNK SCR. AH ISO7380 M6X10
  • 39
    61005083011 ANTI-ROTATION ELEMENT CPL.
    ANTI-ROTATION ELEMENT CPL.
  • 40
    0015080253 HH COLLAR SCREW M 8X25 WS=10
    HH COLLAR SCREW M 8X25 WS=10
  • 41
    61005013000 RUBBER SILENCER SUPPORT
    RUBBER SILENCER SUPPORT
  • 42
    61005014000 SLEEVE SILENCER SUPPORT
    SLEEVE SILENCER SUPPORT
