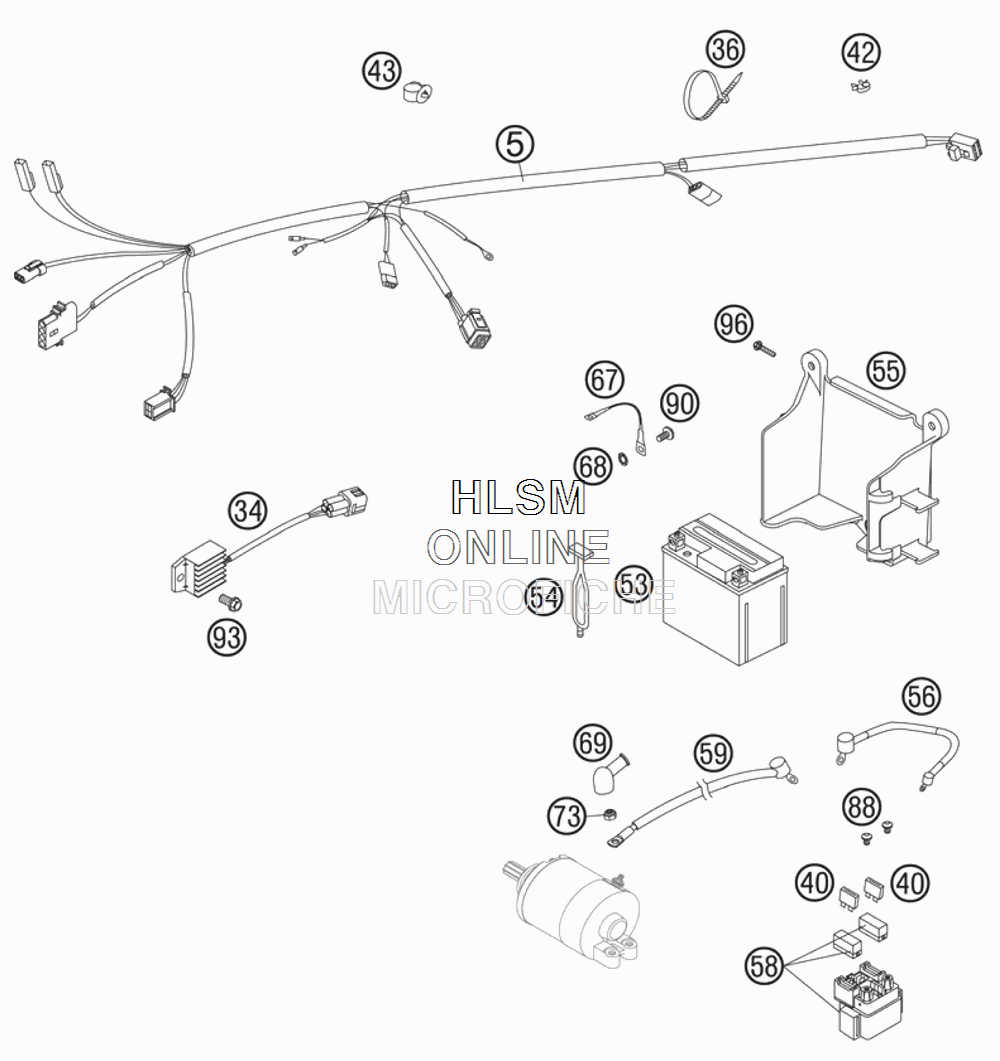

WIRING HARNESS для Ktm 525 XC-W - 2007 года выпуска

  • №
    Артикул
    Название
  • 5
    59411075100 WIRING HARNESS
    WIRING HARNESS
  • 34
    80011034000 VOLTAGE REGULATOR
    VOLTAGE REGULATOR
  • 36
    44011076200 CABLE TIE 200/3,6MM BLACK
    CABLE TIE 200/3,6MM BLACK
  • 36
    44011076305 CABLE TIE 300/4,8MM BLACK
    CABLE TIE 300/4,8MM BLACK
  • 40
    58011109110 FUSE 10 A
    FUSE 10 A
  • 42
    57013072100 WIRING HOLDER 16MM
    WIRING HOLDER 16MM
  • 43
    58111076000 CABLE SUPPORT KHS NR.150-47610
    CABLE SUPPORT KHS NR.150-47610
  • 53
    58511053000 BATTERY 12V 4(5)AH TX5L-BS
    BATTERY 12V 4(5)AH TX5L-BS
  • 54
    50303018000 RUBBER L=145MM
    RUBBER L=145MM
  • 55
    59011055100 BATTERY CARRIER PLAST.BLACK
    BATTERY CARRIER PLAST.BLACK
  • 56
    58711086000 WIRING HARNESS BATTERY
    WIRING HARNESS BATTERY
  • 58
    58211058000 STARTER RELAY 12V
    STARTER RELAY 12V
  • 59
    58411059100 STARTERCABLE 700 MM
    STARTERCABLE 700 MM
  • 67
    58411097100 GROUND CABLE D=6MM L=140MM
    GROUND CABLE D=6MM L=140MM
  • 68
    58411098100 CONTACT WASHER M6 VSV-K6
    CONTACT WASHER M6 VSV-K6
  • 69
    58440099000 PROTECTION CAP F. STARTER ENG.
    PROTECTION CAP F. STARTER ENG.
  • 73
    0985060003 SELF LOCK. NUT DIN0985-M 6
    SELF LOCK. NUT DIN0985-M 6
  • 88
    0902060083 AH OVAL SCREW ISO 7380 M 6X8
    AH OVAL SCREW ISO 7380 M 6X8
  • 90
    0014060103 HH COLLAR SCREW M 6X10
    HH COLLAR SCREW M 6X10
  • 93
    0015060123 HH COLLAR SCREW M 6X12
    HH COLLAR SCREW M 6X12
  • 96
    0017060203 EJOT PT SCREW K60X20
    EJOT PT SCREW K60X20
