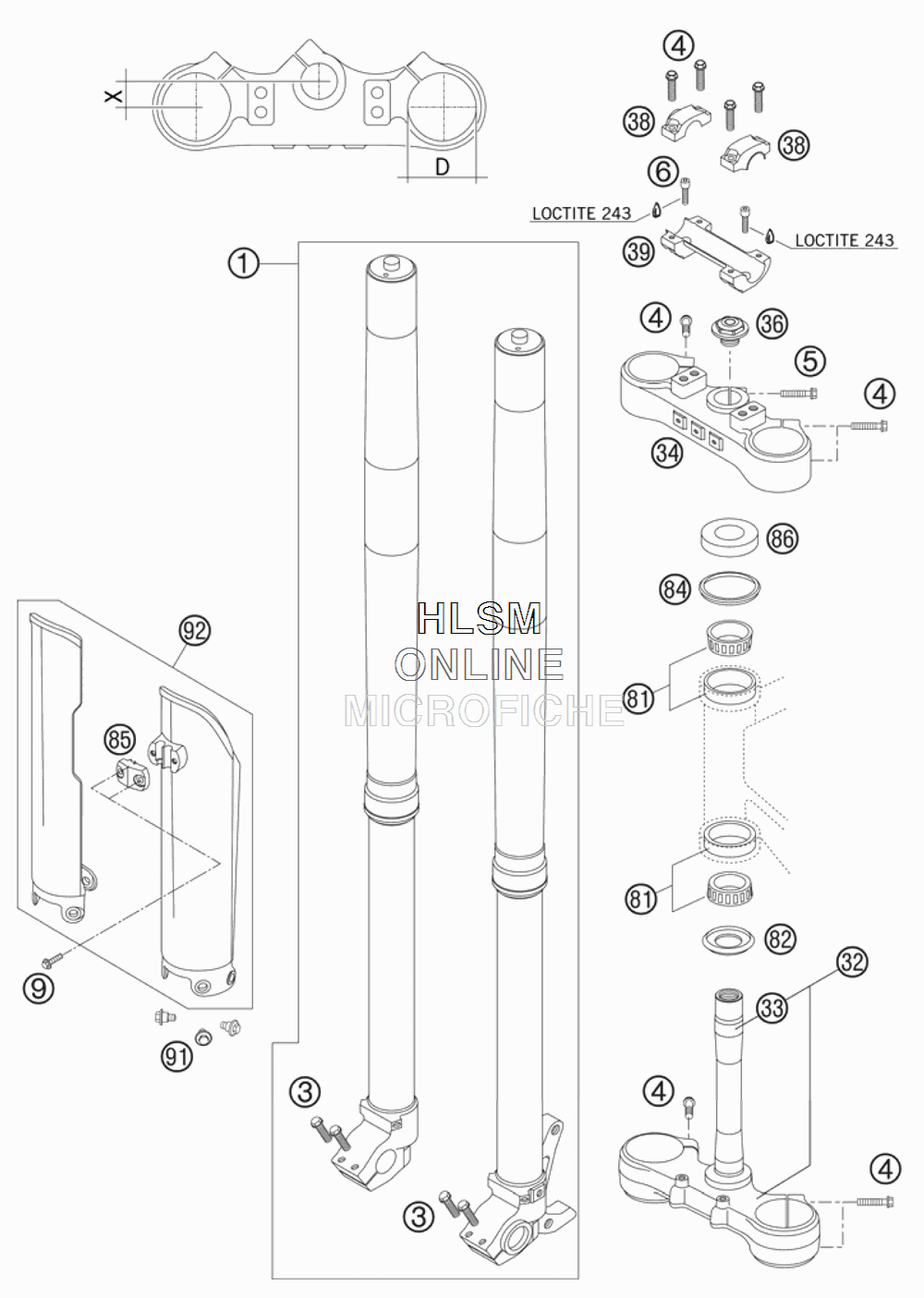

FRONT FORK для Ktm 525 XC-W - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    14187C06 FORK KPL. WP D48
    FORK KPL. WP D48
  • 3
    0015080253 HH COLLAR SCREW M 8X25
    HH COLLAR SCREW M 8X25
  • 4
    0015080303 HH COLLAR SCREW M 8X30
    HH COLLAR SCREW M 8X30
  • 5
    0015080353 HH COLLAR SCREW M 8X35
    HH COLLAR SCREW M 8X35
  • 6
    0912100250 AH SCREW DIN 6912-M10X25,10.9,L
    AH SCREW DIN 6912-M10X25,10.9,L
  • 9
    0017060203 EJOT PT SCREW K60X20
    EJOT PT SCREW K60X20
  • 32
    59001132120 BOT.TRIP.CL.CPL. X= 20MM/D = 60MM
    BOT.TRIP.CL.CPL. X= 20MM/D = 60MM
  • 33
    50101033100 FORK TUBE L= 244
    FORK TUBE L= 244
  • 34
    59001034120 TOP TRIPLE CLAMP X= 20MM/D = 54MM
    TOP TRIPLE CLAMP X= 20MM/D = 54MM
  • 36
    54801036000 STEER.HEAD SCREW M20X1,5 W S= 27
    STEER.HEAD SCREW M20X1,5 W S= 27
  • 38
    59001038200 HANDLEBAR CLAMP D = 28MM
    HANDLEBAR CLAMP D = 28MM
  • 39
    59001039100 HANDLEBAR SUPPORT 28MM
    HANDLEBAR SUPPORT 28MM
  • 81
    54201081100 TAPERED ROLLER BEARING CPL.
    TAPERED ROLLER BEARING CPL.
  • 82
    54601084100 O-RING SUPPORT W. SEALING LIP
    O-RING SUPPORT W. SEALING LIP
  • 84
    54601184000 STEARING HEAD GASKET TOP
    STEARING HEAD GASKET TOP
  • 85
    5900108510004 CLAMP F.SPEED .CABLE ORANGE
    CLAMP F.SPEED .CABLE ORANGE
  • 86
    54201086000 STEERING HEAD COVER
    STEERING HEAD COVER
  • 91
    59001092050 SPECIAL SCREW M6X12,5
    SPECIAL SCREW M6X12,5
  • 92
    5900109400004 FORK PROT. L/S + R/S ORG
    FORK PROT. L/S + R/S ORG
