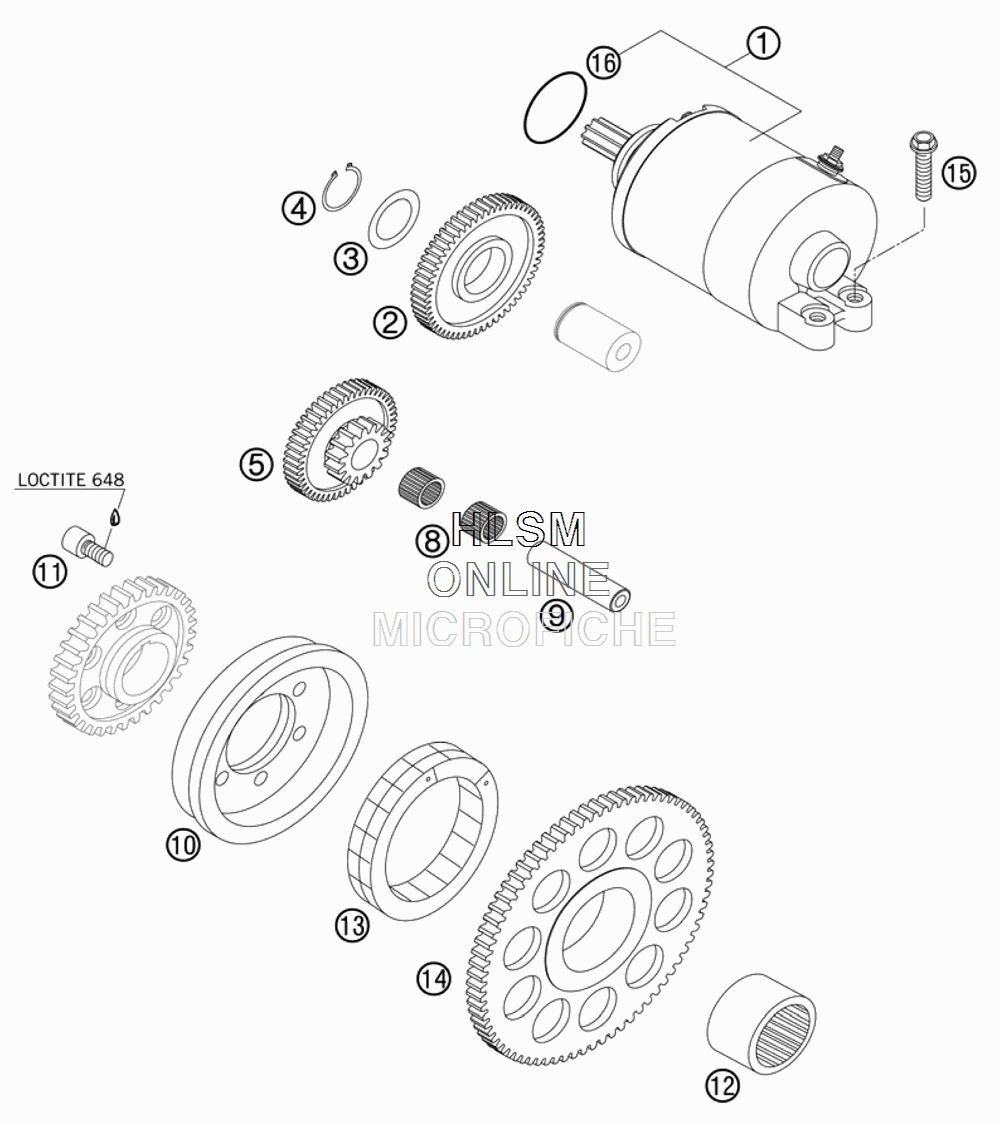

ELECTRIC STARTER для Ktm 525 XC-W - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    59040001000 E-STARTER ENGINE KPL. 0,45 KW
    E-STARTER ENGINE KPL. 0,45 KW
  • 2
    59040022258 GEAR WHEEL
    GEAR WHEEL
  • 3
    54633090000 STOP DISK 17,2X25X1
    STOP DISK 17,2X25X1
  • 4
    0471170010 CIRCLIP DIN0471-17X1
    CIRCLIP DIN0471-17X1
  • 5
    59040016000 TORQUE LIMITER
    TORQUE LIMITER
  • 8
    0405101310 NEEDLE BEARING K 10X13X10 02
    NEEDLE BEARING K 10X13X10 02
  • 9
    59040029000 BEARING BOLT
    BEARING BOLT
  • 10
    59040025000 FREE WHEEL HUB
    FREE WHEEL HUB
  • 11
    0912060106 AH SCREW DIN0912-M 6X10 10.9
    AH SCREW DIN0912-M 6X10 10.9
  • 12
    0618301617 NEEDLE BEARING HK 3016 B
    NEEDLE BEARING HK 3016 B
  • 13
    58440026000 FREE-WHEEL FWD 332008 BLS
    FREE-WHEEL FWD 332008 BLS
  • 14
    59040020175 FREEWHEEL GEAR
    FREEWHEEL GEAR
  • 15
    0015060203 HH COLLAR SCREW M 6X20 WS=8
    HH COLLAR SCREW M 6X20 WS=8
  • 16
    0770250030 O-RING 25,00X3,00 NBR 70
    O-RING 25,00X3,00 NBR 70
  • 17
    59040034000 CAP COVER
    CAP COVER
  • 18
    0015060123 HH COLLAR SCREW M 6X12 WS=8
    HH COLLAR SCREW M 6X12 WS=8
  • 19
    0125060003 WASHER DIN0125-A 6,4
    WASHER DIN0125-A 6,4
