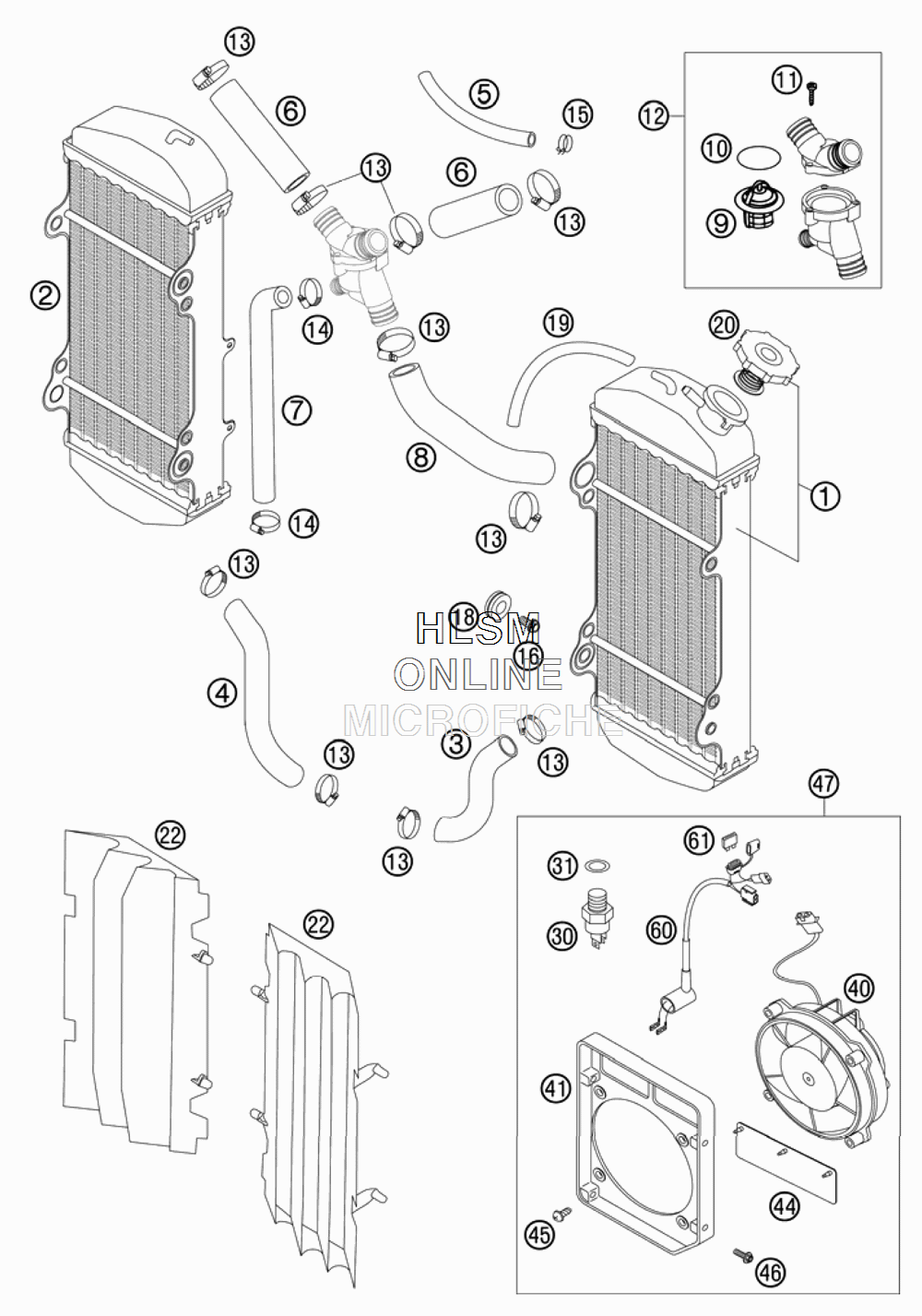

COOLING SYSTEM для Ktm 525 XC-W - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    59035007300 RADIATOR L/S 45.407
    RADIATOR L/S 45.407
  • 2
    59035008400 RADIATOR R/S 45.409
    RADIATOR R/S 45.409
  • 3
    59035024100 RADIATOR HOSE L/S RAD.-CYL.
    RADIATOR HOSE L/S RAD.-CYL.
  • 4
    59035124100 RADIATOR HOSE R/S RAD.-CYL.
    RADIATOR HOSE R/S RAD.-CYL.
  • 5
    54435024001 HOSE ID 7,5 PER METER
    HOSE ID 7,5 PER METER
  • 6
    59035126100 RADIATOR HOSE RAD.-THERMOS.
    RADIATOR HOSE RAD.-THERMOS.
  • 7
    59035025101 RADIATOR HOSE SECONDARY
    RADIATOR HOSE SECONDARY
  • 8
    59035025100 RADIATOR HOSE THERMOS.-HEAD
    RADIATOR HOSE THERMOS.-HEAD
  • 9
    59435017000 THERMOSTAT 70 DEGREES
    THERMOSTAT 70 DEGREES
  • 10
    0770320020 O-RING 32,00X2,00
    O-RING 32,00X2,00
  • 11
    0016040183 SCREW FOR PLASTIC D=4X18
    SCREW FOR PLASTIC D=4X18
  • 12
    59435013044 THERMOSTAT CPL. 70 DEGREES
    THERMOSTAT CPL. 70 DEGREES
  • 13
    10001020000 HOSE CLAMP GEMI 16-27
    HOSE CLAMP GEMI 16-27
  • 14
    58335099000 HOSE CLAMP GEMI 10-16
    HOSE CLAMP GEMI 10-16
  • 15
    50231005000 HOSE CLAMP YDNAC 10119 11MM
    HOSE CLAMP YDNAC 10119 11MM
  • 16
    0024060123 COLLAR SCREW M6X12 ISA
    COLLAR SCREW M6X12 ISA
  • 18
    41001052000 RUBBER SLEEVE D=12MM
    RUBBER SLEEVE D=12MM
  • 19
    31007107001 PVC-HOSE 6X9 MM PER METER
    PVC-HOSE 6X9 MM PER METER
  • 20
    59035009000 RADIAT.CAP 20,3PSI (1,4BAR)
    RADIAT.CAP 20,3PSI (1,4BAR)
  • 22
    5903504000004 RADIAT. PROTECT.RAC. ORANGE
    RADIAT. PROTECT.RAC. ORANGE
  • 22
    5903504000030 RADIAT. PROTECT. RAC. BLACK
    RADIAT. PROTECT. RAC. BLACK
  • 30
    58035045000 THERMOSWITCH 80-85 DG
    THERMOSWITCH 80-85 DG
  • 31
    0603142015 ALU SEALRING DIN7603-14X20X1,5
    ALU SEALRING DIN7603-14X20X1,5
  • 40
    58435041000 FAN CPL. 12V
    FAN CPL. 12V
  • 41
    59035044000 FAN CAP
    FAN CAP
  • 44
    58435044050 FAN FLAP RUBBER
    FAN FLAP RUBBER
  • 45
    0081500181 SCREW FOR PLASTIC D=5X18
    SCREW FOR PLASTIC D=5X18
  • 46
    0017060203 EJOT PT SCREW K60X20 WS=6
    EJOT PT SCREW K60X20 WS=6
  • 47
    59035041044 FAN CPL.
    FAN CPL.
  • 60
    59011079000 FAN WIRING HARNESS
    FAN WIRING HARNESS
  • 61
    58011109105 FUSE 5 A
    FUSE 5 A
