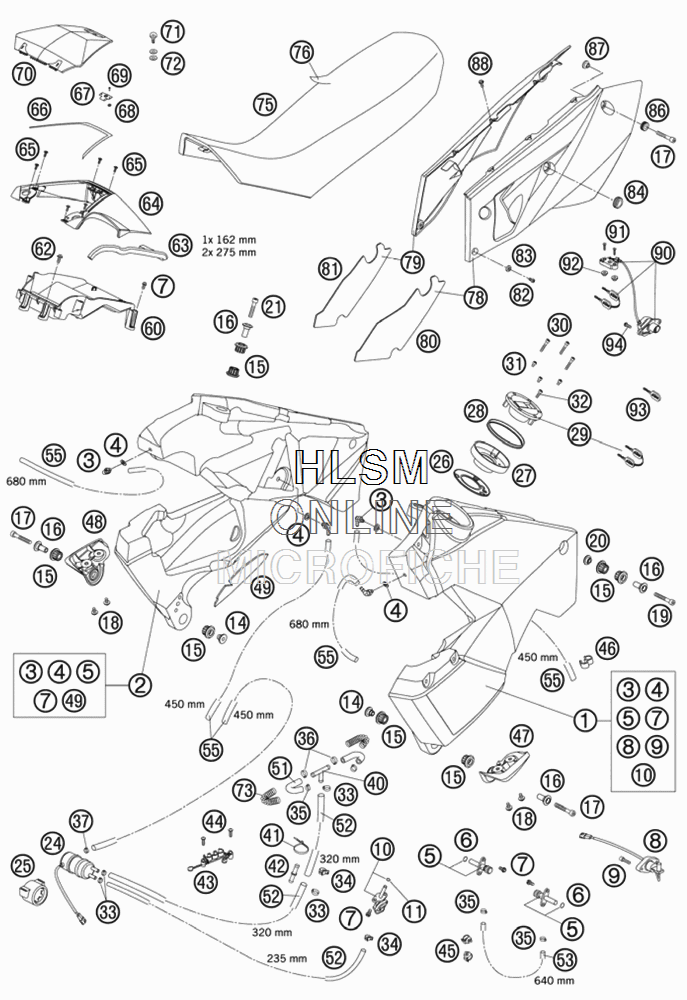

TANK SEAT COVER для Ktm 950 ADVENTURE ORANGE - 2006 года выпуска
-
№АртикулНазвание
-
16000701304470 FUEL TANK L/S CPL. ORANGE DECAL TAKE INFUEL TANK L/S CPL. ORANGE DECAL TAKE IN
-
26000711304470 FUEL TANK R/S CPL. ORANGE DECAL TAKE INFUEL TANK R/S CPL. ORANGE DECAL TAKE IN
-
360007024000 CONNECT.PIECE F.OVERFLOW M7CONNECT.PIECE F.OVERFLOW M7
-
460007024050 GASKET FOR CONNECTING PIECEGASKET FOR CONNECTING PIECE
-
558507003000 FUEL COCK CPL. SMALL RALLYEFUEL COCK CPL. SMALL RALLYE
-
655007006200 O-RING 11X1,8 NBR 70O-RING 11X1,8 NBR 70
-
70015060123 HH COLLAR SCREW M 6X12 WS=8HH COLLAR SCREW M 6X12 WS=8
-
858207080000 GAS-LEVEL SENSOR ADV.GAS-LEVEL SENSOR ADV.
-
90912050163 AH SCREW DIN0912-M 5X16AH SCREW DIN0912-M 5X16
-
1050307005000 GAS COCK MIKUNI ON/OFFGAS COCK MIKUNI ON/OFF
-
110770130023 O-RING 13,00X2,30O-RING 13,00X2,30
-
1460007062000 BEAR.BUSH.INSIDE L=15,5MMBEAR.BUSH.INSIDE L=15,5MM
-
1560007065000 TANK RUBBER BUSHINGTANK RUBBER BUSHING
-
1660007060000 BEARING BUSHING OUTSIDEBEARING BUSHING OUTSIDE
-
170912080553 AH SCREW DIN912 M8X55AH SCREW DIN912 M8X55
-
180014060133 HH COLLAR SCREW M 6X13 WS=8HH COLLAR SCREW M 6X13 WS=8
-
190912080503 AH SCREW DIN912 M8X50AH SCREW DIN912 M8X50
-
2060007061000 BEARING BUSHING INSIDEBEARING BUSHING INSIDE
-
210912080403 AH SCREW DIN912 M8X40AH SCREW DIN912 M8X40
-
2460012088100 FUEL PUMPFUEL PUMP
-
2560012088050 FUEL PUMP HOLDERFUEL PUMP HOLDER
-
2660007008051 SEAL. FLANGE F.TANK INSERTSEAL. FLANGE F.TANK INSERT
-
2760007008150 TANK INSERTTANK INSERT
-
2860007008052 SEAL. RING F. TANK INSERTSEAL. RING F. TANK INSERT
-
2960007008000 TANK PLUG L/S+R/S CPL.TANK PLUG L/S+R/S CPL.
-
300912050303 AH SCREW DIN0912-M 5X30AH SCREW DIN0912-M 5X30
-
310912050083 AH SCREW DIN 912 M 5X8AH SCREW DIN 912 M 5X8
-
320912050123 AH SCREW DIN0912-M 5X12AH SCREW DIN0912-M 5X12
-
3300050153706 VARIABLE ONE-EAR CLAMP 15,3MMVARIABLE ONE-EAR CLAMP 15,3MM
-
3400049140121 CLAMP STD DN14CLAMP STD DN14
-
3558031005000 CLAMP YDNAC 10128 12MMCLAMP YDNAC 10128 12MM
-
3600050140706 VARIABLE ONE-EAR CLAMP 14,0MMVARIABLE ONE-EAR CLAMP 14,0MM
-
3758007117000 YDNAC-CLAMP 10107 10MMYDNAC-CLAMP 10107 10MM
-
4060007015000 T-CONNECTOR 8MMT-CONNECTOR 8MM
-
4144011076200 CABLE TIE 200/3,6MM BLACKCABLE TIE 200/3,6MM BLACK
-
4260007015010 HOSE CONNECTOR 8MMHOSE CONNECTOR 8MM
-
4360011057000 HOSE HOLDER TRIPLEHOSE HOLDER TRIPLE
-
440081500181 SCREW FOR PLASTIC D=5X18SCREW FOR PLASTIC D=5X18
-
4557013072100 WIRING HOLDER 16MMWIRING HOLDER 16MM
-
4655011022100 CLAMP D=6/8MM, BLACKCLAMP D=6/8MM, BLACK
-
4760007013050 TANK PROTECTOR L/STANK PROTECTOR L/S
-
4860007113050 TANK PROTECTOR R/STANK PROTECTOR R/S
-
4960007095000 THERMAL PROT.FOIL TANK R/STHERMAL PROT.FOIL TANK R/S
-
5160007016000 FUEL PREFORMED HOSEFUEL PREFORMED HOSE
-
5260007016001 HOSE 7,5X13,5 PER METERHOSE 7,5X13,5 PER METER
-
5360007116001 HOSE 6X12 PER METERHOSE 6X12 PER METER
-
5560007026001 HOSE NBR 5,4X9,4 PER METERHOSE NBR 5,4X9,4 PER METER
-
60*60007023100 STORAGE BOX BOTTOM PARTSTORAGE BOX BOTTOM PART
-
620014060153 HH COLLAR SCREW M 6X15 WS=8HH COLLAR SCREW M 6X15 WS=8
-
6358312085100 EDGE PROTECTOR PER METEREDGE PROTECTOR PER METER
-
646000701900070 STOR. BOX CENT. PART ORANGESTOR. BOX CENT. PART ORANGE
-
650016050121 SCREW FOR PLASTIC 50X12SCREW FOR PLASTIC 50X12
-
6660007019050 GASKET F.STOR.BOX CENT.PARTGASKET F.STOR.BOX CENT.PART
-
6745007040050 QUICK RELEASE LATCHPLATEQUICK RELEASE LATCHPLATE
-
680021030003 WASHER DIN9021-A 3,2MMWASHER DIN9021-A 3,2MM
-
690011321000 DUMMY RIVET 3,2X10 ALUDUMMY RIVET 3,2X10 ALU
-
706000702000070 COVER F. STORAGE BOX ORANGECOVER F. STORAGE BOX ORANGE
-
7160007020030 QUICK RELEASE PIN WITH RINGQUICK RELEASE PIN WITH RING
-
7260007020040 PLASTIC WASHERPLASTIC WASHER
-
7360007016050 PROTECTION SPRING FUEL HOSEPROTECTION SPRING FUEL HOSE
-
756000704020030 SEAT BLACKSEAT BLACK
-
766000704025030 SEAT COVER BLACKSEAT COVER BLACK
-
786000804110070 SIDE COVER L/S REAR ORANGE DECAL TAKE INSIDE COVER L/S REAR ORANGE DECAL TAKE IN
-
796000804210070 SIDE COVER R/S REAR ORANGE DECAL TAKE INSIDE COVER R/S REAR ORANGE DECAL TAKE IN
-
8060008041050 THER.PROT.FOIL SI.COVER L/STHER.PROT.FOIL SI.COVER L/S
-
8160008042050 THER.PROT.FOIL SI.COVER R/STHER.PROT.FOIL SI.COVER R/S
-
820984060163 AH SCREW DIN6912-M 6X16AH SCREW DIN6912-M 6X16
-
8360008045000 SPECIAL WASHER D=16,5MMSPECIAL WASHER D=16,5MM
-
8458707050050 RUBBER SLEEVE F.SEAT LOCKRUBBER SLEEVE F.SEAT LOCK
-
8641001052000 RUBBER SLEEVE D=12MMRUBBER SLEEVE D=12MM
-
8760012008002 COLLAR BUSHING 8,2X12X20X9COLLAR BUSHING 8,2X12X20X9
-
880017060203 EJOT PT SCREW K60X20 WS=6EJOT PT SCREW K60X20 WS=6
-
9060007050000 SEAT LOCK LC8 ADV.SEAT LOCK LC8 ADV.
-
910738060301 COU.SUNK SCR. AH ISO7380 M6X30COU.SUNK SCR. AH ISO7380 M6X30
-
9260008013050 DISTANCE BUSH. 7X12X18X3,7DISTANCE BUSH. 7X12X18X3,7
-
9340011166100 KEY BLANK LC4/DUKE/LC8KEY BLANK LC4/DUKE/LC8
-
940081500181 SCREW FOR PLASTIC D=5X18SCREW FOR PLASTIC D=5X18
