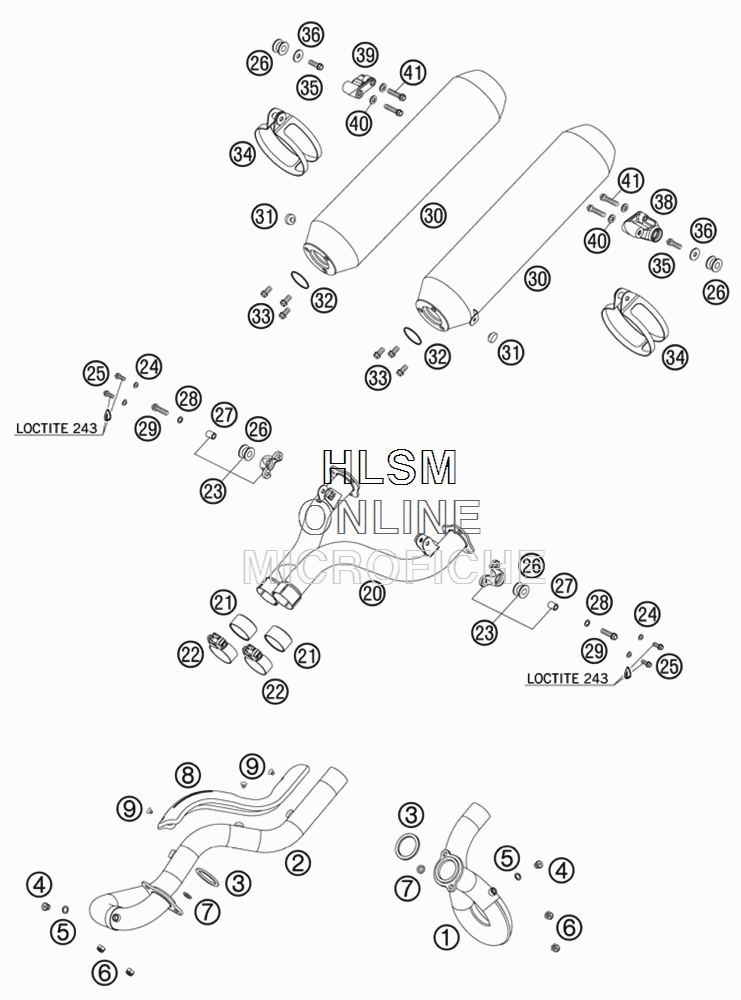

EXHAUST CONTROL для Ktm 950 ADVENTURE ORANGE - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    60005008000 EXHAUST PIPE REAR
    EXHAUST PIPE REAR
  • 2
    60005007100 EXHAUST PIPE FRONT
    EXHAUST PIPE FRONT
  • 3
    60005005000 GASKET
    GASKET
  • 4*
    0908100000 PLUG DIN0908-M10X1 A2
    PLUG DIN0908-M10X1 A2
  • 5
    0603100141 COPPER GASKET DIN7603-10X14X1
    COPPER GASKET DIN7603-10X14X1
  • 6
    51010086100 SELF LOCKING NUT M 8 CU
    SELF LOCKING NUT M 8 CU
  • 7
    0125080003 WASHER DIN0125-A 8,4
    WASHER DIN0125-A 8,4
  • 8
    60005011000 THERMAL SHIELD
    THERMAL SHIELD
  • 9
    0991060082 FLAT H.SCREW M6X8 DIN7991 NIRO
    FLAT H.SCREW M6X8 DIN7991 NIRO
  • 20
    60005048000 DISTRIBUTOR TUBE LC8
    DISTRIBUTOR TUBE LC8
  • 21
    60005005001 GRAPHIT RING 42X47X25
    GRAPHIT RING 42X47X25
  • 22*
    60105051000 CLAMP CPL. D=49,2MM
    CLAMP CPL. D=49,2MM
  • 23
    58405085044 SILENCER BRACKET CPL. 2001
    SILENCER BRACKET CPL. 2001
  • 24
    0137060003 SPRING WASHER DIN0137-B 6
    SPRING WASHER DIN0137-B 6
  • 25
    0015060203 HH COLLAR SCREW M 6X20 WS=8
    HH COLLAR SCREW M 6X20 WS=8
  • 26
    54305068100 DAMP. COMPONENT SILICONE GREY
    DAMP. COMPONENT SILICONE GREY
  • 27
    56505069000 SPACER BUSHING 8,4X12X16
    SPACER BUSHING 8,4X12X16
  • 28
    36003014000 LOCK WASHER 8MM
    LOCK WASHER 8MM
  • 29
    0015080303 HH COLLAR SCREW M 8X30 WS=10
    HH COLLAR SCREW M 8X30 WS=10
  • 30
    60005183000 SILENCER LC8 USA
    SILENCER LC8 USA
  • 31
    54308042000 RUBBER BUFFER
    RUBBER BUFFER
  • 32
    60005005002 EXHAUST GASKET
    EXHAUST GASKET
  • 33
    0015080163 HH COLLAR SCREW M 8X16 WS=10
    HH COLLAR SCREW M 8X16 WS=10
  • 34
    60005095000 CLAMP FOR SILENCER CPL.
    CLAMP FOR SILENCER CPL.
  • 35
    0015080253 HH COLLAR SCREW M 8X25 WS=10
    HH COLLAR SCREW M 8X25 WS=10
  • 36
    0021080003 WASHER DIN9021-A 8,4
    WASHER DIN9021-A 8,4
  • 38
    60005085000 SILENCER/HANDLE HOLDER L/S
    SILENCER/HANDLE HOLDER L/S
  • 39
    60005086000 SILENCER/HANDLE HOLDER R/S
    SILENCER/HANDLE HOLDER R/S
  • 40
    0125080003 WASHER DIN0125-A 8,4
    WASHER DIN0125-A 8,4
  • 41
    0015080353 HH COLLAR SCREW M 8X35 WS=10
    HH COLLAR SCREW M 8X35 WS=10
