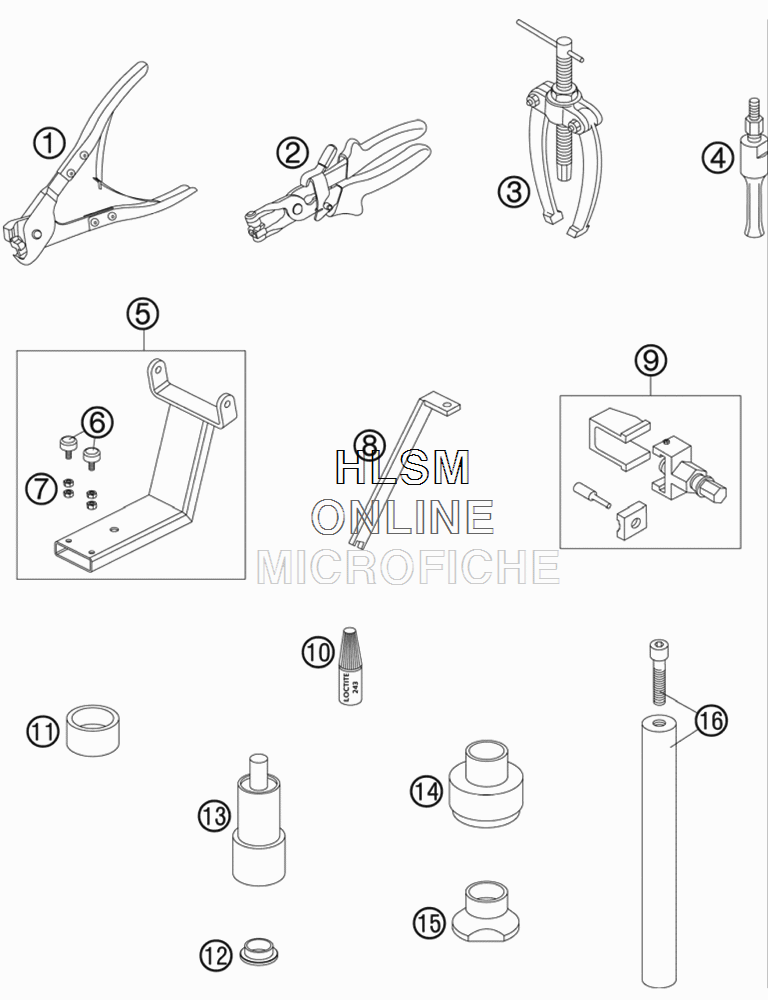

SPECIAL TOOLS - FRAME для Ktm 950 ADVENTURE ORANGE - 2006 года выпуска
-
№АртикулНазвание
-
160029057000 PLIERS F. VAR.ONE-EAR CLAMPPLIERS F. VAR.ONE-EAR CLAMP
-
260029057100 PLIERS F. CLAMPPLIERS F. CLAMP
-
315112017000 BUSHING EXTRACTORBUSHING EXTRACTOR
-
460029018000 INTERN.BEAR.PULLER 28 MMINTERN.BEAR.PULLER 28 MM
-
560029055100 ATTACHMENT WHEELED JACKATTACHMENT WHEELED JACK
-
658303070000 STOP RUBBER M8STOP RUBBER M8
-
70934080003 HEXAGON NUT DIN0934-M 8HEXAGON NUT DIN0934-M 8
-
860029055000 HOLDER CENTER STANDHOLDER CENTER STAND
-
960029020000 RIVET TOOLRIVET TOOL
-
106899785 LOCTITE 243 BLUE 6CCMLOCTITE 243 BLUE 6CCM
-
1160029056000 ANVIL DOLLYANVIL DOLLY
-
1260010013000 SPACER BUSH. REAR WHEEL R/S FOR SWINGARM BEARINGSPACER BUSH. REAR WHEEL R/S FOR SWINGARM BEARING
-
1358429086000 PRESS. TOOL F. LINK BEAR. LC4PRESS. TOOL F. LINK BEAR. LC4
-
1458429091000 MOUNT.TOOL STEER.HEAD BEAR.LC4MOUNT.TOOL STEER.HEAD BEAR.LC4
-
1558429092000 DISMOUNT. TOOL F. BEARINGS LC4DISMOUNT. TOOL F. BEARINGS LC4
-
1658429089000 HOLDING TOOL CHASSIS LC4HOLDING TOOL CHASSIS LC4
