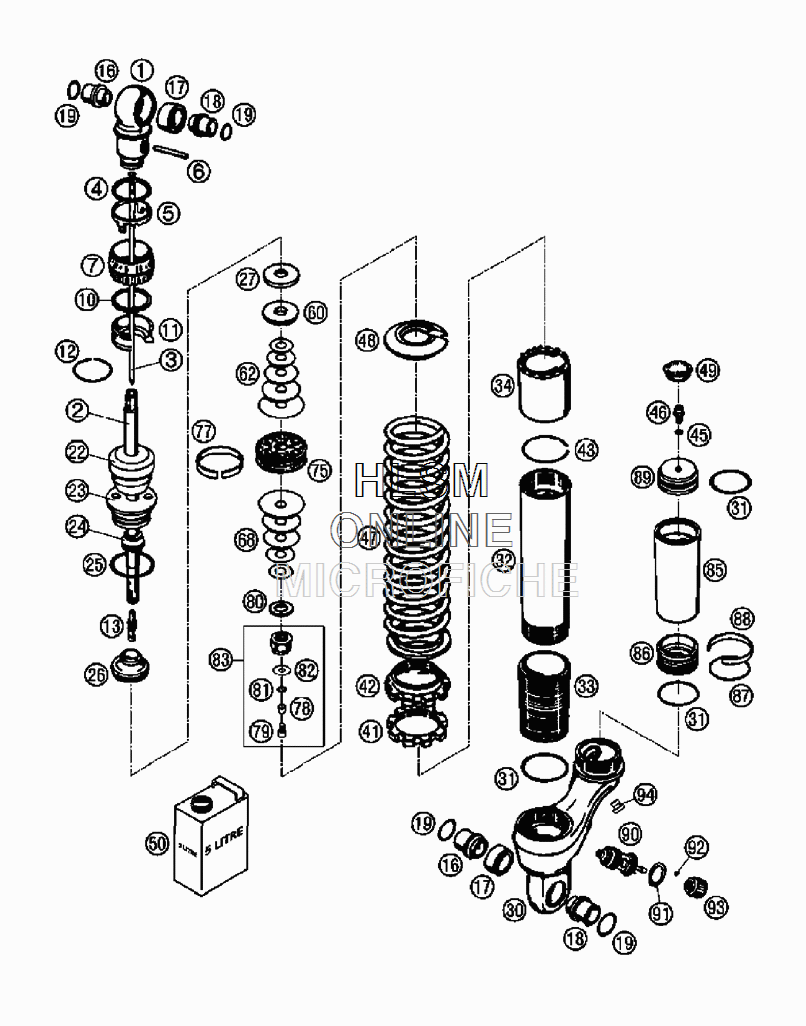

MONOSHOCK - DISASSEMBLED для Ktm 65 SX - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    46811525 SHOCK ABS. BOTTOM L=46
    SHOCK ABS. BOTTOM L=46
  • 2
    36120586 PISTON ROD D=14, L=126
    PISTON ROD D=14, L=126
  • 3
    46811401S NEEDLE CPL. D=4, L=142
    NEEDLE CPL. D=4, L=142
  • 4
    46811222 O-RING 36X0,5
    O-RING 36X0,5
  • 5
    46811263 WASHER
    WASHER
  • 6
    46811261 PIN 4X35
    PIN 4X35
  • 7
    46811262 ADJ. KNOB D=41
    ADJ. KNOB D=41
  • 10
    46811221 O-RING 35X3
    O-RING 35X3
  • 11
    46811367 INTERMEDIATO RING H=4
    INTERMEDIATO RING H=4
  • 12
    46811268 CIRCLIP 22X1,2
    CIRCLIP 22X1,2
  • 13
    46811259 NEEDLE SEAT 5X17,25
    NEEDLE SEAT 5X17,25
  • 16
    46811076 ADAPTOR BUSH KGW 10X20
    ADAPTOR BUSH KGW 10X20
  • 17
    46811027 BUSHING KGW 1525
    BUSHING KGW 1525
  • 18
    46811077 ADAPTOR BUSH KGW 10X22
    ADAPTOR BUSH KGW 10X22
  • 19
    46811050 SEAL KGW
    SEAL KGW
  • 22
    36120135 BUMP RUBBER WP65 RED
    BUMP RUBBER WP65 RED
  • 23
    36120650 SCREW CAP M37,65 STEEL
    SCREW CAP M37,65 STEEL
  • 24
    46811044 DUST SEAL 1424
    DUST SEAL 1424
  • 25
    36120064 O-RING NBR 29,74X3,53
    O-RING NBR 29,74X3,53
  • 26
    36120522S1 ADAPTER CPL. D=36 H=20,5
    ADAPTER CPL. D=36 H=20,5
  • 27
    36120469 SHIM 28,5X14X2
    SHIM 28,5X14X2
  • 30
    36120726 SHOCK ABSORB.CASE PGB KGW H=33
    SHOCK ABSORB.CASE PGB KGW H=33
  • 31
    0770380020 O-RING 38,00X2,00 NBR 70 SH
    O-RING 38,00X2,00 NBR 70 SH
  • 32
    36120137 TUBE L=167
    TUBE L=167
  • 33
    36120019 THREADED BUSH L=70 BLACK
    THREADED BUSH L=70 BLACK
  • 34
    36120467 PROTECTION SLEEVE L=40
    PROTECTION SLEEVE L=40
  • 41
    36120015 COUNTERNUT
    COUNTERNUT
  • 42
    36120418 ADJUSTING NUT
    ADJUSTING NUT
  • 43
    40540015 CIRCLIP 38X1,5
    CIRCLIP 38X1,5
  • 45
    46810893 O-RING NBR 5,28X1,78
    O-RING NBR 5,28X1,78
  • 46
    36120151 SCREW PLUG M5X6
    SCREW PLUG M5X6
  • 47
    93010049 SPRING WP 40-220
    SPRING WP 40-220
  • 47
    93010050 SPRING WP 45-220
    SPRING WP 45-220
  • 48
    36120386 SPRING RET. H=3, D=14,5
    SPRING RET. H=3, D=14,5
  • 49
    46811208 RUBBER CAP "DO NOT OPEN"
    RUBBER CAP "DO NOT OPEN"
  • 50
    50180342S1 SHOCK ABSORBER FLUID 5 LT
    SHOCK ABSORBER FLUID 5 LT
  • 60
    36120557 REBOUND BUSH H=5,6
    REBOUND BUSH H=5,6
  • 62
    36120312 SHIM 10X16X0,30
    SHIM 10X16X0,30
  • 62
    36120325 SHIM 10X19X0,15
    SHIM 10X19X0,15
  • 62
    36120329 SHIM 10X27X0,15
    SHIM 10X27X0,15
  • 62
    36120330 SHIM 10X29X0,15
    SHIM 10X29X0,15
  • 62
    36120331 SHIM 10X31X0,15
    SHIM 10X31X0,15
  • 62
    36120332 SHIM 10X33X0,15
    SHIM 10X33X0,15
  • 62
    36120334 SHIM 10X21X0,20
    SHIM 10X21X0,20
  • 62
    36120335 SHIM 10X23X0,20
    SHIM 10X23X0,20
  • 62
    36120336 SHIM 10X25X0,20
    SHIM 10X25X0,20
  • 62
    36120337 SHIM 10X27X0,20
    SHIM 10X27X0,20
  • 62
    36120340 SHIM 10X33X0,20
    SHIM 10X33X0,20
  • 68
    36120284 SHIM 10X16X0,10
    SHIM 10X16X0,10
  • 68
    36120314 SHIM 10X18X0,30
    SHIM 10X18X0,30
  • 68
    36120328 SHIM 10X25X0,15
    SHIM 10X25X0,15
  • 68
    36120335 SHIM 10X23X0,20
    SHIM 10X23X0,20
  • 68
    36120336 SHIM 10X25X0,20
    SHIM 10X25X0,20
  • 68
    36120342 SHIM 10X21X0,25
    SHIM 10X21X0,25
  • 68
    36120343 SHIM 10X23X0,25
    SHIM 10X23X0,25
  • 75
    36120603 PISTON 6+6XD=5,5/3,5 BA
    PISTON 6+6XD=5,5/3,5 BA
  • 77
    36120040 PISTON RING 8X1X108,3
    PISTON RING 8X1X108,3
  • 78
    46811267 BUSHING 6X9X3
    BUSHING 6X9X3
  • 79
    46811251 BLEED SCREW M 4X6
    BLEED SCREW M 4X6
  • 80
    36120604 6X18X0
    6X18X0
  • 81
    40540450 SHIM 6X9,5X0,3
    SHIM 6X9,5X0,3
  • 82
    40540403 SHIM 6X18X0,1
    SHIM 6X18X0,1
  • 83
    36120605S2 PISTON ROD NUT CPL. H=15,2
    PISTON ROD NUT CPL. H=15,2
  • 85
    36120631 RESERVOIR SCREW L=98 G5X124
    RESERVOIR SCREW L=98 G5X124
  • 86
    36120024 SEPARATION PISTCOBA
    SEPARATION PISTCOBA
  • 87
    36120466 O-RING VITON 32X5
    O-RING VITON 32X5
  • 88
    46810022 PISTON RING 3,9X1,5X124
    PISTON RING 3,9X1,5X124
  • 89
    36120552 SCREW FOR RESERVOIR CAP M5
    SCREW FOR RESERVOIR CAP M5
  • 90
    46810850S7 CC-COMPRE.DAMPING CONTROL CPL.
    CC-COMPRE.DAMPING CONTROL CPL.
  • 91
    46810334 LOCK WASHER JV24
    LOCK WASHER JV24
  • 92
    46810333 STEEL-BALL D=4,75
    STEEL-BALL D=4,75
  • 93
    50180131S ADJUSTING KNOB CC-MECH. CPL.
    ADJUSTING KNOB CC-MECH. CPL.
  • 94
    50180095 BLEED PLUG R 1/8
    BLEED PLUG R 1/8
