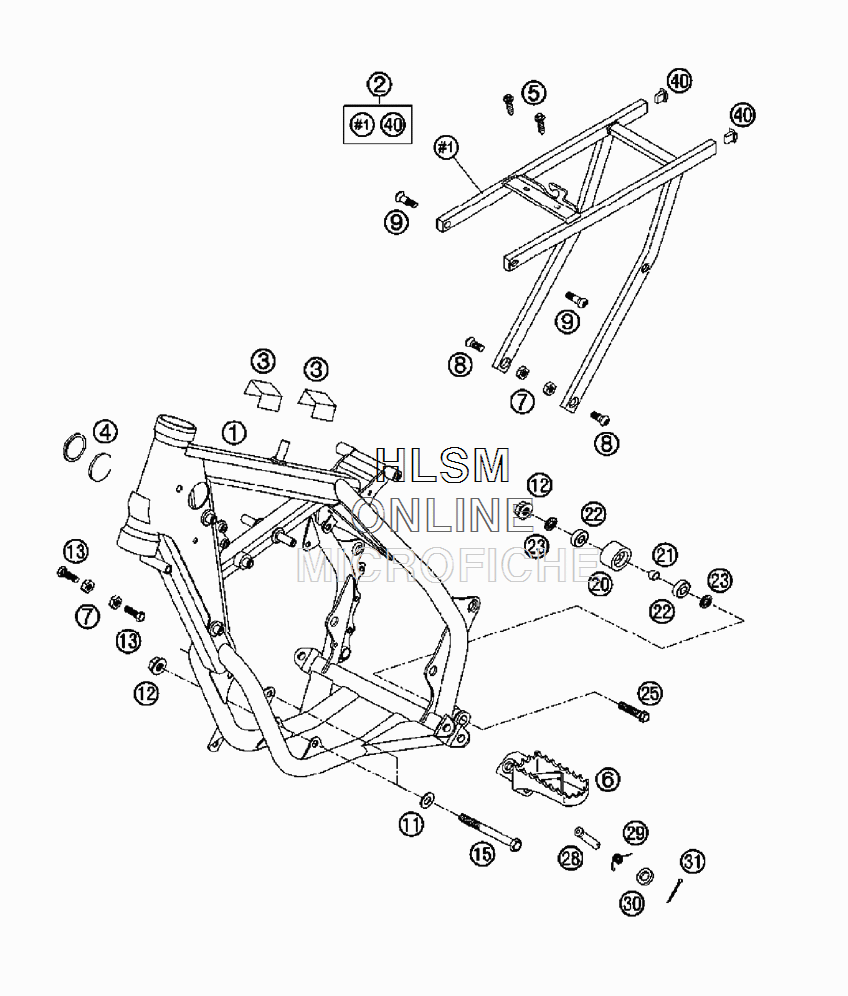

FRAME W/ SUB FRAME для Ktm 65 SX - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    4610300120090 FRAME 65 SX "MD6R"
    FRAME 65 SX "MD6R"
  • 2
    46103002044 SUB FRAME
    SUB FRAME
  • 3
    58711054050 METAMOLL FOR BATTERY BRACKET
    METAMOLL FOR BATTERY BRACKET
  • 4
    54606004000 PLUG 37MM
    PLUG 37MM
  • 5
    0017060203 EJOT PT SCREW K60X20 WS=6
    EJOT PT SCREW K60X20 WS=6
  • 6
    5460304010090 FOOT PED L/S SILVER
    FOOT PED L/S SILVER
  • 6
    5460314010090 FOOT PED R/S SILVER
    FOOT PED R/S SILVER
  • 7
    0934080003 HEXAGON NUT DIN0934-M 8
    HEXAGON NUT DIN0934-M 8
  • 8
    54610052000 SPROCKET SCREW-AH M8X20 WS=6
    SPROCKET SCREW-AH M8X20 WS=6
  • 9
    54510052100 SPROCKET SCREW-AH M8X26 WS=6
    SPROCKET SCREW-AH M8X26 WS=6
  • 11
    0125080003 WASHER DIN0125-A 8,4
    WASHER DIN0125-A 8,4
  • 12
    54310086200 SELF LOCKING NUT M8 10.9
    SELF LOCKING NUT M8 10.9
  • 13
    59001037000 SPECIAL SCREW M8X26 WS=10
    SPECIAL SCREW M8X26 WS=10
  • 15
    0931080805 HH SCREW DIN 931 M8X80 10.9
    HH SCREW DIN 931 M8X80 10.9
  • 20
    50203053000 CHAIN ROLL D=30MM
    CHAIN ROLL D=30MM
  • 21
    74003021000 BUSHING 8.2 X 12 X 6
    BUSHING 8.2 X 12 X 6
  • 22
    0625006087 GROOVED BALL BEAR. 608 2RS C3
    GROOVED BALL BEAR. 608 2RS C3
  • 23
    36003014000 LOCK WASHER 8MM
    LOCK WASHER 8MM
  • 25
    0015080353 HH COLLAR SCREW M 8X35 WS=10
    HH COLLAR SCREW M 8X35 WS=10
  • 28
    54803044000 BOLT FOR FOOT PED
    BOLT FOR FOOT PED
  • 29
    54603041000 FOOTREST SPRING L/S & R/S
    FOOTREST SPRING L/S & R/S
  • 30
    0125100003 WASHER DIN0125-A10,5
    WASHER DIN0125-A10,5
  • 31
    0094032253 PIN DIN0094-3,2X25 STEEL
    PIN DIN0094-3,2X25 STEEL
  • 40
    50303002182 PLUG-IN CAP SW14
    PLUG-IN CAP SW14
