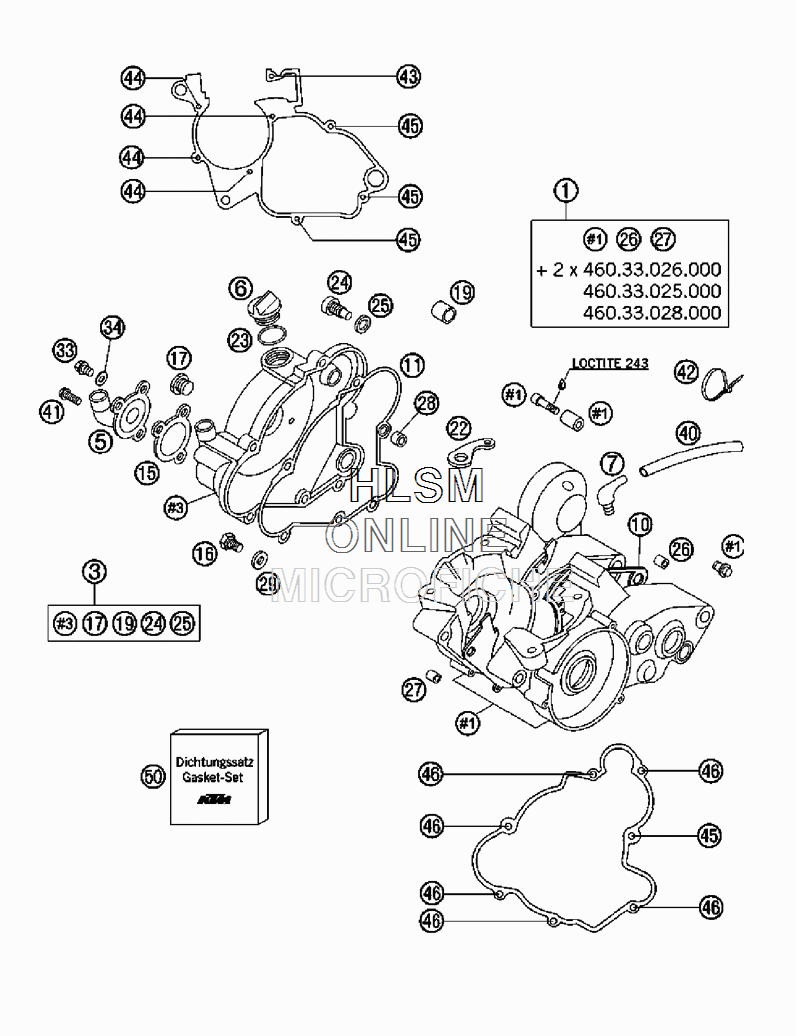

ENGINE CASE для Ktm 65 SX - 2006 года выпуска`

№

Артикул

Название
1

46030000244 ENGINE CASE CPL.

ENGINE CASE CPL.

114 630 ₽
3

46030001200 CLUTCH COVER CPL.

CLUTCH COVER CPL.

33 850 ₽
5

45135052000 WATER PUMP COVER

WATER PUMP COVER

15 300 ₽
6

58030020000 PLUG M 24X3

PLUG M 24X3

1 080 ₽
7

51030022000 ANGLE PIECE 90 DEGREE M10X1

ANGLE PIECE 90 DEGREE M10X1

1 110 ₽
10

46030039000 ENGINE CASE GASKET

ENGINE CASE GASKET

1 670 ₽
11

46030025000 CLUTCH COVER GASKET INSIDE

CLUTCH COVER GASKET INSIDE

3 390 ₽
15

45135053000 GASKET WATER PUMP COVER02

GASKET WATER PUMP COVER02

4 260 ₽
16

46030021100 OIL DRAIN PLUG M10 WS=13

OIL DRAIN PLUG M10 WS=13

3 620 ₽
17

49030095000 LENS TYPE GN 540

LENS TYPE GN 540

3 210 ₽
19

46033068000 PRESS IN BUSH KICKSTARTER

PRESS IN BUSH KICKSTARTER

350 ₽
22

46032059100 RELEASE LEVER

RELEASE LEVER

1 100 ₽
23

0770160030 O-RING 16,00X3,00 NBR 70

O-RING 16,00X3,00 NBR 70

470 ₽
24

46033067000 SPECIAL SCREW

SPECIAL SCREW

1 730 ₽
25

46033067100 WASHER F. SPECIAL SCREW

WASHER F. SPECIAL SCREW

460 ₽
26

46030023100 DOWEL 17X15

DOWEL 17X15

2 660 ₽
27

46030023000 DOWEL 12X14,5

DOWEL 12X14,5

2 330 ₽
28

46030024000 DOWEL 9X15

DOWEL 9X15

4 790 ₽
29

0603101420 COPPER GASKET 10,2X14X2 MM

COPPER GASKET 10,2X14X2 MM

560 ₽
33

0015060103 HH COLLAR SCREW M 6X10WS=8

HH COLLAR SCREW M 6X10WS=8

500 ₽
34

0603061001 CU-SEAL RING DIN7603-6X10X1

CU-SEAL RING DIN7603-6X10X1

320 ₽
40

31007007001 PVC-HOSE 5 X 8 MM

PVC-HOSE 5 X 8 MM

1 340 ₽
41

0015060163 HH COLLAR SCREW M 6X16WS=8

HH COLLAR SCREW M 6X16WS=8

290 ₽
42

44011076100 CABLE TIE 100/2,5MM BLACK

CABLE TIE 100/2,5MM BLACK

100 ₽
43

0912060404 AH SCREW DIN0912-M 6X40 A2

AH SCREW DIN0912-M 6X40 A2

380 ₽
44

0912060453 AH SCREW DIN0912-M 6X45

AH SCREW DIN0912-M 6X45

440 ₽
45

0912060303 AH SCREW DIN0912-M 6X30

AH SCREW DIN0912-M 6X30

410 ₽
46

0912060253 AH SCREW DIN0912-M 6X25

AH SCREW DIN0912-M 6X25

440 ₽
50

46030099100 GASKET SET CPL.

GASKET SET CPL.

40 680 ₽
