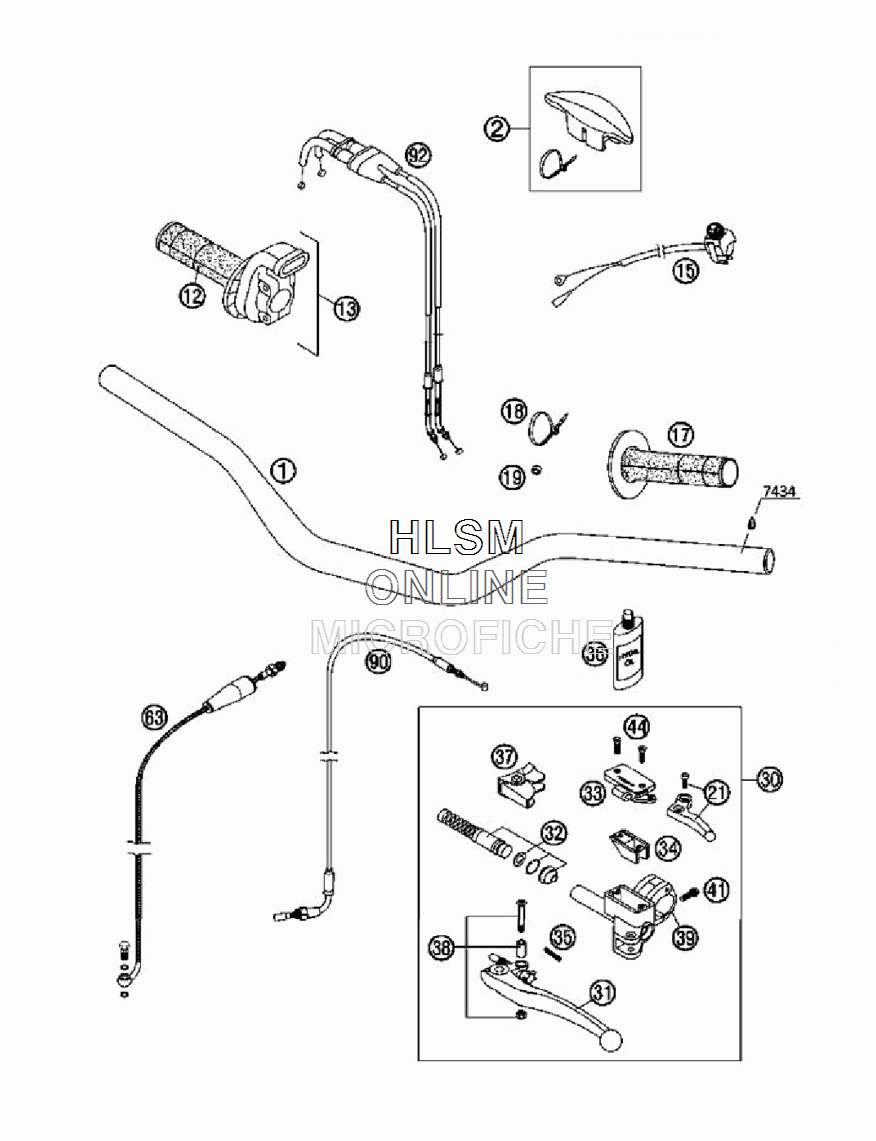

HANDLEBAR W/ CONTROLS для Ktm 250 SX-F - 2006 года выпуска
-
№АртикулНазвание
-
15480200110017 HANDLEBAR D=28MM HIGHHANDLEBAR D=28MM HIGH
-
259002002000 FATBAR PADFATBAR PAD
-
1254802013000 TWIST GRIP COVER RENTHALTWIST GRIP COVER RENTHAL
-
1359402010000 THROTTLE GRIP CPL.THROTTLE GRIP CPL.
-
1550311089200 SHORT CIRCUIT BUTTONSHORT CIRCUIT BUTTON
-
1754802039000 FIXED GRIP RENTHALFIXED GRIP RENTHAL
-
1844011076100 CABLE TIE 100/2,5MM BLACKCABLE TIE 100/2,5MM BLACK
-
1844011076200 CABLE TIE 200/3,6MM BLACKCABLE TIE 200/3,6MM BLACK
-
1950301089000 SPACER BUSHING 6X10X5SPACER BUSHING 6X10X5
-
2159002047100 HOT START LEVER CPL.HOT START LEVER CPL.
-
3077002030000 MASTER CYLINDER CPL.MASTER CYLINDER CPL.
-
3154602031000 CLUTCH LEVER SHORT CPL.CLUTCH LEVER SHORT CPL.
-
3159002031000 CLUTCH LEVER LONG CPL.CLUTCH LEVER LONG CPL.
-
3259002032100 REP.KIT PISTON 9,0MMREP.KIT PISTON 9,0MM
-
3359002033000 COVER HYD.CLUTCHCOVER HYD.CLUTCH
-
3450302034000 RUBBER FOR RESERVOIRRUBBER FOR RESERVOIR
-
3559002035000 SPRING FOR CLUTCH LEVERSPRING FOR CLUTCH LEVER
-
3650302036200 OIL FOR HYD. CLUTCH 75MLOIL FOR HYD. CLUTCH 75ML
-
3750302037000 PROTECT.CAP FOR LEVER PERCHPROTECT.CAP FOR LEVER PERCH
-
3850302038000 LEVER SCREW CPL.LEVER SCREW CPL.
-
3950302030150 CLAMP WITH PINCLAMP WITH PIN
-
410015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
440965040123 FLAT HEAD SCREW DIN0965-M 4X12FLAT HEAD SCREW DIN0965-M 4X12
-
6359032063100 CLUTCH PIPECLUTCH PIPE
-
9077002096000 HOT START CABLEHOT START CABLE
-
9277002091000 THROTTLE CABLETHROTTLE CABLE
