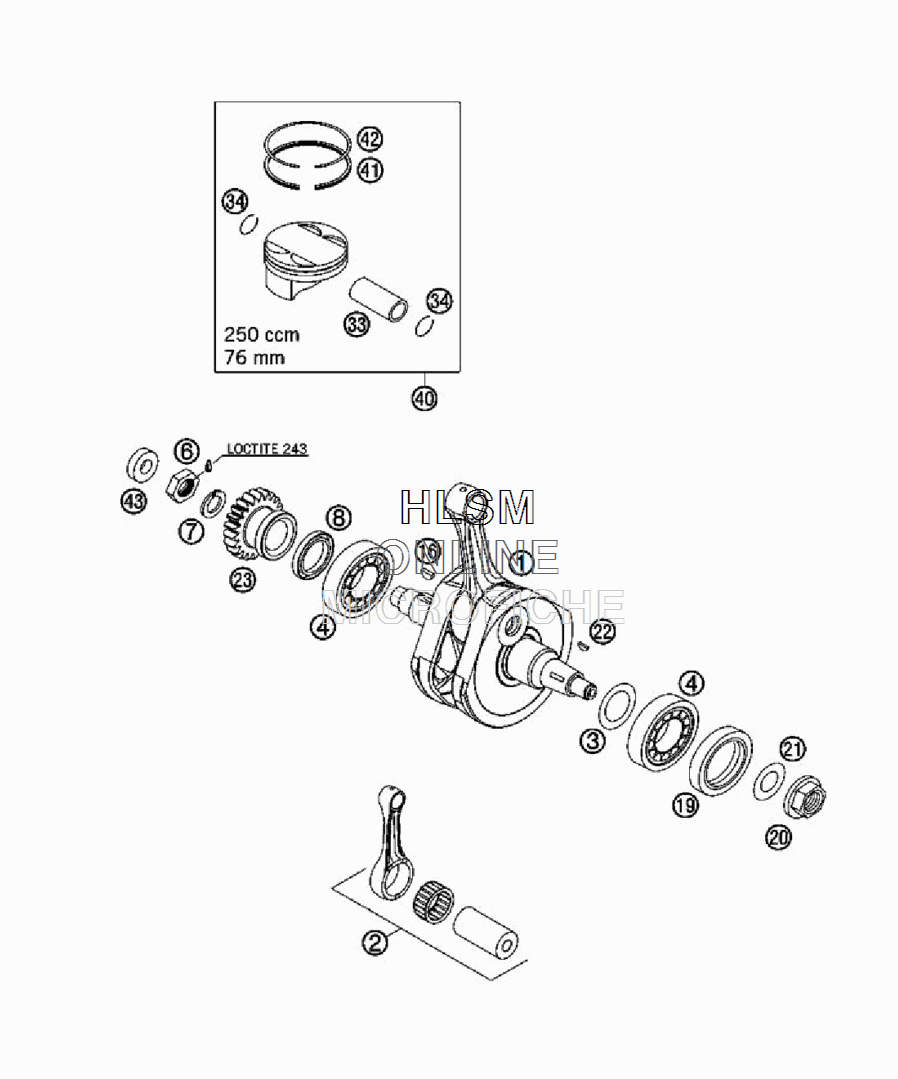

CRANKSHAFT W/ PISTON для Ktm 250 SX-F - 2006 года выпуска
-
№АртикулНазвание
-
177030018100 CRANKSHAFTCRANKSHAFT
-
277030015144 CON. ROD REP. SETCON. ROD REP. SET
-
356030081000 THRUST WASHER 30,5X45X0,10THRUST WASHER 30,5X45X0,10
-
356030081100 THRUST WASHER 30,7X47X0,15THRUST WASHER 30,7X47X0,15
-
356030081200 THRUST WASHER 30,5X45X0,30THRUST WASHER 30,5X45X0,30
-
450330082000 CYL.ROLLER BEAR.NJ206 ET2XCS46CYL.ROLLER BEAR.NJ206 ET2XCS46
-
654630029000 HEX.NUT L/SH M18X1,5HEX.NUT L/SH M18X1,5
-
758132072000 LOCK WASHER VSK 18LOCK WASHER VSK 18
-
80760354240 SH.SEAL RING 35X42X4 B10FNIBSH.SEAL RING 35X42X4 B10FNIB
-
166946005 WOODRUFF KEY 5X6,5 HARDEDWOODRUFF KEY 5X6,5 HARDED
-
190760304772 SH.SEAL RING 30X47X7 BSL VITONSH.SEAL RING 30X47X7 BSL VITON
-
2049030021000 COLLAR NUT M12X1 R/SCOLLAR NUT M12X1 R/S
-
210137120000 SPRING WASHER DIN0137-B12SPRING WASHER DIN0137-B12
-
220888030050 WOODRUFF KEY DIN6888-3X5X13WOODRUFF KEY DIN6888-3X5X13
-
2377032000122 PRIMARY GEAR 22T.PRIMARY GEAR 22T.
-
3377030033000 PISTON PIN BOLT D=16MMPISTON PIN BOLT D=16MM
-
3477030074000 CIRCLIPCIRCLIP
-
4077030007000I PISTON I CPL.PISTON I CPL.
-
4077030007000II PISTON II CPL.PISTON II CPL.
-
4177030032000 OIL SCRAPER RING D=76OIL SCRAPER RING D=76
-
4277030030000 COMPRESSIONRING D=76COMPRESSIONRING D=76
-
430760142460 SHAFT SEAL RING 14X24X6 BSHAFT SEAL RING 14X24X6 B
