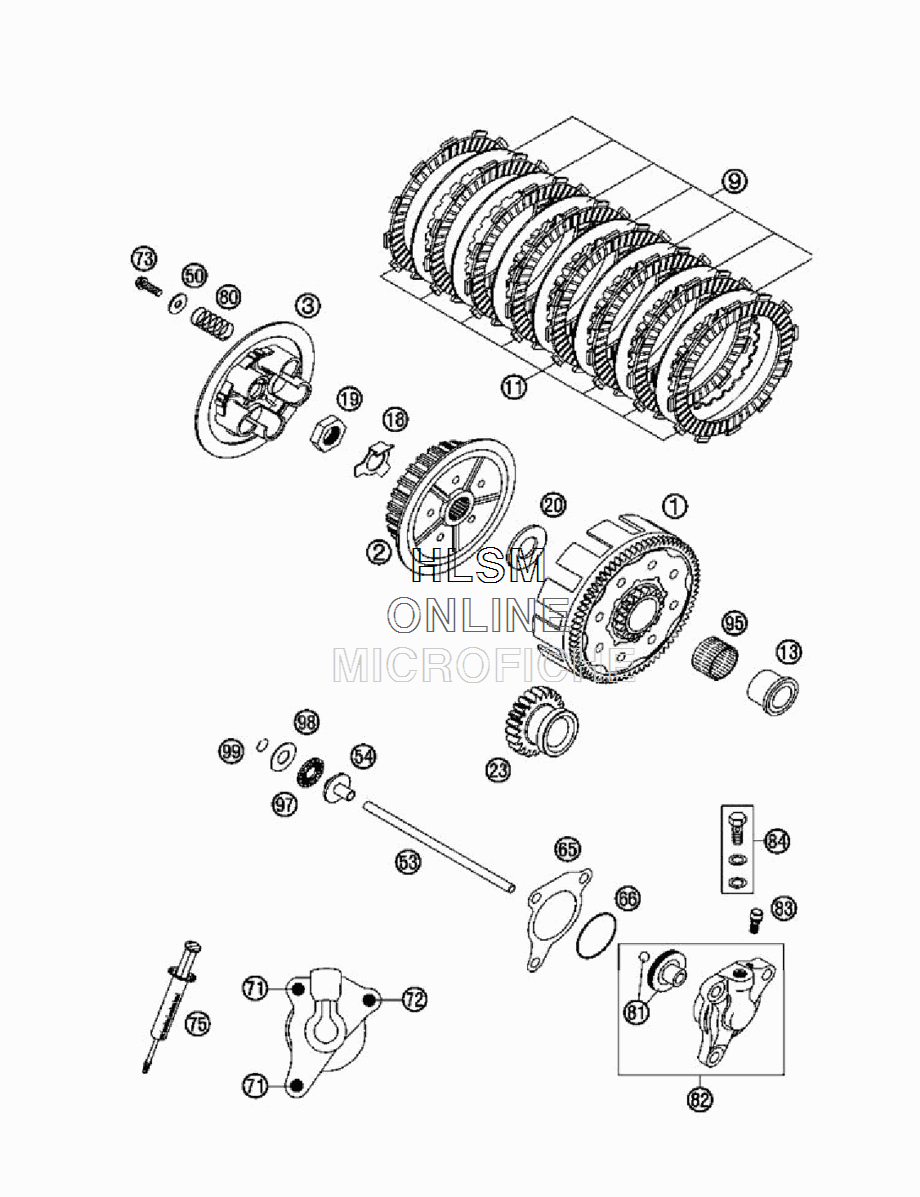

CLUTCH для Ktm 250 SX-F - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    77032001000 OUTER CLUTCH CPL.
    OUTER CLUTCH CPL.
  • 2
    77032002000 INNER CLUTCH HUB
    INNER CLUTCH HUB
  • 3
    77032003000 PRESSURE PLATE
    PRESSURE PLATE
  • 9
    77032010000 INTERMEDI. DISC STEEL
    INTERMEDI. DISC STEEL
  • 11
    77032011000 LINING DISC 3,0MM
    LINING DISC 3,0MM
  • 13
    50332013000 INNER RING 20X26X25,9
    INNER RING 20X26X25,9
  • 18
    50332018000 SHEET METAL LOCK 1,5MM
    SHEET METAL LOCK 1,5MM
  • 19
    0936181505 HEXAGON NUT DIN0936-M18X1,5 R.
    HEXAGON NUT DIN0936-M18X1,5 R.
  • 20
    50332020000 STOP DISK 20X39,6X3
    STOP DISK 20X39,6X3
  • 23
    77032000122 PRIMARY GEAR 22T.
    PRIMARY GEAR 22T.
  • 50
    50232050000 WASHER 6,2X18X2
    WASHER 6,2X18X2
  • 53
    77032054000 PUSH ROD
    PUSH ROD
  • 54
    50332054051 PRESSURE PIECE
    PRESSURE PIECE
  • 65
    59032065000 GASKET FOR SLAVE CYLINDER
    GASKET FOR SLAVE CYLINDER
  • 66
    0770300015 O-RING 30,00X1,50 NBR 70
    O-RING 30,00X1,50 NBR 70
  • 71
    0015060203 HH COLLAR SCREW M 6X20 WS=8
    HH COLLAR SCREW M 6X20 WS=8
  • 72
    0015060253 HH COLLAR SCREW M 6X25 WS=8
    HH COLLAR SCREW M 6X25 WS=8
  • 73
    0015060253 HH COLLAR SCREW M 6X25 WS=8
    HH COLLAR SCREW M 6X25 WS=8
  • 75
    50329050000 VENT INJEKTION HYDR. CLUTCH
    VENT INJEKTION HYDR. CLUTCH
  • 80
    77032005000 CLUTCH SPRING
    CLUTCH SPRING
  • 81
    59032066000 PISTON WITH O-RING AND BALL
    PISTON WITH O-RING AND BALL
  • 82
    59032061044 OUTPUT CYLINDER CPL.
    OUTPUT CYLINDER CPL.
  • 83
    54732064000 BLEEDER SCREW WITH CAP
    BLEEDER SCREW WITH CAP
  • 84
    59032062000 HOLLOW SCREW HYDR. CLUTCH CPL.
    HOLLOW SCREW HYDR. CLUTCH CPL.
  • 95
    56532095000 NEEDLE BEARING K26X30X22ZW.KSE
    NEEDLE BEARING K26X30X22ZW.KSE
  • 97
    54637097200 AXIAL NEEDLE BEARING AXK 1226
    AXIAL NEEDLE BEARING AXK 1226
  • 98
    54637098200 AXIAL WASHER AS1226 12X26X1
    AXIAL WASHER AS1226 12X26X1
  • 99
    0993012000 CIRCLIP DIN7993-RW12
    CIRCLIP DIN7993-RW12
