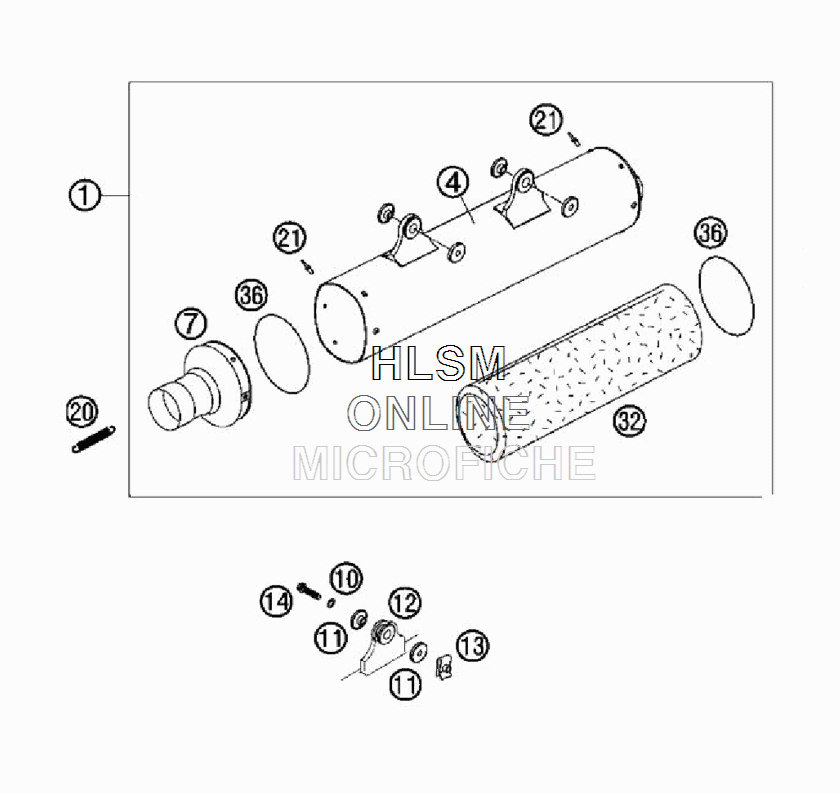

EXHAUST SILENCER для Ktm 250 SX-F - 2006 года выпуска`
-
№АртикулНазвание
-
177005079000 SILENCER CPL.SILENCER CPL.
-
459405079050 SILENCER HOUSING CPL.SILENCER HOUSING CPL.
-
777005079009 SILENCER CONNECT CPL.SILENCER CONNECT CPL.
-
100137060003 SPRING WASHER DIN0137-B 6SPRING WASHER DIN0137-B 6
-
1154605069000 BUSHING 7,5X12X28X7,8BUSHING 7,5X12X28X7,8
-
1254605068000 EXHAUST BRACKET RUBBER BLACKEXHAUST BRACKET RUBBER BLACK
-
1354603048100 RANGE CHANGE METAL NUT M6RANGE CHANGE METAL NUT M6
-
140015060303 HH COLLAR SCREW M 6X30 WS=8HH COLLAR SCREW M 6X30 WS=8
-
2050305016000 TEN.SPRING L=62MM EY.MOVEABLETEN.SPRING L=62MM EY.MOVEABLE
-
210011480802 DUMMY RIVET 4,8X 8,0 NIRODUMMY RIVET 4,8X 8,0 NIRO
-
3259005078550 STUFF.YARN 550GRAMM L=550MMSTUFF.YARN 550GRAMM L=550MM
-
360770740015 O-RING 74,00X1,50 FKM 75SHO-RING 74,00X1,50 FKM 75SH
