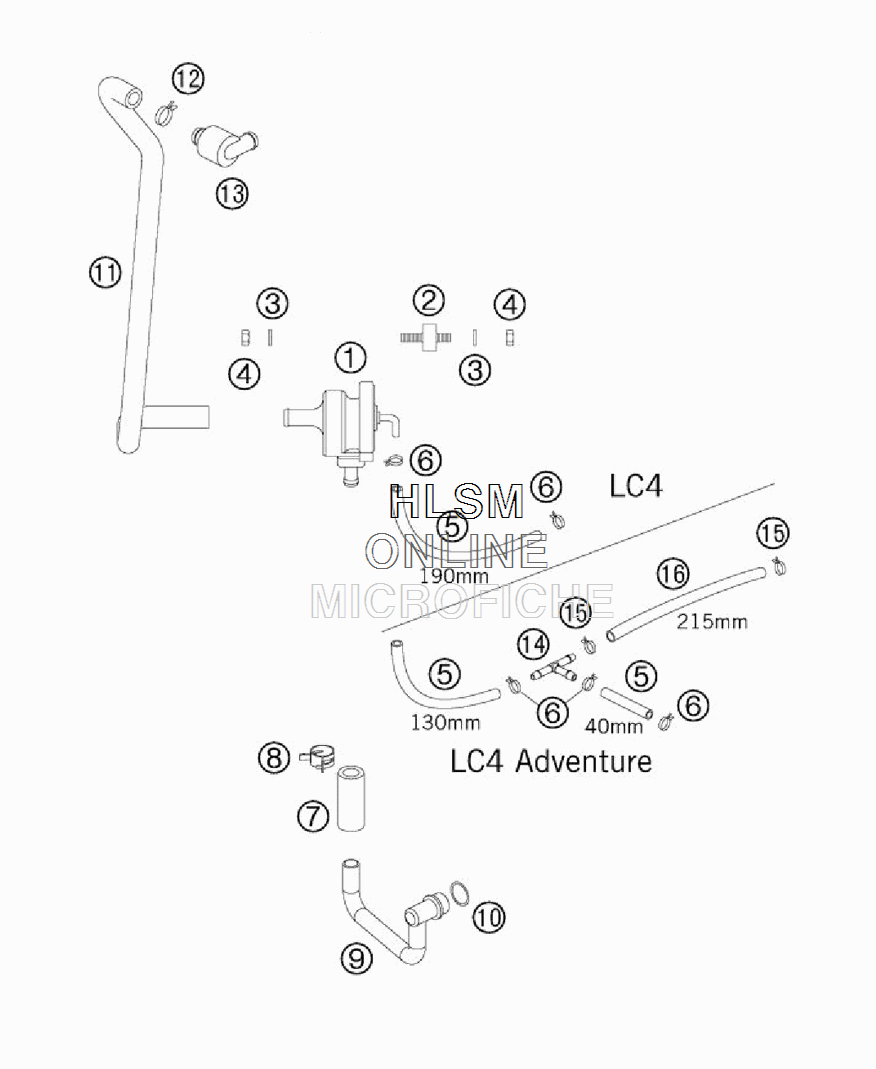

SECONDARY AIR SYSTEM для Ktm 625 SXC - 2005 года выпуска`
-
№АртикулНазвание
-
158405026000 SAS-VALVESAS-VALVE
-
258405021000 SILENTBLOCK 20X10 M6X10/M6X16SILENTBLOCK 20X10 M6X10/M6X16
-
30797060003 TOOTH LOCK WASH. DIN6797-A 6,4TOOTH LOCK WASH. DIN6797-A 6,4
-
40934060003 HEXAGON NUT DIN0934-M 6HEXAGON NUT DIN0934-M 6
-
558405029001 ND-HOSE 4X9 PER METERND-HOSE 4X9 PER METER
-
645031005000 YDNAC-CLAMP FUEL HOSE (8MM)YDNAC-CLAMP FUEL HOSE (8MM)
-
758405019000 HOSE SAS-VALVE - CONNECT. TUBEHOSE SAS-VALVE - CONNECT. TUBE
-
800049170121 CLAMP STD DN17CLAMP STD DN17
-
958405027100 CONNECTING TUBE SASCONNECTING TUBE SAS
-
1058436054000 CU-SEAL RING 12 X 16 X 2CU-SEAL RING 12 X 16 X 2
-
1158405020000 PREFORMED HOSE SASPREFORMED HOSE SAS
-
1258431082100 YDNAC-CLAMP 10173 (16MM)YDNAC-CLAMP 10173 (16MM)
-
1358431070000 AIR FILTERAIR FILTER
-
1458405030000 T-CONNECTION 5MM TS5T-CONNECTION 5MM TS5
-
1558007117000 YDNAC-CLAMP 10107 10MMYDNAC-CLAMP 10107 10MM
-
1658205035001 HOSE 6X10 PER METERHOSE 6X10 PER METER
