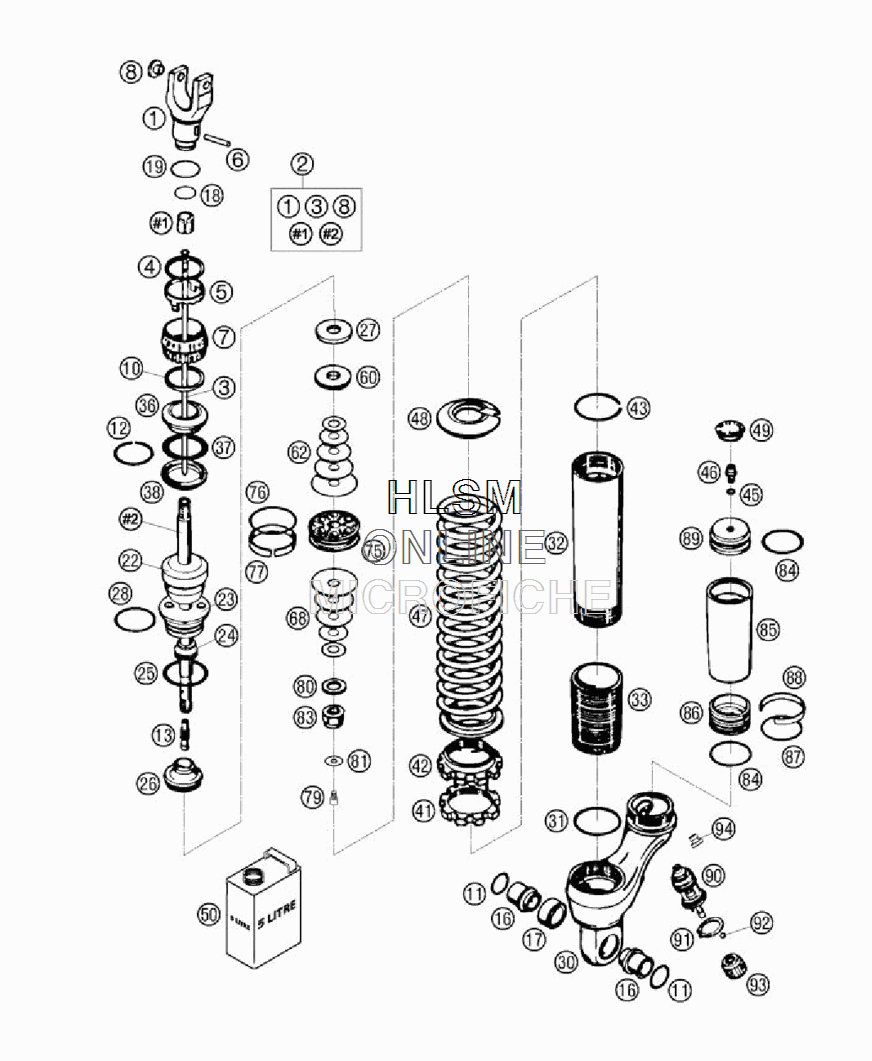

MONOSHOCK - DISASSEMBLED для Ktm 625 SXC - 2005 года выпуска`
-
№АртикулНазвание
-
146811558 SHOCK ABS. BOTTOM-FORK L75BSHOCK ABS. BOTTOM-FORK L75B
-
246811560S PISTON ROD D=14 BA M14X1PISTON ROD D=14 BA M14X1
-
346811545S NEEDLE CPL. D=4 BA; L=183NEEDLE CPL. D=4 BA; L=183
-
446811222 O-RING 36X0,5O-RING 36X0,5
-
546811263 WASHERWASHER
-
646811261 PIN 4X35PIN 4X35
-
746811262 ADJ. KNOB D=41ADJ. KNOB D=41
-
846811205 ADAPTOR-BUSH M10X1,50; D=15ADAPTOR-BUSH M10X1,50; D=15
-
1046811221 O-RING 35X3O-RING 35X3
-
1146811050 SEAL KGWSEAL KGW
-
1246811268 CIRCLIP 22X1,2CIRCLIP 22X1,2
-
1346811259 NEEDLE SEAT 5X17,25NEEDLE SEAT 5X17,25
-
1646811078 ADAPTOR KGW 10X24ADAPTOR KGW 10X24
-
1746811027 BUSHING KGW 1525BUSHING KGW 1525
-
1846811499 O-RING NBR 21X2O-RING NBR 21X2
-
1946811500 O-RING NBR 32X1,5O-RING NBR 32X1,5
-
2246810365 BUMP RUBBER WP55 WHITEBUMP RUBBER WP55 WHITE
-
2346811045 SCREW CAP M47,4; H=22,5SCREW CAP M47,4; H=22,5
-
2446811044 DUST SEAL 1424DUST SEAL 1424
-
2546810325 O-RING 35X5O-RING 35X5
-
2646811540S1 ADAPTER CPL. D=46; H=23 BAADAPTER CPL. D=46; H=23 BA
-
2746811003 SPACER 14X35X3SPACER 14X35X3
-
2846811042 O-RING 40,00X2,00 WPO-RING 40,00X2,00 WP
-
3046811481 SHOCK ABSORB. TOP H-35/79 84SHOCK ABSORB. TOP H-35/79 84
-
3146810016 O-RING NBR 48X2O-RING NBR 48X2
-
3246810093 TUBE L=180TUBE L=180
-
3346810346 THREADED BUSH L=60 BLACKTHREADED BUSH L=60 BLACK
-
3646811561 BUSHING RING D=55X19BUSHING RING D=55X19
-
3746811512 O-RING NBR 32X8O-RING NBR 32X8
-
3846811511 SUPPORT RING D=55X7,5SUPPORT RING D=55X7,5
-
4146810109 COUNTERNUTCOUNTERNUT
-
4246810108 ADJUSTING NUTADJUSTING NUT
-
4346810010 CIRCLIP 49X1,5CIRCLIP 49X1,5
-
4546810893 O-RING NBR 5,28X1,78O-RING NBR 5,28X1,78
-
4636120151 SCREW PLUG M5X6SCREW PLUG M5X6
-
4791010252 SPRING 63-260 59SPRING 63-260 59
-
4846810065 SPRING RETAINER D=58;H=23;L=15SPRING RETAINER D=58;H=23;L=15
-
4946811208 RUBBER CAP "DO NOT OPEN"RUBBER CAP "DO NOT OPEN"
-
5050180342S1 SHOCK ABSORBER FLUID 5 LT 2003 0,33 LITRESHOCK ABSORBER FLUID 5 LT 2003 0,33 LITRE
-
6046811216 REBOUND BUSH PLANE H=6,5REBOUND BUSH PLANE H=6,5
-
6246810491 SHIM 12X26X0,20SHIM 12X26X0,20
-
6246810492 SHIM 12X28X0,20SHIM 12X28X0,20
-
6246810493 SHIM 12X30X0,20SHIM 12X30X0,20
-
6246810494 SHIM 12X32X0,20SHIM 12X32X0,20
-
6246810498 SHIM 12X40X0,20SHIM 12X40X0,20
-
6246810507 SHIM 12X40X0,25SHIM 12X40X0,25
-
6246810522 SHIM 12X34X0,15SHIM 12X34X0,15
-
6246810523 SHIM 12X36X0,15SHIM 12X36X0,15
-
6246810524 SHIM 12X38X0,15SHIM 12X38X0,15
-
6246810608 SHIM 12X24X0,10SHIM 12X24X0,10
-
6246810611 SHIM 12X18X0,15SHIM 12X18X0,15
-
6846810491 SHIM 12X26X0,20SHIM 12X26X0,20
-
6846810492 SHIM 12X28X0,20SHIM 12X28X0,20
-
6846810493 SHIM 12X30X0,20SHIM 12X30X0,20
-
6846810494 SHIM 12X32X0,20SHIM 12X32X0,20
-
6846810520 SHIM 12X30X0,15SHIM 12X30X0,15
-
6846810521 SHIM 12X32X0,15SHIM 12X32X0,15
-
6846810608 SHIM 12X24X0,10SHIM 12X24X0,10
-
6846810641 BACKPLATE 12X21X0,30BACKPLATE 12X21X0,30
-
7546811218 PISTON 6+6XD=7 BAPISTON 6+6XD=7 BA
-
7646810035 O-RING VITON 37,82X1,78O-RING VITON 37,82X1,78
-
7746811206 PISTON RING 8X46PISTON RING 8X46
-
7946180056 BLEED SCREW M6BLEED SCREW M6
-
8046811258 RING 12X24X2,5RING 12X24X2,5
-
8140540403 SHIM 6X18X0,1SHIM 6X18X0,1
-
8346180060 PISTON ROD NUT CPL. M12X1PISTON ROD NUT CPL. M12X1
-
8446810340 O-RING NBR 45X2O-RING NBR 45X2
-
8546811453 RESERVOIR SCREW L=123 GREYRESERVOIR SCREW L=123 GREY
-
8646810322 SEPARATION PISTON D=46SEPARATION PISTON D=46
-
8746811043 O-RING VITON 35X5O-RING VITON 35X5
-
8846810324 PISTON RING 3,9X1,5X138PISTON RING 3,9X1,5X138
-
8946811209 RESERVOIR CAP D=46RESERVOIR CAP D=46
-
9046810850S6 CC-COMPRE.DAMPING CONTROL CPL.CC-COMPRE.DAMPING CONTROL CPL.
-
9146810334 LOCK WASHER JV24LOCK WASHER JV24
-
9246810333 STEEL-BALL D=4,75STEEL-BALL D=4,75
-
9346811272S ADJUSTING KNOB CC-MECH. CPL.ADJUSTING KNOB CC-MECH. CPL.
-
9450180095 BLEED PLUG R 1/8BLEED PLUG R 1/8
