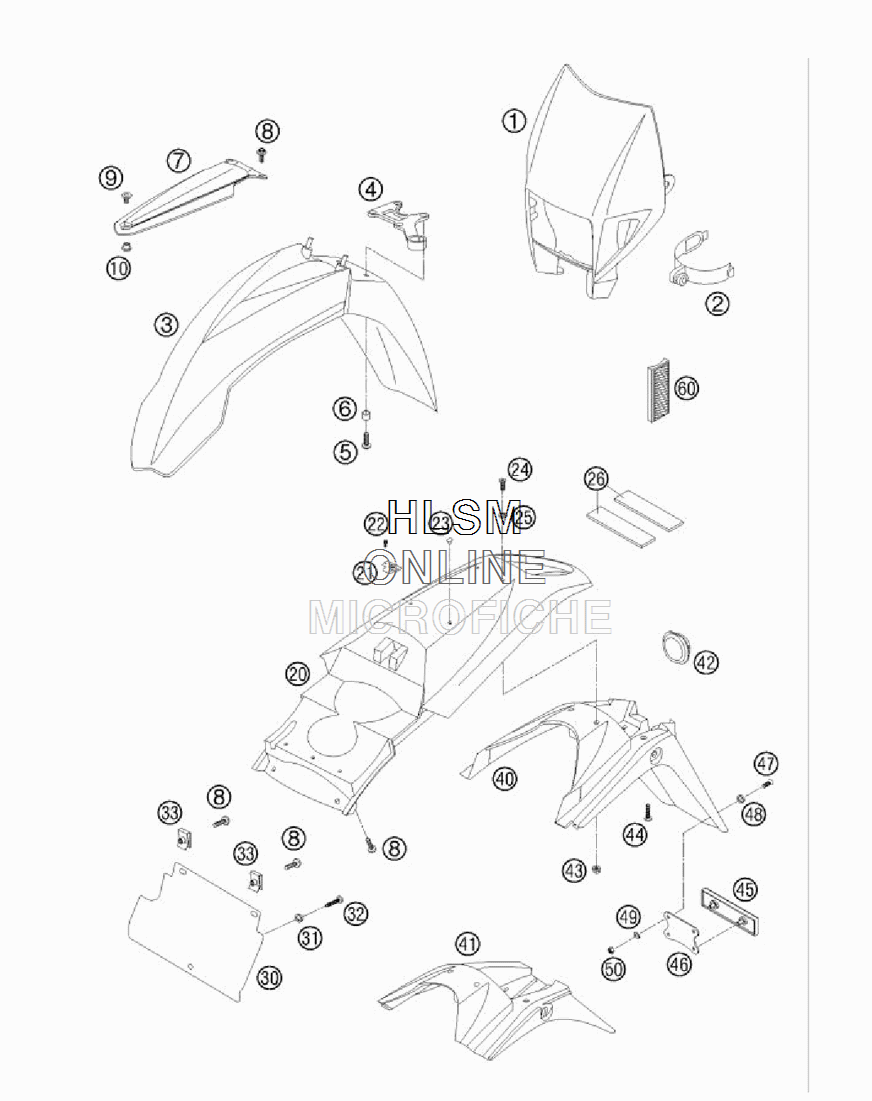

MASK W/ FENDERS для Ktm 625 SXC - 2005 года выпуска
-
№АртикулНазвание
-
15030800100004 H.LIGHT MASK ORANGEH.LIGHT MASK ORANGE
-
250211086000 MASK RUBBER UFO WPMASK RUBBER UFO WP
-
35030801030004 FENDER FRONT WIDE ORANGEFENDER FRONT WIDE ORANGE
-
459008019000 BRAKE HOSE GUIDEBRAKE HOSE GUIDE
-
50014060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
650208020000 SPACER BUSHING 7X10X7,5SPACER BUSHING 7X10X7,5
-
750308009100 FENDER BRACE BLACKFENDER BRACE BLACK
-
80014060153 HH COLLAR SCREW M 6X15 WS=8HH COLLAR SCREW M 6X15 WS=8
-
950308009050 SCREW FEND.BRACE M8X9 WS=17SCREW FEND.BRACE M8X9 WS=17
-
1050308009051 NUT FENDER BRACE M8 WS=17NUT FENDER BRACE M8 WS=17
-
205840801410004 FENDER REAR ORANGEFENDER REAR ORANGE
-
2158307042151 THRUST BEARING QUICK RELEASETHRUST BEARING QUICK RELEASE
-
220016040183 SCREW FOR PLASTIC D=4X18SCREW FOR PLASTIC D=4X18
-
235840801200004 PLUG REAR FENDER ORANGEPLUG REAR FENDER ORANGE
-
240991060203 FLAT H.SCREW DIN7991-M6X20 8.8FLAT H.SCREW DIN7991-M6X20 8.8
-
2558308045000 SPECIAL WASHER 7X12,5X20 BLACKSPECIAL WASHER 7X12,5X20 BLACK
-
2654601097000 RUBBER STRIP 85X25X3 MMRUBBER STRIP 85X25X3 MM
-
3058308013250 FENDER EXTENSIONFENDER EXTENSION
-
3140006006000 WASHER 6MMWASHER 6MM
-
320017050181 SCREW FOR PLASTIC D=5X18SCREW FOR PLASTIC D=5X18
-
3354603048100 RANGE CHANGE METAL NUT M6RANGE CHANGE METAL NUT M6
-
4058408015000 NUMB.PLATE CARRIER BLACKNUMB.PLATE CARRIER BLACK
-
4158308015100 NUMB.PLATE CARRIER BLACKNUMB.PLATE CARRIER BLACK
-
4258414040050 RUBBER FOR FENDER REARRUBBER FOR FENDER REAR
-
4356509064100 SELF LOCKING NUT M6 10.9SELF LOCKING NUT M6 10.9
-
440017060203 EJOT PT SCREW K60X20 WS=6EJOT PT SCREW K60X20 WS=6
-
4558412080000 REFLECTOR REDREFLECTOR RED
-
4658412080050 BRACKET FOR REFLECTORBRACKET FOR REFLECTOR
-
470966050163 OVAL HEAD SCREW DIN0966-M 5X16OVAL HEAD SCREW DIN0966-M 5X16
-
4840006006000 WASHER 6MMWASHER 6MM
-
490125050003 WASHER DIN0125-A 5,3WASHER DIN0125-A 5,3
-
500985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
-
6058412080100 REFLECTOR YELLOWREFLECTOR YELLOW
