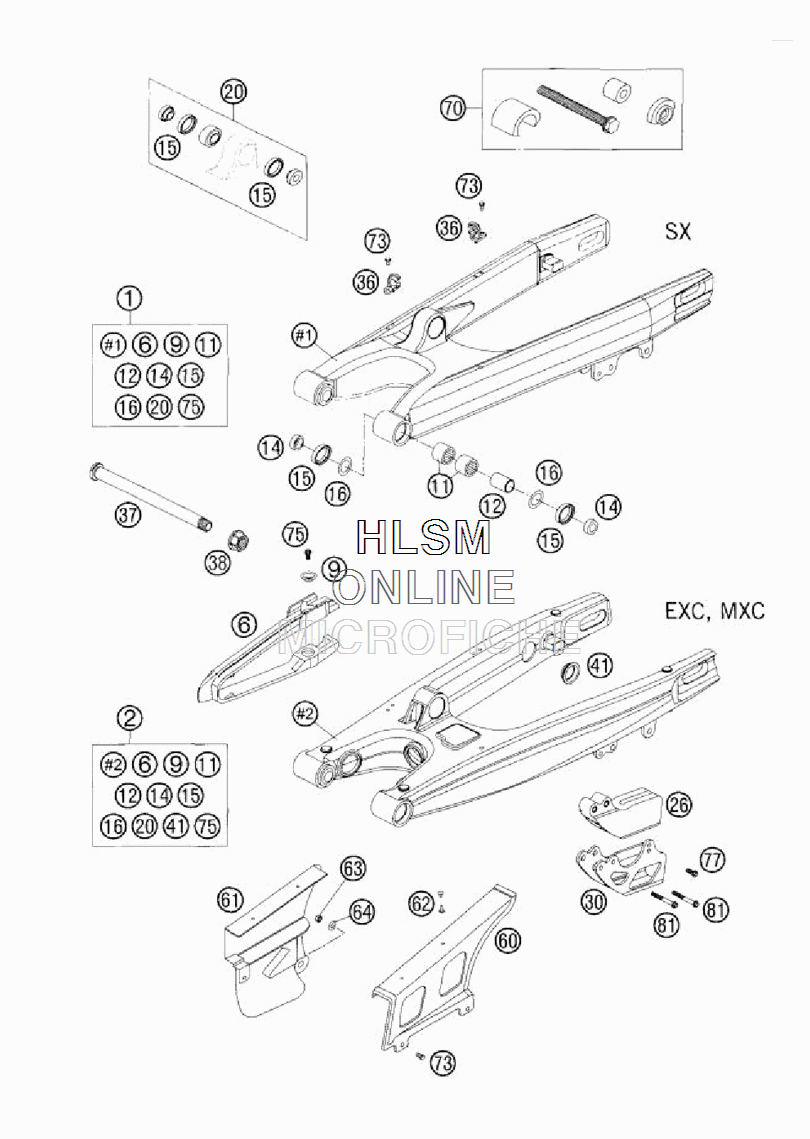

SWINGARM W/ CHAIN GUARD для Ktm 450 STEVE RAMON - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    59404030044 SWINGARM CPL. SX RACING
    SWINGARM CPL. SX RACING
  • 6
    50304066100 CHAIN GUARD
    CHAIN GUARD
  • 9
    72210079000 BUCKET
    BUCKET
  • 11
    59004031100 NEEDLE BEARING HK2212V
    NEEDLE BEARING HK2212V
  • 12
    59404032000 BEARING SLEEVE 17X22X38,7
    BEARING SLEEVE 17X22X38,7
  • 14
    54804034000 BUCKET F. SHAFT SEAL RING
    BUCKET F. SHAFT SEAL RING
  • 15
    0760253270 SHAFT SEAL RING 25X32X7
    SHAFT SEAL RING 25X32X7
  • 16
    54603036000 STOP DISK 22,2X31, 7X1
    STOP DISK 22,2X31, 7X1
  • 20
    50304090044 PIVOT BEARING+BUSHES PDS
    PIVOT BEARING+BUSHES PDS
  • 26
    54607066100 CHAIN GUIDE REAR
    CHAIN GUIDE REAR
  • 30
    54607070144 RETAINING PLATE CPL.
    RETAINING PLATE CPL.
  • 36
    54611076100 RETAIN.CLAMP FOR BRAKE HOSE
    RETAIN.CLAMP FOR BRAKE HOSE
  • 37
    54804037000 SWINGARM BOLT M16X1,5
    SWINGARM BOLT M16X1,5
  • 38
    54804038000 SELF LOCKNUT M16X1,5 WS=19
    SELF LOCKNUT M16X1,5 WS=19
  • 41
    58404041100 CLOSING COVER ROUND
    CLOSING COVER ROUND
  • 60
    54607460000 CHAIN GUARD LARGE
    CHAIN GUARD LARGE
  • 61
    50304060100 CHAIN GUARD SMALL
    CHAIN GUARD SMALL
  • 62
    20012062055 HOLLOW RIVET TWO PARTS
    HOLLOW RIVET TWO PARTS
  • 63
    0985060003 SELF LOCK. NUT DIN0985-M 6
    SELF LOCK. NUT DIN0985-M 6
  • 64
    0021060003 WASHER DIN9021-A 6,4
    WASHER DIN9021-A 6,4
  • 70
    50329000044 TOOL BEARING MOUNTING PDS
    TOOL BEARING MOUNTING PDS
  • 73
    0009050103 SPECIAL SCREW M50X10
    SPECIAL SCREW M50X10
  • 75
    0015060103 HH COLLAR SCREW M6X10 WS=8
    HH COLLAR SCREW M6X10 WS=8
  • 77
    0015060163 HH COLLAR SCREW M6X16 WS=8
    HH COLLAR SCREW M6X16 WS=8
  • 81
    0015060503 HH COLLAR SCREW M6X50 WS=8
    HH COLLAR SCREW M6X50 WS=8
