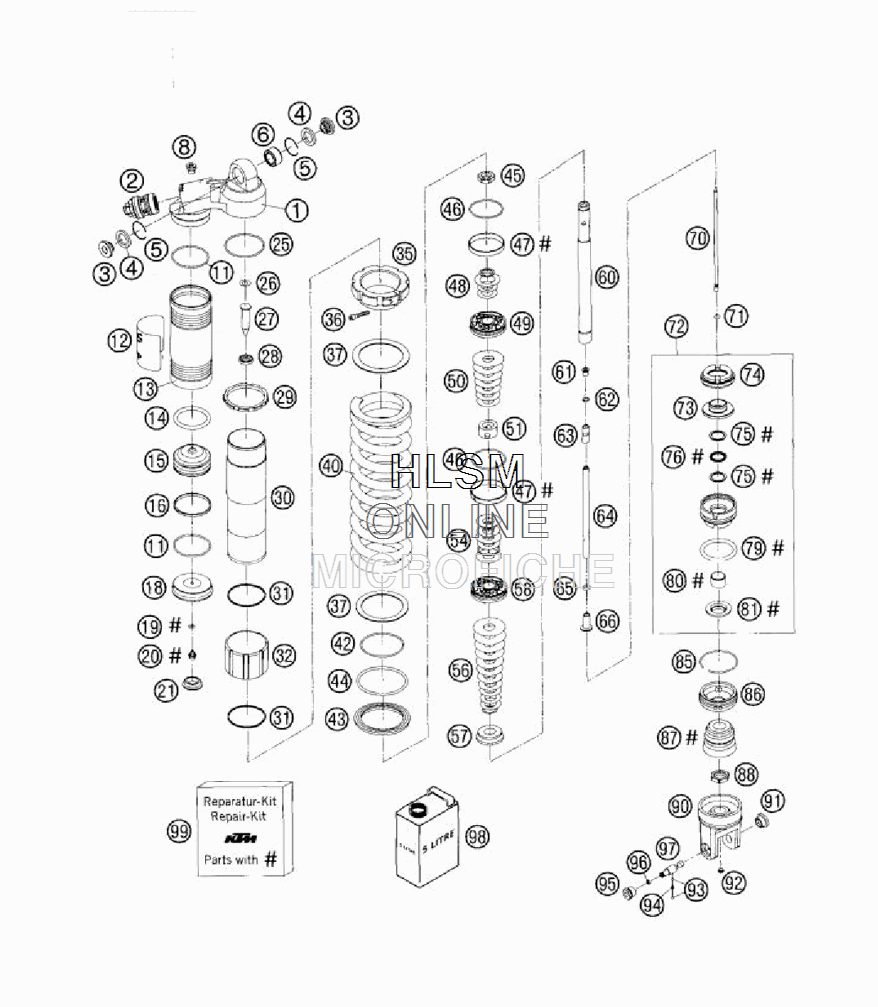

MONOSHOCK - DISASSEMBLED для Ktm 450 STEVE RAMON - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    50180429 MONOSHOCK TOP H=30,5 M54X1
    MONOSHOCK TOP H=30,5 M54X1
  • 2
    50180301S3 MCC-COMPR.DAMPCONTROL CPL.
    MCC-COMPR.DAMPCONTROL CPL.
  • 3
    46180007 ADAPTOR BUSH KGW 12X24
    ADAPTOR BUSH KGW 12X24
  • 4
    46180003 OIL SEAL KGW D=25
    OIL SEAL KGW D=25
  • 5
    50180168 WASHER KGW 0=25
    WASHER KGW 0=25
  • 6
    50180005 BUSHING KGW 1525 HD
    BUSHING KGW 1525 HD
  • 8
    50180095 BLEED PLUG R 1/8
    BLEED PLUG R 1/8
  • 11
    46810016 O-RING NBR 48X2
    O-RING NBR 48X2
  • 12
    52000041 WP CAUTION (PDS KIM) 58X33
    WP CAUTION (PDS KIM) 58X33
  • 13
    50180438 RESERV. SCREW L=120 D=52 GOLD
    RESERV. SCREW L=120 D=52 GOLD
  • 14
    46180014 O-RING VITON 41X5
    O-RING VITON 41X5
  • 15
    46180002 SEPARATION PISTON D=52; H=32
    SEPARATION PISTON D=52; H=32
  • 16
    46180015 PISTON RING 3,9X1,5X156
    PISTON RING 3,9X1,5X156
  • 18
    50180344 RESERVOIR CAP D=58
    RESERVOIR CAP D=58
  • 19
    46810893 O-RING NBR 5,28X1,78
    O-RING NBR 5,28X1,78
  • 20
    36120151 SCREW PLUG M5X6
    SCREW PLUG M5X6
  • 21
    46811208 RUBBER CAP DO NOT OPEN
    RUBBER CAP DO NOT OPEN
  • 25
    50180097 O-RING 52X2
    O-RING 52X2
  • 26
    50180177 WASHER 16X8,2X0,6
    WASHER 16X8,2X0,6
  • 27
    50180448 NEEDLE D=11,4 D=7,8 L=57
    NEEDLE D=11,4 D=7,8 L=57
  • 28
    50180437 SCREW CAP M20X1 D=11,5 H=5
    SCREW CAP M20X1 D=11,5 H=5
  • 29
    50180270 LOCK WASHER
    LOCK WASHER
  • 30
    50180430 TUBE PDS L=198
    TUBE PDS L=198
  • 31
    50180133 CIRCLIP 50X1,5
    CIRCLIP 50X1,5
  • 32
    50180081 SPRING GUIDANCEL=40
    SPRING GUIDANCEL=40
  • 35
    50180433 SPRING RETAINER M56X1
    SPRING RETAINER M56X1
  • 36
    0912050303 AH SCREW DIN0912-M 5X30
    AH SCREW DIN0912-M 5X30
  • 37
    50180114 INTERM.RING SCREW SPRING RET
    INTERM.RING SCREW SPRING RET
  • 40
    91210001 SPRING 250 69N/MM D=12,0 (62)
    SPRING 250 69N/MM D=12,0 (62)
  • 40
    91210002 SPRING 250 72N/MM D=12,5 (59)
    SPRING 250 72N/MM D=12,5 (59)
  • 40
    91210003 SPRING 250 76N/MM D=12,5 (59)
    SPRING 250 76N/MM D=12,5 (59)
  • 40
    91210004 SPRING 250 80N/MM D=12,5 (62)
    SPRING 250 80N/MM D=12,5 (62)
  • 40
    91210005 SPRING 250 84N/MM D=13,0 (62)
    SPRING 250 84N/MM D=13,0 (62)
  • 40
    91210014 SPRING PDS5-260 66-86N/MM
    SPRING PDS5-260 66-86N/MM
  • 40
    91210015 SPRING PDS6-260 71,5-90,5N/MM
    SPRING PDS6-260 71,5-90,5N/MM
  • 40
    91210016 SPRING PDS7-260 76-95N/MM
    SPRING PDS7-260 76-95N/MM
  • 42
    50180273 CIRCLIP 58,2X2
    CIRCLIP 58,2X2
  • 43
    50180355 SPRING RETAINER D=80
    SPRING RETAINER D=80
  • 44
    50180352 O-RING VITON 66,27X3,53
    O-RING VITON 66,27X3,53
  • 45
    50180141 PISTON ROD NUT M16X1
    PISTON ROD NUT M16X1
  • 46
    50180099 O-RING VITON 44,17X1,78
    O-RING VITON 44,17X1,78
  • 47
    50180135 PISTON RING 50-8
    PISTON RING 50-8
  • 48
    50180034 BACKPLATE 16X20X0,30
    BACKPLATE 16X20X0,30
  • 48
    50180055 SHIM 16X30X0,20'
    SHIM 16X30X0,20'
  • 48
    50180056 SHIM 16X32X0,20
    SHIM 16X32X0,20
  • 48
    50180057 SHIM 16X34X0,20
    SHIM 16X34X0,20
  • 48
    50180058 SHIM 16X36X0,20
    SHIM 16X36X0,20
  • 48
    50180210 WASHER 16X21X1
    WASHER 16X21X1
  • 49
    50180197 PISTON 6+6X7/4,5
    PISTON 6+6X7/4,5
  • 50
    50180036 BACKPLATE 16X22X0,30
    BACKPLATE 16X22X0,30
  • 50
    50180037 SHIM 16X23X0,30
    SHIM 16X23X0,30
  • 50
    50180069 SHIM 16X40X0,25
    SHIM 16X40X0,25
  • 50
    50180073 SHIM 16X30X0,30
    SHIM 16X30X0,30
  • 50
    50180074 SHIM 16X32X0,30
    SHIM 16X32X0,30
  • 50
    50180075 SHIM 16X34X0,30
    SHIM 16X34X0,30
  • 50
    50180076 SHIM 16X36X0,30
    SHIM 16X36X0,30
  • 50
    50180077 SHIM 16X38X0,30
    SHIM 16X38X0,30
  • 50
    50180078 SHIM 16X40X0,30
    SHIM 16X40X0,30
  • 51
    50180436 SANDWICH BUSH D26XD16X14.5/11
    SANDWICH BUSH D26XD16X14.5/11
  • 54
    50180034 BACKPLATE 16X20X0.30
    BACKPLATE 16X20X0.30
  • 54
    50180045 SHIM 16X28X0,15
    SHIM 16X28X0,15
  • 54
    50180054 SHIM 16X28X0.20
    SHIM 16X28X0.20
  • 54
    50180055 SHIM 16X30X0.20
    SHIM 16X30X0.20
  • 54
    50180056 SHIM 16X32X0,20
    SHIM 16X32X0,20
  • 54
    50180057 SHIM 16X34X0,20
    SHIM 16X34X0,20
  • 54
    50180067 SHIM 16X36X0,25
    SHIM 16X36X0,25
  • 56
    50180035 BACKPLATE16X21X0,30
    BACKPLATE16X21X0,30
  • 56
    50180057 SHIM 16X34X0,20
    SHIM 16X34X0,20
  • 56
    50180058 SHIM 16X36X0,20
    SHIM 16X36X0,20
  • 56
    50180059 SHIM 16X38X0,20
    SHIM 16X38X0,20
  • 56
    50180060 SHIM 16X40X0,20
    SHIM 16X40X0,20
  • 56
    50180061 SHIM 16X42X0,20
    SHIM 16X42X0,20
  • 56
    50180062 SHIM 16X44X0,20
    SHIM 16X44X0,20
  • 56
    50180063 SHIM 16X28X0,25
    SHIM 16X28X0,25
  • 56
    50180064 SHIM 16X30X0,25
    SHIM 16X30X0,25
  • 56
    50180065 SHIM 16X32X0,25
    SHIM 16X32X0,25
  • 56
    50180066 SHIM 16X34X0,25
    SHIM 16X34X0,25
  • 56
    50180071 SHIM 16X44X0,25
    SHIM 16X44X0,25
  • 57
    50180196 REBOUND DISC D=34; H-8
    REBOUND DISC D=34; H-8
  • 58
    50180446 PISTON 6+6X3,5/4,5
    PISTON 6+6X3,5/4,5
  • 60
    50180431 PISTON ROD D=18 L=151 M16X1
    PISTON ROD D=18 L=151 M16X1
  • 61
    50180200 BUSH M8X1
    BUSH M8X1
  • 62
    50180157 O-RING VITON 7X1,5
    O-RING VITON 7X1,5
  • 63
    50180439 NEEDLESEATM8X1 D=5,5
    NEEDLESEATM8X1 D=5,5
  • 64
    50180264 TUBEM18X1 L=151,5
    TUBEM18X1 L=151,5
  • 65
    48600049 O-RING NBR 8X2
    O-RING NBR 8X2
  • 66
    50180279 TUBE ADAPTOR M8X1 L=23
    TUBE ADAPTOR M8X1 L=23
  • 70
    50180261 NEEDLEL=175
    NEEDLEL=175
  • 71
    46811265 O-RING VITON 221(1,6)
    O-RING VITON 221(1,6)
  • 72
    50180435S ADAPTOR CPL. D=50 H=29
    ADAPTOR CPL. D=50 H=29
  • 73
    50180113 STEEL DISC 18X 5X43 7X6
    STEEL DISC 18X 5X43 7X6
  • 74
    50180107 REBOUND RUBBER
    REBOUND RUBBER
  • 75
    50180102 BACKUPRING 22,55X1,5
    BACKUPRING 22,55X1,5
  • 76
    50180101 QUAD RING 18X2,62
    QUAD RING 18X2,62
  • 79
    50180103 O-RING 41X5
    O-RING 41X5
  • 80
    46180119 DU-BUSH 18X2OX12
    DU-BUSH 18X2OX12
  • 81
    50180082 DUST SEAL 1835
    DUST SEAL 1835
  • 85
    50180126 CIRCLIP 53X1,75
    CIRCLIP 53X1,75
  • 86
    50180165 COVER D=50
    COVER D=50
  • 87
    50180276 BUMP RUBBER WP60 D=18-26
    BUMP RUBBER WP60 D=18-26
  • 88
    50180283 CONTRA NUT M18X1 H=5
    CONTRA NUT M18X1 H=5
  • 90
    50180356 FORK PART L=55,5 B=32,5 D=12
    FORK PART L=55,5 B=32,5 D=12
  • 91
    50180105 THREADED BUSH M12 PDS
    THREADED BUSH M12 PDS
  • 92
    50180297 RUBBER PLUG 0=8
    RUBBER PLUG 0=8
  • 93
    40540603 STEEL BALL D=3MM
    STEEL BALL D=3MM
  • 94
    48600028 SPRING D=2,9 L=7,9
    SPRING D=2,9 L=7,9
  • 95
    50180281 RESERVOIR CAPM14X1
    RESERVOIR CAPM14X1
  • 96
    50180222 O-RING NBR 4X1,5
    O-RING NBR 4X1,5
  • 97
    50180434 ADJUSTING SCREW 80 DEG. L=39
    ADJUSTING SCREW 80 DEG. L=39
  • 98
    50180342S1 SHOCK ABSORBER FLUID 5 LT (0,33 LITRE)
    SHOCK ABSORBER FLUID 5 LT (0,33 LITRE)
  • 99
    R12008 REPAIR-KIT GASKET 5018 PDS
    REPAIR-KIT GASKET 5018 PDS
