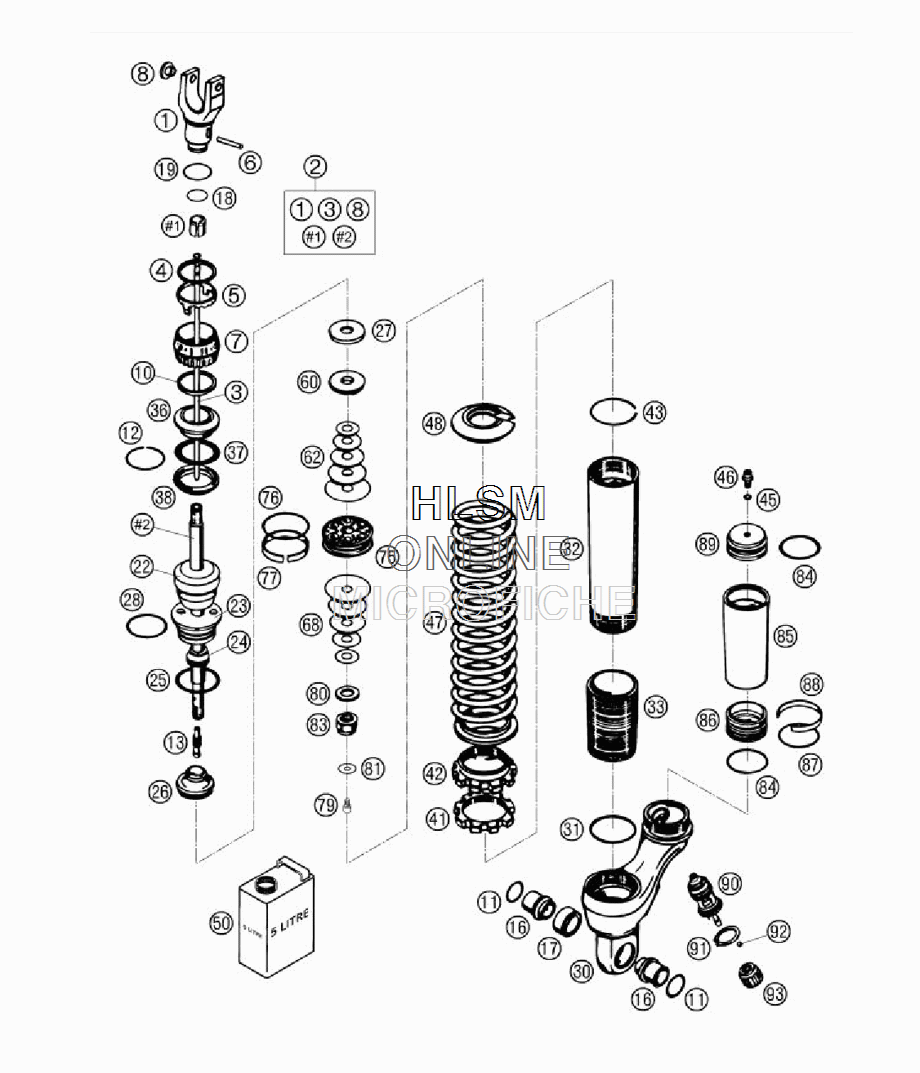

MONOSHOCK - DISASSEMBLED для Ktm 450 RALLYE - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    46811558 SHOCK ABS. BOTTOM-FORK L75B
    SHOCK ABS. BOTTOM-FORK L75B
  • 2
    46811560S PISTON ROD D=14 BA M14X1
    PISTON ROD D=14 BA M14X1
  • 3
    46811545S NEEDLE CPL. D=4 BA; L=183
    NEEDLE CPL. D=4 BA; L=183
  • 4
    46811222 O-RING 36X0,5
    O-RING 36X0,5
  • 5
    46811263 WASHER
    WASHER
  • 6
    46811261 PIN 4X35
    PIN 4X35
  • 7
    46811262 ADJ. KNOB D=41
    ADJ. KNOB D=41
  • 8
    46811205 ADAPTOR-BUSH M10X1,50; D=15
    ADAPTOR-BUSH M10X1,50; D=15
  • 10
    46811221 O-RING 35X3
    O-RING 35X3
  • 11
    46811050 SEAL KGW
    SEAL KGW
  • 12
    46811268 CIRCLIP 22X1,2
    CIRCLIP 22X1,2
  • 13
    46811259 NEEDLE SEAT 5X17,25
    NEEDLE SEAT 5X17,25
  • 16
    46811099 ADAPTOR KGW 12X28
    ADAPTOR KGW 12X28
  • 17
    50180005 BUSHING KGW 1525 HD
    BUSHING KGW 1525 HD
  • 18
    46811499 O-RING NBR 21X2
    O-RING NBR 21X2
  • 19
    46811500 O-RING NBR 32X1,5
    O-RING NBR 32X1,5
  • 22
    46810366 BUMP RUBBER WP65 RED
    BUMP RUBBER WP65 RED
  • 23
    46811340 SCREW CAP M47,4 H=22,5
    SCREW CAP M47,4 H=22,5
  • 24
    46811044 DUST SEAL 1424
    DUST SEAL 1424
  • 25
    46810325 O-RING 35X5
    O-RING 35X5
  • 26
    46811540S1 ADAPTER CPL. D=46; H=23 BA
    ADAPTER CPL. D=46; H=23 BA
  • 27
    46811002 SPACER 35X14X2
    SPACER 35X14X2
  • 28
    46811042 O-RING 40,00X2,00 WP
    O-RING 40,00X2,00 WP
  • 30
    46811202 SHOCK ABSORB. TOP H-40/119
    SHOCK ABSORB. TOP H-40/119
  • 31
    46810016 O-RING NBR 48X2
    O-RING NBR 48X2
  • 32
    46810428 TUBE L=215
    TUBE L=215
  • 33
    46810391 THREADED BUSH L=90 BLACK
    THREADED BUSH L=90 BLACK
  • 36
    46811561 BUSHING RING D=55X19
    BUSHING RING D=55X19
  • 37
    46811512 O-RING NBR 32X8
    O-RING NBR 32X8
  • 38
    46811511 SUPPORT RING D=55X7,5
    SUPPORT RING D=55X7,5
  • 41
    46810109 COUNTERNUT
    COUNTERNUT
  • 42
    46811850 ADJUSTING NUT D=62
    ADJUSTING NUT D=62
  • 43
    46810010 CIRCLIP 49X1,5
    CIRCLIP 49X1,5
  • 45
    46810893 O-RING NBR 5,28X1,78
    O-RING NBR 5,28X1,78
  • 46
    36120151 SCREW PLUG M5X6
    SCREW PLUG M5X6
  • 47
    91210018 SPRING 66-86/280 (62) D=13
    SPRING 66-86/280 (62) D=13
  • 48
    46811851 SPRING RETAINER D=62 H=23
    SPRING RETAINER D=62 H=23
  • 50
    50180342S1 SHOCK ABSORBER FLUID 5 LT 0,33 L
    SHOCK ABSORBER FLUID 5 LT 0,33 L
  • 60
    46811216 REBOUND BUSH PLANE H=6,5
    REBOUND BUSH PLANE H=6,5
  • 62
    46810497 SHIM 12X38X0,20
    SHIM 12X38X0,20
  • 62
    46810498 SHIM 12X40X0,20
    SHIM 12X40X0,20
  • 62
    46810505 SHIM 12X36X0,25
    SHIM 12X36X0,25
  • 62
    46810507 SHIM 12X40X0,25
    SHIM 12X40X0,25
  • 62
    46810512 SHIM 12X32X0,30
    SHIM 12X32X0,30
  • 62
    46810513 SHIM 12X34X0,30
    SHIM 12X34X0,30
  • 62
    46810615 SHIM 12X22X0,15
    SHIM 12X22X0,15
  • 62
    46811582 BACKPLATE 12X30X0,10
    BACKPLATE 12X30X0,10
  • 68
    46810502 SHIM 12X30X0,25
    SHIM 12X30X0,25
  • 68
    46810508 SHIM 12X24X0,30
    SHIM 12X24X0,30
  • 68
    46810509 SHIM 12X26X0,30
    SHIM 12X26X0,30
  • 68
    46810510 SHIM 12X28X0,30
    SHIM 12X28X0,30
  • 68
    46810512 SHIM 12X32X0,30
    SHIM 12X32X0,30
  • 68
    46810604 SHIM 12X20X0,10
    SHIM 12X20X0,10
  • 68
    46810606 SHIM 12X22X0,10
    SHIM 12X22X0,10
  • 75
    46811857 PISTON 6+6D=7 BA 1,0
    PISTON 6+6D=7 BA 1,0
  • 76
    46810035 O-RING VITON 37,82X1,78
    O-RING VITON 37,82X1,78
  • 77
    46811206 PISTON RING 8X46
    PISTON RING 8X46
  • 79
    46180056 BLEED SCREW M6
    BLEED SCREW M6
  • 80
    46811258 RING 12X24X2,5
    RING 12X24X2,5
  • 81
    40540403 SHIM 6X18X0,1
    SHIM 6X18X0,1
  • 83
    46180060 PISTON ROD NUT CPL. M12X1
    PISTON ROD NUT CPL. M12X1
  • 84
    46810340 O-RING NBR 45X2
    O-RING NBR 45X2
  • 85
    46811453 RESERVOIR SCREW L=123 GREY
    RESERVOIR SCREW L=123 GREY
  • 86
    50180108 SEPARATION PISTON D=46; H=29
    SEPARATION PISTON D=46; H=29
  • 87
    46811043 O-RING VITON 35X5
    O-RING VITON 35X5
  • 88
    46810324 PISTON RING 3,9X1,5X138
    PISTON RING 3,9X1,5X138
  • 89
    46811920 RESERVOIR CAP D=46 M5
    RESERVOIR CAP D=46 M5
  • 90
    46810850S7 CC-COMPRE.DAMPING CONTROL CPL.
    CC-COMPRE.DAMPING CONTROL CPL.
  • 91
    46810334 LOCK WASHER JV24
    LOCK WASHER JV24
  • 92
    46810333 STEEL-BALL D=4,75
    STEEL-BALL D=4,75
  • 93
    50180131S ADJUSTING KNOB CC-MECH. CPL.
    ADJUSTING KNOB CC-MECH. CPL.
  • 96
    46811656 DISC H=2
    DISC H=2
  • 97
    50180114 INTERM.RING SCREW SPRING RET.
    INTERM.RING SCREW SPRING RET.
