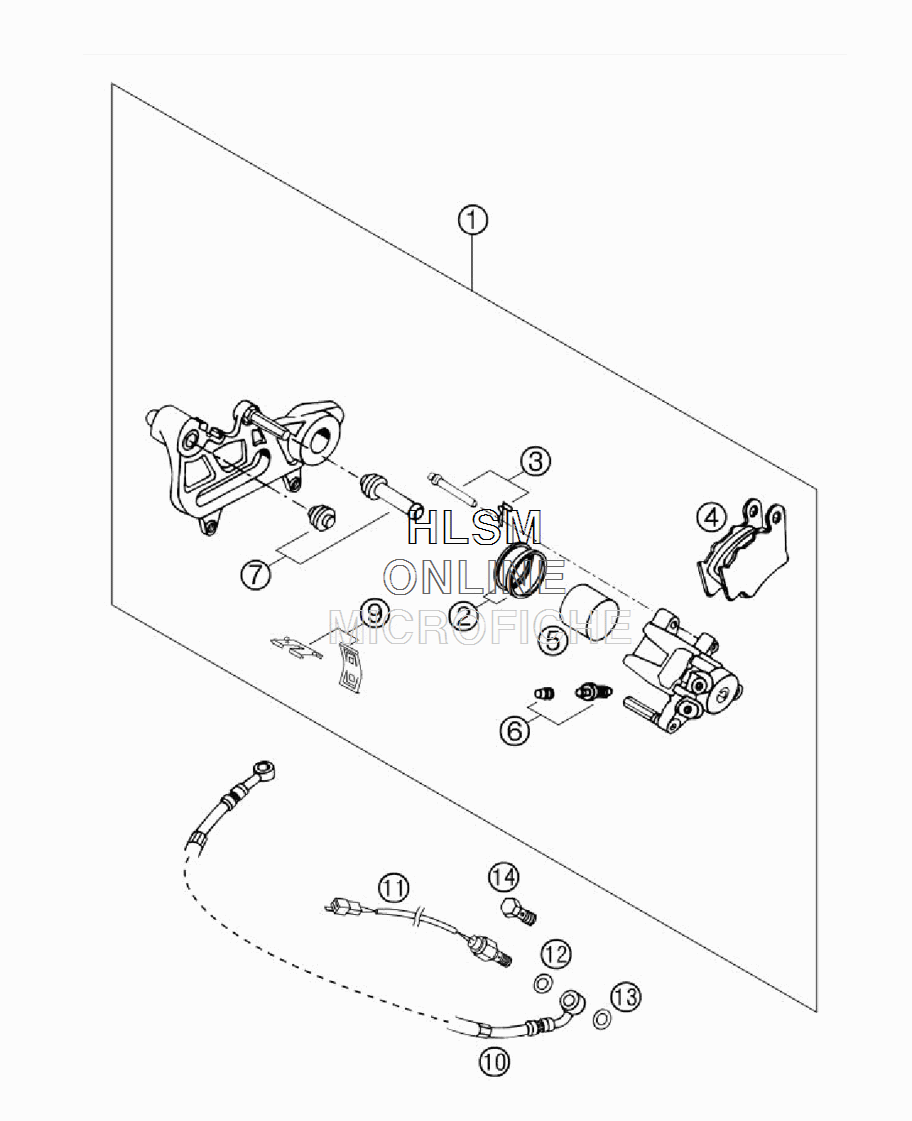

BRAKE CALIPER REAR для Ktm 450 RALLYE - 2005 года выпуска`
-
№АртикулНазвание
-
150213301644 BRAKE CALIPER CPL. REAR L/SBRAKE CALIPER CPL. REAR L/S
-
254613318200 REPAIR KIT SEALING RINGS 34MMREPAIR KIT SEALING RINGS 34MM
-
354613310200 BOLT SETBOLT SET
-
454613309200 BRAKE PAD SET REAR ID450BRAKE PAD SET REAR ID450
-
554613305200 BRAKE PISTON 34MMBRAKE PISTON 34MM
-
654513214000 BLEEDER SCREW M10X1BLEEDER SCREW M10X1
-
754613218000 CUP SET SHORTCUP SET SHORT
-
954613311200 RETAINING SPRING SETRETAINING SPRING SET
-
1058313070000 BRAKE HOSE REAR 790MMBRAKE HOSE REAR 790MM
-
1158511051100 BRAKE LIGHT SWITCH LONGBRAKE LIGHT SWITCH LONG
-
1242013226000 CU-SEAL RING DIN7603-10X16X1CU-SEAL RING DIN7603-10X16X1
-
1342013026000 CU-SEAL RING DIN7603-10X16X1,5CU-SEAL RING DIN7603-10X16X1,5
-
1450213025000 HOLLOW SCREW M10X1X19HOLLOW SCREW M10X1X19
