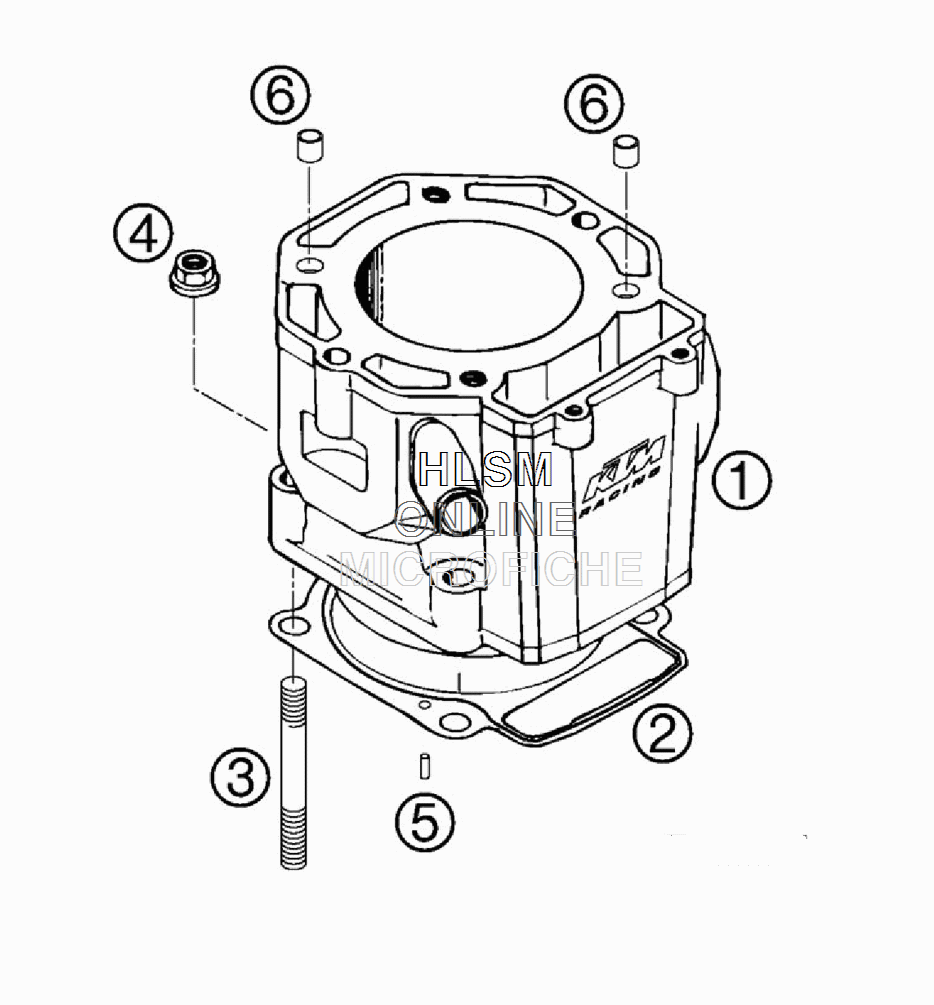

CYLINDER для Ktm 450 RALLYE - 2005 года выпуска
-
№АртикулНазвание
-
15883000500030 CYLINDER CPL.CYLINDER CPL.
-
258530035000 CYL. BASE GASKET 0,33MMCYL. BASE GASKET 0,33MM
-
30835100456 STUD DIN0835-M10X45STUD DIN0835-M10X45
-
40331100003 COLLAR NUT DIN6923-M10 WS=15COLLAR NUT DIN6923-M10 WS=15
-
50402040980 NEEDLE ROL.DIN5402 NRB 4X9,8NEEDLE ROL.DIN5402 NRB 4X9,8
-
658330023000 DOWEL 17 X 14 X 9,5DOWEL 17 X 14 X 9,5
