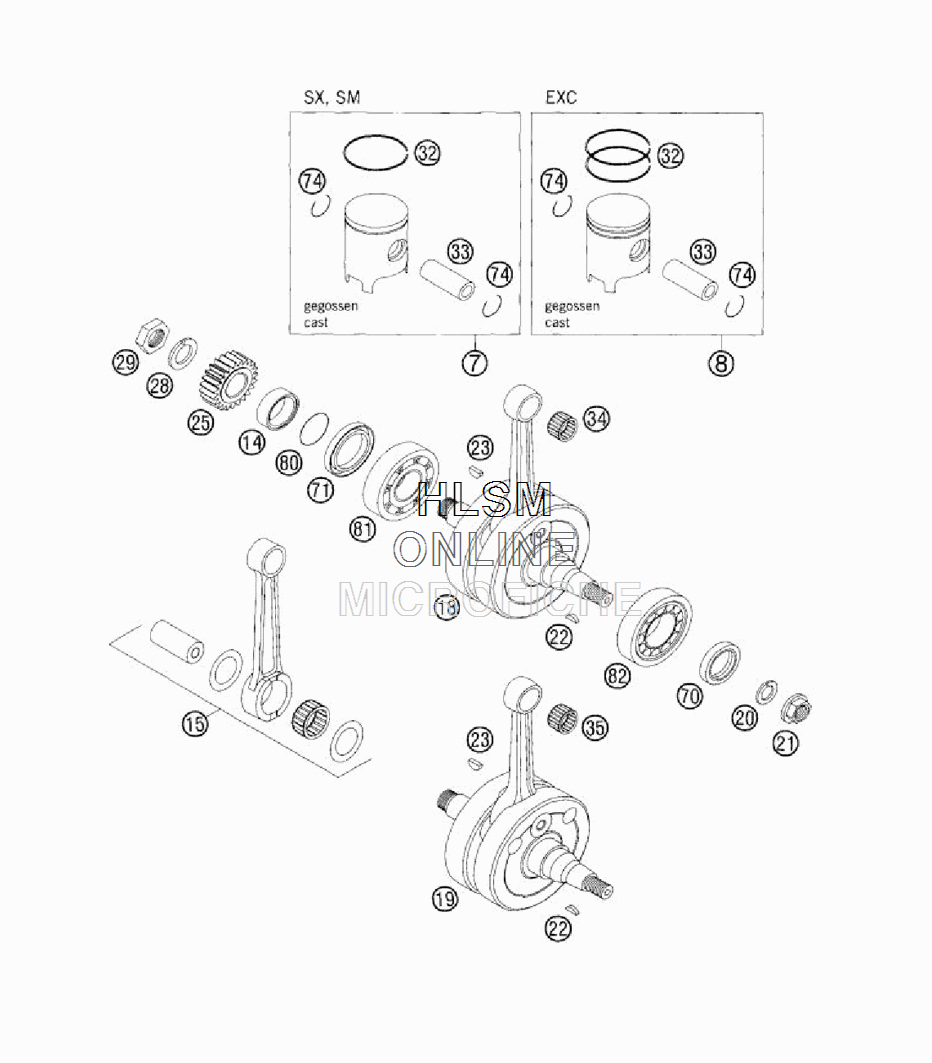

CRANKSHAFT W/ PISTON для Ktm 125 SX TYLA RATTRAY - 2005 года выпуска`

№

Артикул

Название
7

50330007500I PISTON I CPL. 54MM

PISTON I CPL. 54MM

48 830 ₽
7

50330007500II PISTON II CPL. 54MM

PISTON II CPL. 54MM

48 830 ₽
8

50330007400I PISTON I CPL. 54MM

PISTON I CPL. 54MM

48 830 ₽
8

50330007400II PISTON II CPL. 54MM

PISTON II CPL. 54MM

48 830 ₽
14

54633014100 SPACER BUSHING 12MM

SPACER BUSHING 12MM

5 140 ₽
15

50330015000 CON.ROD REPAIR KIT

CON.ROD REPAIR KIT

99 500 ₽
18

50330018200 CRANKSHAFT (STROKE 54,5)

CRANKSHAFT (STROKE 54,5)

146 170 ₽
20

50230029012 LOCKING RING VSK 12

LOCKING RING VSK 12

290 ₽
21

49030021000 COLLAR NUT M12X1 R/S

COLLAR NUT M12X1 R/S

2 660 ₽
22

0888030050 WOODRUFF KEY DIN6888-3X5X13

WOODRUFF KEY DIN6888-3X5X13

290 ₽
23

6946005 WOODRUFF KEY 5X6,5 HARDED

WOODRUFF KEY 5X6,5 HARDED

290 ₽
25

50332023023 PRIMARY PINION 23-T

PRIMARY PINION 23-T

22 170 ₽
28

50230029016 LOCKING RING VSK 16

LOCKING RING VSK 16

350 ₽
29

50330029000 HEXAGON NUT M 16 X 1,5 - US

HEXAGON NUT M 16 X 1,5 - US

1 870 ₽
32

50330032500 SQUARE RING 54X1

SQUARE RING 54X1

11 620 ₽
33

50330033500 PISTON PIN 15X45,2

PISTON PIN 15X45,2

4 760 ₽
34

51030034000 NEEDLE BEARING KBK 15X19X20

NEEDLE BEARING KBK 15X19X20

6 750 ₽
70

0760253570 SHAFT SEAL RING 25X35X7 BTSL

SHAFT SEAL RING 25X35X7 BTSL

4 650 ₽
71

0760324564 SHAFT SEAL RING 32X45X6,5 BT

SHAFT SEAL RING 32X45X6,5 BT

5 780 ₽
74

50330074500 WIRE LOCK RING 15X1

WIRE LOCK RING 15X1

270 ₽
80

0770250020 O-RING 25,00X2.00 NBR TO

O-RING 25,00X2.00 NBR TO

560 ₽
81

0625063055 BALL BEARING 6305 JR2 CS36

BALL BEARING 6305 JR2 CS36

11 660 ₽
82

50330082000 CYL.ROLLER SEAR,NJ206 ET2XCS46

CYL.ROLLER SEAR,NJ206 ET2XCS46

22 490 ₽
