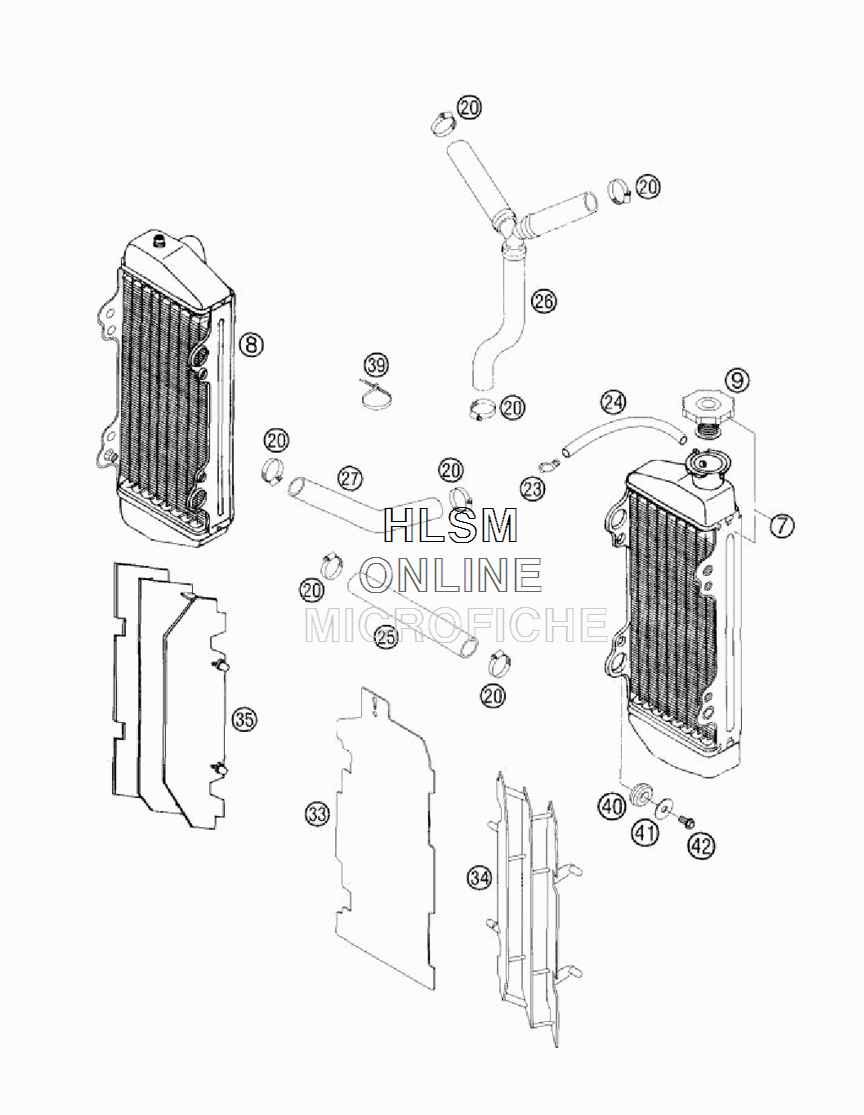

COOLING SYSTEM для Ktm 125 SX TYLA RATTRAY - 2005 года выпуска

  • №
    Артикул
    Название
  • 7
    50335007000 RADIATOR US NATURE (45286)
    RADIATOR US NATURE (45286)
  • 8
    50335008000 RADIATOR R/S NATURE (45285)
    RADIATOR R/S NATURE (45285)
  • 9
    59035009000 RADIAT.CAP 20,3 PSI (1,4BAR)
    RADIAT.CAP 20,3 PSI (1,4BAR)
  • 20
    10001020000 HOSE CLAMP GEM/ 16-27
    HOSE CLAMP GEM/ 16-27
  • 23
    50303089000 ANGEL PIECE
    ANGEL PIECE
  • 24
    31007107001 PVC-HOSE 6X9 MM PER METRE
    PVC-HOSE 6X9 MM PER METRE
  • 25
    56535025001 RADIATOR HOSE 18X25 PER METRE (RADIATOR - RADIATOR)
    RADIATOR HOSE 18X25 PER METRE (RADIATOR - RADIATOR)
  • 26
    50335026200 RADIATOR HOSE INCL. Y-PART
    RADIATOR HOSE INCL. Y-PART
  • 27
    50335027000 RADIATOR HOSE 18X25 (WATER PUMP - RADIATOR)
    RADIATOR HOSE 18X25 (WATER PUMP - RADIATOR)
  • 33
    50335033000 COVER FOR RADIATOR US BLACK (FOR WINTER OPERATION)
    COVER FOR RADIATOR US BLACK (FOR WINTER OPERATION)
  • 34
    54635034200 RAD. PROTECTUS COLORLESS
    RAD. PROTECTUS COLORLESS
  • 34
    5463503420004 RADIATOR PROTECTOR US ORANGE
    RADIATOR PROTECTOR US ORANGE
  • 35
    54635134200 RAD. PROTECOR/S COLORLESS
    RAD. PROTECOR/S COLORLESS
  • 35
    5463513420004 RADIATOR PROTECTOR R/S ORANGE
    RADIATOR PROTECTOR R/S ORANGE
  • 39
    44011076200 CABLE TIE 200/3,6MM BLACK
    CABLE TIE 200/3,6MM BLACK
  • 40
    41001052000 RUBBER SLEEVED=12MM
    RUBBER SLEEVED=12MM
  • 41
    0021060003 WASHER DIN9021-A 6,4
    WASHER DIN9021-A 6,4
  • 42
    0015060123 HH COLLAR SCREW M 6X12 WS=8
    HH COLLAR SCREW M 6X12 WS=8
