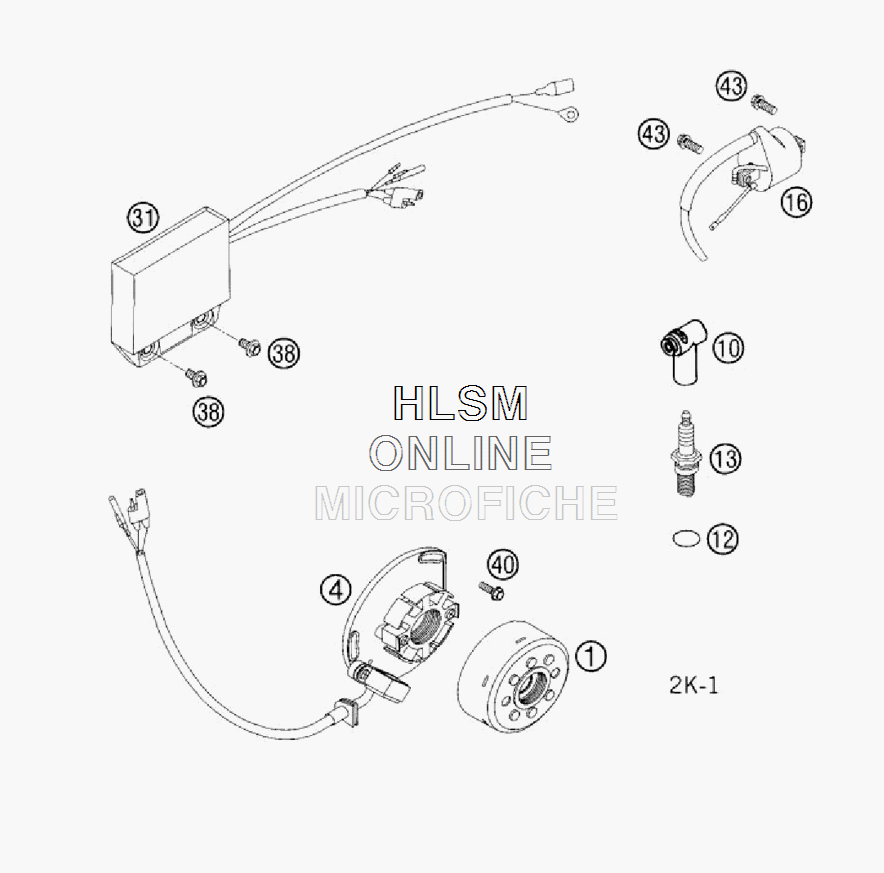

IGNITION SYSTEM 2K-1 для Ktm 125 SX TYLA RATTRAY - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    54739005000 FLYWHEEL KOKUSAN 2K-1/2K-4
    FLYWHEEL KOKUSAN 2K-1/2K-4
  • 4
    50339004000 STATOR KOKUSAN 2K-1
    STATOR KOKUSAN 2K-1
  • 10
    47039090000 SPARK PLUG CAP NGK REINFORC.
    SPARK PLUG CAP NGK REINFORC.
  • 12
    0770150040 O-RING 15,00X4,00 NBR 70
    O-RING 15,00X4,00 NBR 70
  • 13
    50339093100 SPARK PLUG NGK BR 9EVX
    SPARK PLUG NGK BR 9EVX
  • 16
    50339006000 IGNLCOIL KOKU.3834
    IGNLCOIL KOKU.3834
  • 31
    50339031400 CDI UNIT CU7442
    CDI UNIT CU7442
  • 38
    0014060103 HH COLLAR SCREW M 6X10 WS=8
    HH COLLAR SCREW M 6X10 WS=8
  • 40
    0015050163 HH COLLAR SCREW M 5X16 WS=8
    HH COLLAR SCREW M 5X16 WS=8
  • 43
    0015060163 HH COLLAR SCREW M6X16 WS=8
    HH COLLAR SCREW M6X16 WS=8
